LCAF2 Series

Catalog

LUG TERMINAL, 45°, PAN-LUG LCAF-H SERIES, CRIMP, 2 AWG, COMPRESSION LUG, M6

Part	Terminal Style	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Terminal Type	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Material	Wire Gauge	Tab Thickness	Tab Thickness	Color	Mounting Type	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges	Contact Finish	Insulation	Termination	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge	Length - Overall [x]	Length - Overall [x]	Diameter - Ring ID [diameter]

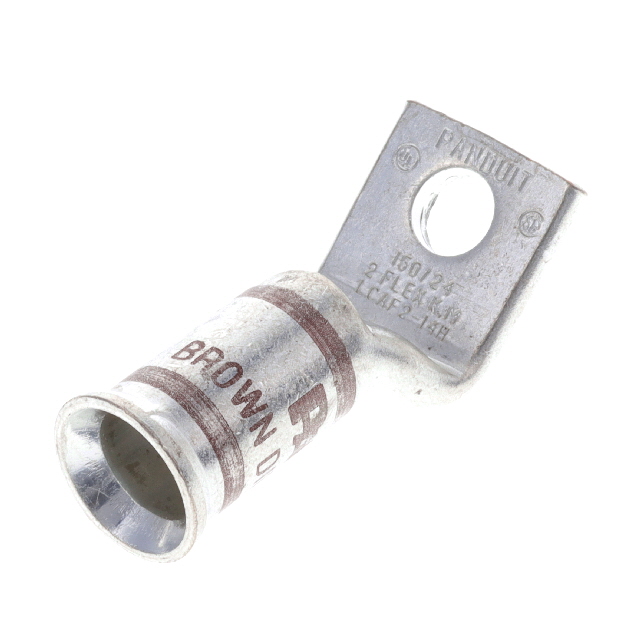

Panduit Corp LCAF2-14H-E	Single Stud Hole	6.86 mm	0.27 "	0.36 in	9.14 mm	Rectangular Tongue	13.97 mm	0.55 in	Copper	2 AWG	0.11 in	2.79 mm	Brown	45° Angle Free Hanging (In-Line)	0.25 Stud	0.79 in	20.07 mm	Electro-Tin	Non-Insulated	Barrel Crimp

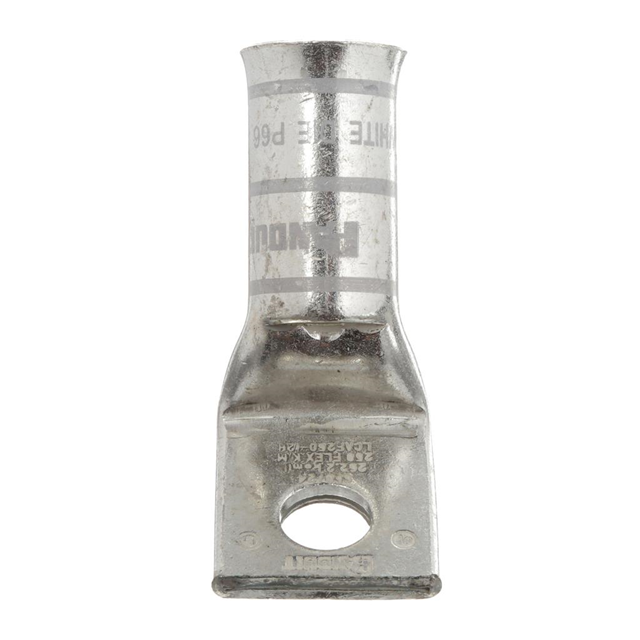

Panduit Corp LCAF250-38H-X	Single Stud Hole	10.41 mm	0.41 "	0.7 in	17.78 mm	Rectangular Tongue	25.91 mm	1.02 in	Copper	250 MCM	0.17 "	4.32 mm	White	45° Angle Free Hanging (In-Line)				Electro-Tin	Non-Insulated	Barrel Crimp	3/8 Stud	32.51 mm	1.28 in	250 kcmil
Panduit Corp LCAF2-38-E	Single Stud Hole	10.41 mm	0.41 "	0.36 in	9.14 mm	Rectangular Tongue	13.97 mm	0.55 in	Copper	2 AWG	0.11 in	2.79 mm	Brown	Free Hanging (In-Line)		0.79 in	20.07 mm	Electro-Tin	Non-Insulated	Barrel Crimp	3/8 Stud				50.55 mm	1.99 in
Panduit Corp LCAF250-12H-X	Single Stud Hole	0.53 in		0.7 in	17.78 mm	Rectangular Tongue	25.91 mm	1.02 in	Copper	250 MCM	0.17 "	4.32 mm	White	45° Angle Free Hanging (In-Line)				Electro-Tin	Non-Insulated	Barrel Crimp	1/2 Stud	32.51 mm	1.28 in	250 kcmil			13.46 mm

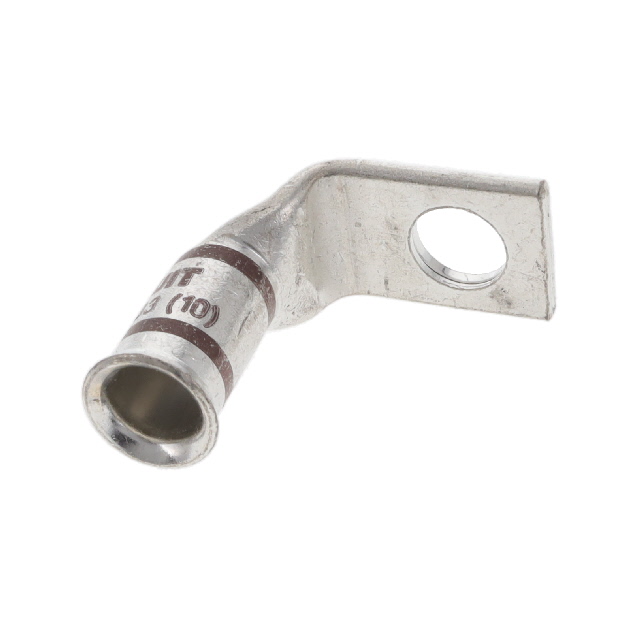

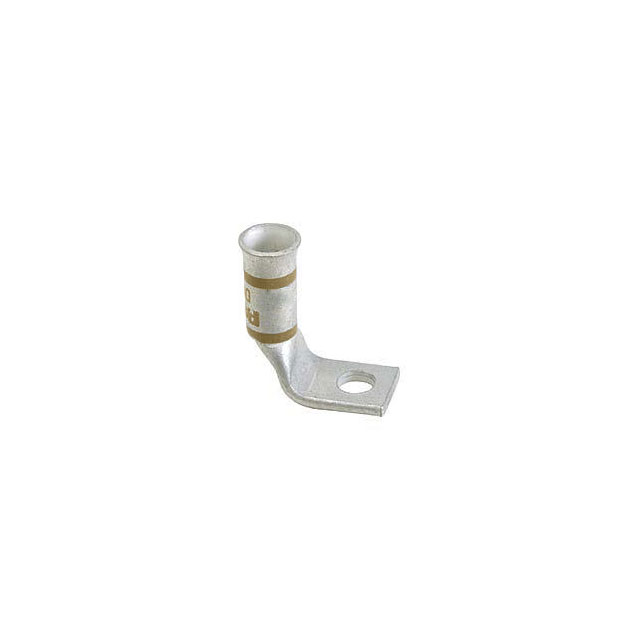

Panduit Corp LCAF2-38F-E	Single Stud Hole	10.41 mm	0.41 "	0.36 in	9.14 mm	Rectangular Tongue	13.97 mm	0.55 in	Copper	2 AWG	0.11 in	2.79 mm	Brown	Free Hanging (In-Line) Right Angle		0.79 in	20.07 mm	Electro-Tin	Non-Insulated	Barrel Crimp	3/8 Stud

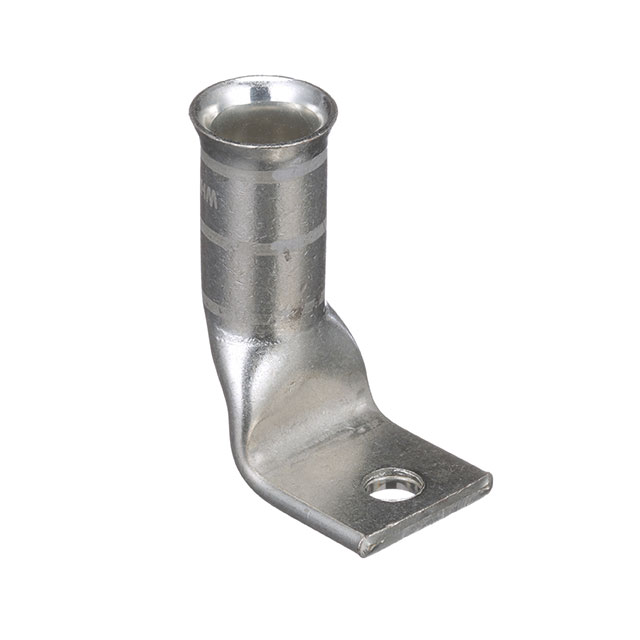

Panduit Corp LCAF250-38F-X	Single Stud Hole	10.41 mm	0.41 "	0.7 in	17.78 mm	Rectangular Tongue	25.91 mm	1.02 in	Copper	250 MCM	0.17 "	4.32 mm	White	Free Hanging (In-Line) Right Angle				Electro-Tin	Non-Insulated	Barrel Crimp	3/8 Stud	32.51 mm	1.28 in	250 kcmil

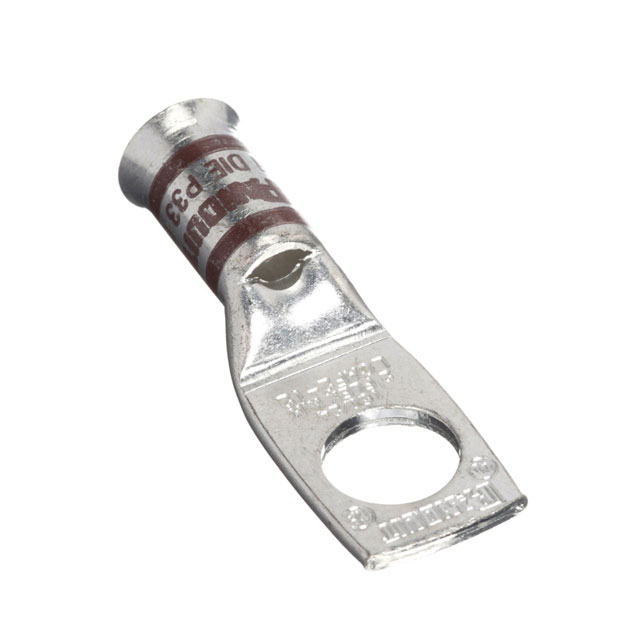

Panduit Corp LCAF2-12-E	Single Stud Hole	0.53 in		0.36 in	9.14 mm	Rectangular Tongue	13.97 mm	0.55 in	Copper	2 AWG	0.09 in	2.29 mm	Brown	Free Hanging (In-Line)		0.79 in	20.07 mm	Electro-Tin	Non-Insulated	Barrel Crimp	1/2 Stud				56.64 mm	2.23 in	13.46 mm

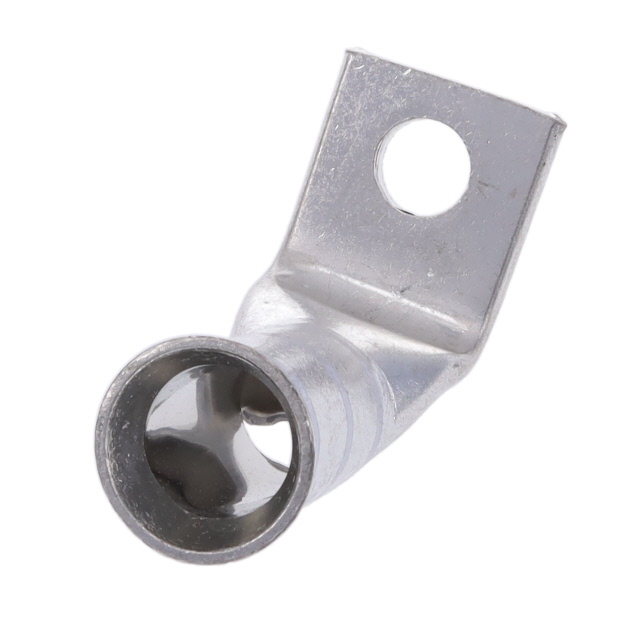

Panduit Corp LCAF2-14F-E	Single Stud Hole	6.86 mm	0.27 "	0.36 in	9.14 mm	Rectangular Tongue	13.97 mm	0.55 in	Copper	2 AWG	0.11 in	2.79 mm	Brown	Free Hanging (In-Line) Right Angle	0.25 Stud	0.79 in	20.07 mm	Electro-Tin	Non-Insulated	Barrel Crimp

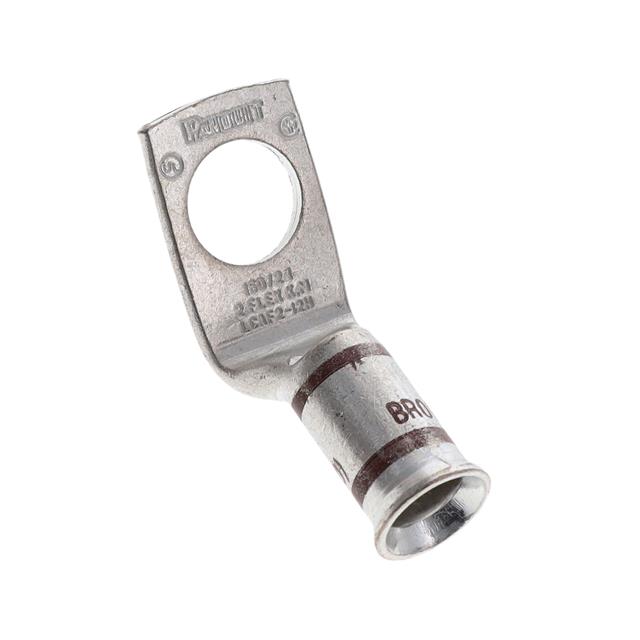

Panduit Corp LCAF2-12H-E	Single Stud Hole	0.53 in		0.36 in	9.14 mm	Rectangular Tongue	13.97 mm	0.55 in	Copper	2 AWG	0.09 in	2.29 mm	Brown	45° Angle Free Hanging (In-Line)		0.79 in	20.07 mm	Electro-Tin	Non-Insulated	Barrel Crimp	1/2 Stud						13.46 mm
