IL-G-13P Series
Manufacturer: JAE Electronics
Beta
⌘K

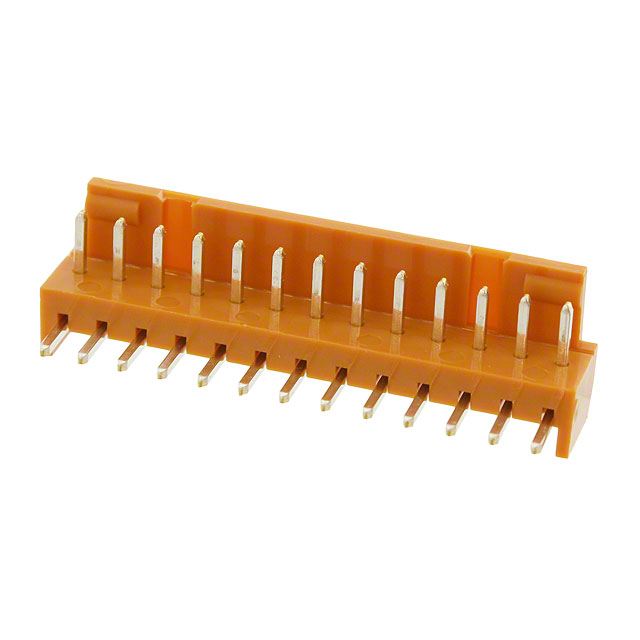

CONN HEADER R/A 13POS 2.5MM
| Part | Contact Shape | Mounting Type | Contact Finish - Post | Current Rating (Amps) | Fastening Type | Style | Contact Length - Mating | Contact Length - Mating | Contact Type | Termination | Shrouding | Number of Rows | Insulation Color | Number of Positions | Insulation Material | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Insulation Height [custom] | Insulation Height [custom] | Connector Type | Contact Material | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Square | Right Angle Through Hole | Tin | 3 A | Friction Lock | Board to Cable/Wire | 4 mm | 0.157 in | Male Pin | Solder | Shrouded - 1 Wall | 1 | Brown | 13 | Nylon 6/6 Polyamide (PA66) | 0.138 in | 3.5 mm | UL94 V-0 | 0.236 " | 6 mm | Header | Brass | All | 85 °C | -40 C | 2.5 mm | 0.098 in |
