PPTC031 Series

Catalog

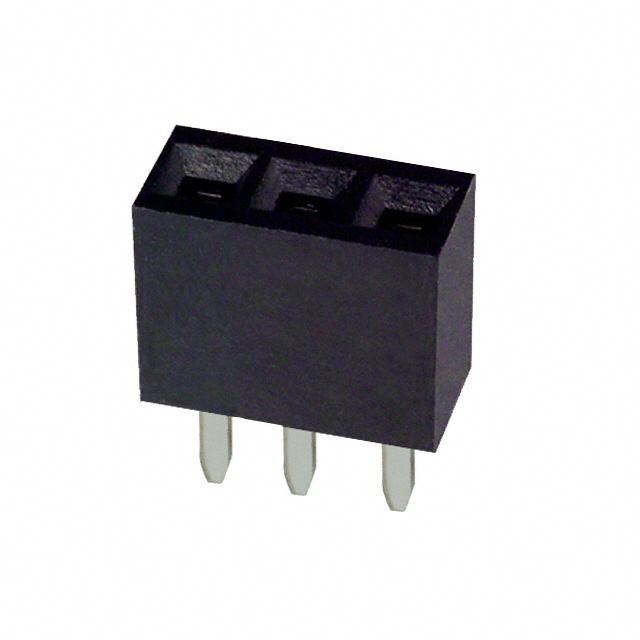

CONN HDR 3POS 0.1 TIN PCB

Part	Insulation Material	Contact Shape	Contact Material	Number of Positions Loaded	Contact Type	Fastening Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish - Post	Number of Rows	Mounting Type	Material Flammability Rating	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)
Sullins Connector Solutions PPTC031LFBN-RC	Polyester	Square	Phosphor Bronze	All	Female Socket	Push-Pull	0.335 "	8.51 mm	0.1 "	2.54 mm	Header	Black	-40 C	105 ░C	Solder	Tin	1	Through Hole	UL94 V-0	250 V	0.126 "	3.2 mm	3 A
Sullins Connector Solutions PPTC031LFBN	Polyester	Square	Phosphor Bronze	All	Female Socket	Push-Pull	0.335 "	8.51 mm	0.1 "	2.54 mm	Header	Black	-40 C	105 ░C	Solder	Tin	1	Through Hole	UL94 V-0	250 V	0.126 "	3.2 mm	3 A
