ERN.2S Series
Manufacturer: LEMO
Beta
⌘K
CONN CIRC RCPT 6P GOLD SLDR CUP
| Part | Shielding | Mounting Feature | Number of Positions | Color | Contact Material | Material Flammability Rating | Contact Finish - Mating | Primary Material | Mounting Type | Fastening Type | Insert Material | Ingress Protection | Current Rating (Amps) | Connector Type | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Features | Shell Size - Insert | Shell Material | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Shielded | Bulkhead - Rear Side Nut | 6 | Beige | Brass Bronze | UL94 V-0 | Gold | Plastic | Panel Mount | Push-Pull | Polyetheretherketone (PEEK) | IP50 - Dust Protected | 12 Amps | Receptacle Female Sockets and Male Pins | Keyed | 250 °C | -50 °C | Ground | 306 | ||
 LEMO | Shielded | Bulkhead - Rear Side Nut | 2 | Silver | Brass Bronze | UL94 V-0 | Gold | Metal | Panel Mount | Push-Pull | Polyetheretherketone (PEEK) | IP50 - Dust Protected | 20 A | Receptacle Female Sockets and Male Pins | Keyed | 250 °C | -55 C | Ground | 302 | Brass | Chrome |

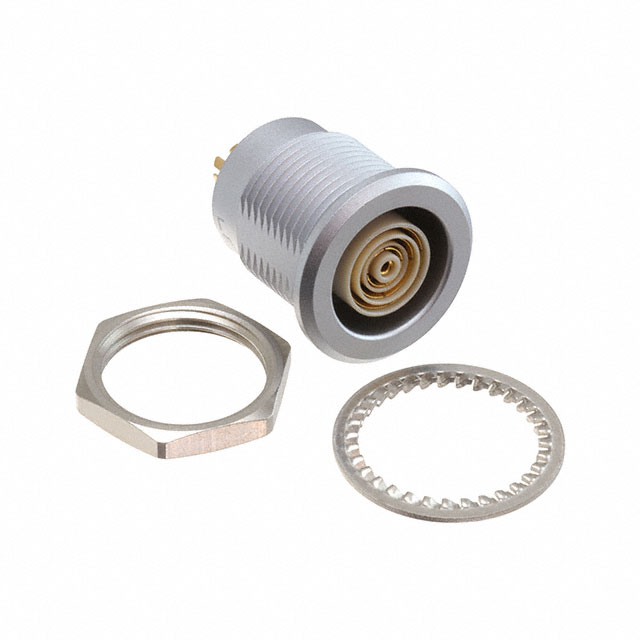

 LEMO | Shielded | Bulkhead - Rear Side Nut | 5 | Silver | UL94 V-0 | Gold | Metal | Panel Mount | Push-Pull | Polyetheretherketone (PEEK) | IP50 - Dust Protected | 6 A | Receptacle Female Sockets and Male Pins | Keyed | 250 °C | -55 C | Ground | 695 | Brass | Chrome |
