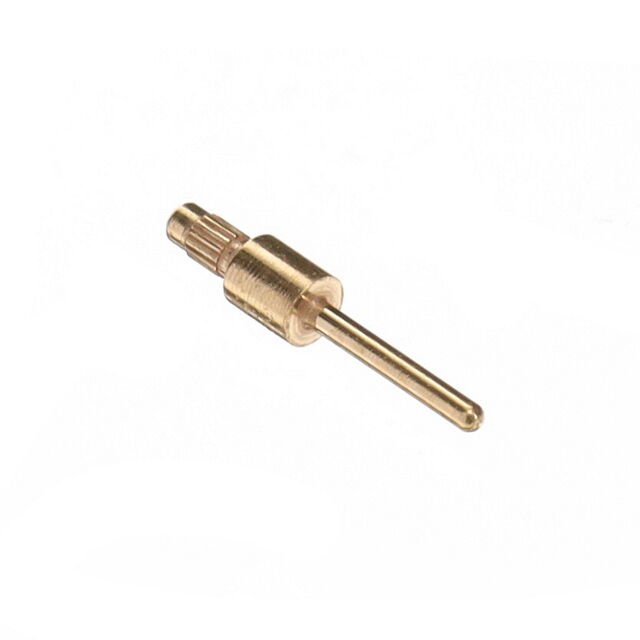

5155-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
SKT PGA SOLDRTL
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Termination | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Finish | Terminal Type | Length - Overall [x] | Length - Overall [x] | Contact Finish Thickness | Contact Finish Thickness | Insulation | Terminal Style | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.045 in | 1.14 mm | 0.13 " | 3.3 mm | Knurled Press-Fit | 0.46 mm | 0.018 in | Through Hole | 0.64 mm | 0.025 in | Gold | PC Pin | 0.24 in | 6.1 mm | 20 µin | 0.51 µm | Non-Insulated | Single End | 0.66 mm | 0.026 in | 0.06 in | 1.52 mm | Brass Alloy |
 Mill-Max Manufacturing Corp. | 0.045 in | 1.14 mm | 0.13 " | 3.3 mm | Knurled Press-Fit | 0.46 mm | 0.018 in | Through Hole | 0.64 mm | 0.025 in | Gold | PC Pin | 0.24 in | 6.1 mm | 10 Áin | 0.25 Ám | Non-Insulated | Single End | 0.66 mm | 0.026 in | 0.06 in | 1.52 mm | Brass Alloy |
