EX-Z11 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

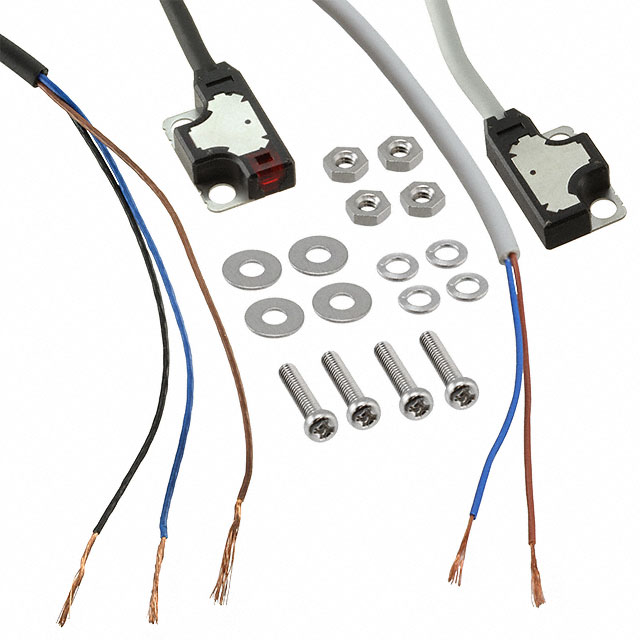

SENSOR THROUGH-BEAM 50MM PNP

Part	Sensing Distance	Sensing Distance	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Adjustment Type	Cable Length	Cable Length	Response Time	Light Source	Sensing Method	Connection Method	Output Configuration	Voltage - Supply [Min]	Voltage - Supply [Max]	Ingress Protection
Panasonic Industrial Automation Sales EX-Z11FA-PR	50 mm	1.969 in	55 °C	-10 °C	Fixed	78.74 in	2 m	500 µs	Red LED	Through-Beam	Cable	PNP - Open Collector/Light-ON	12 V	24 V	IP67
Panasonic Industrial Automation Sales EX-Z11FA-P	50 mm	1.969 in	55 °C	-10 °C	Fixed	78.74 in	2 m	500 µs	Red LED	Through-Beam	Cable	PNP - Open Collector/Light-ON	12 V	24 V	IP67
Panasonic Industrial Automation Sales EX-Z11FB-PR	50 mm	1.969 in	55 °C	-10 °C	Fixed	78.74 in	2 m	500 µs	Red LED	Through-Beam	Cable	PNP - Open Collector/Dark-ON	12 V	24 V	IP67
Panasonic Industrial Automation Sales EX-Z11FBR	50 mm	1.969 in	55 °C	-10 °C	Fixed	78.74 in	2 m	500 µs	Red LED	Through-Beam	Cable	NPN - Open Collector/Dark-ON	12 V	24 V	IP67
Panasonic Industrial Automation Sales EX-Z11B-PR	50 mm	1.969 in	55 °C	-10 °C	Fixed	78.74 in	2 m	500 µs	Red LED	Through-Beam	Cable	PNP - Open Collector/Dark-ON	12 V	24 V	IP67
Panasonic Industrial Automation Sales EX-Z11FB-P	50 mm	1.969 in	55 °C	-10 °C	Fixed	78.74 in	2 m	500 µs	Red LED	Through-Beam	Cable	PNP - Open Collector/Dark-ON	12 V	24 V	IP67
Panasonic Industrial Automation Sales EX-Z11A-PR	50 mm	1.969 in	55 °C	-10 °C	Fixed	78.74 in	2 m	500 µs	Red LED	Through-Beam	Cable	PNP - Open Collector/Light-ON	12 V	24 V	IP67
Panasonic Industrial Automation Sales EX-Z11B-P	50 mm	1.969 in	55 °C	-10 °C	Fixed	78.74 in	2 m	500 µs	Red LED	Through-Beam	Cable	PNP - Open Collector/Dark-ON	12 V	24 V	IP67
Panasonic Industrial Automation Sales EX-Z11FAR	50 mm	1.969 in	55 °C	-10 °C	Fixed	78.74 in	2 m	500 µs	Red LED	Through-Beam	Cable	NPN - Open Collector/Light-ON	12 V	24 V	IP67
Panasonic Industrial Automation Sales EX-Z11FA	50 mm	1.969 in	55 °C	-10 °C	Fixed	78.74 in	2 m	500 µs	Red LED	Through-Beam	Cable	NPN - Open Collector/Light-ON	12 V	24 V	IP67
