RPS-300 Series

Catalog

AC/DC CONVERTER 48V 200W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Type	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Power (Watts)	Approval Agency	Applications	Voltage - Isolation	Features	Voltage - Output 1	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Size / Dimension [z]	Size / Dimension [y]

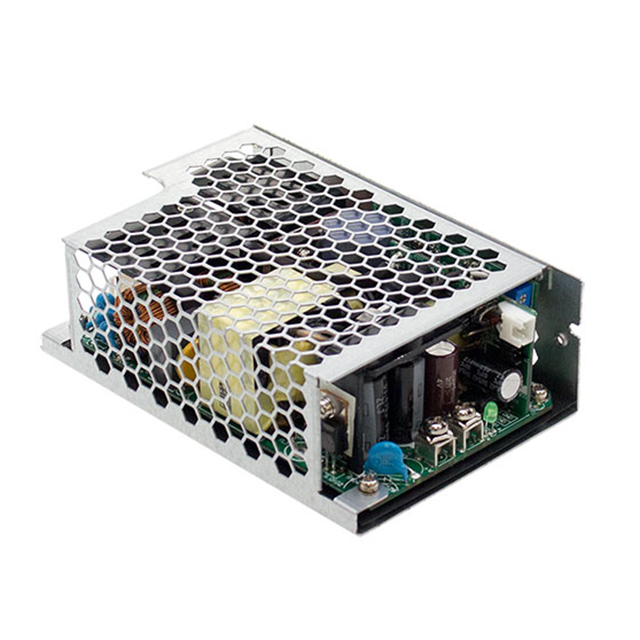

MEAN WELL USA Inc. RPS-300-48-C	264 VAC 370 VDC	90 VAC 127 VDC	Enclosed	93 %	-30 °C	70 °C	4.17 A	200 Watts 300 W	CB CE cURus TUV	Medical	4000 V	Adjustable Output Remote Sense Standby Output Universal Input	48 V	1	129.8 mm	42.9 mm	1.69 in	86.1 mm	5.11 "	3.39 "	Chassis Mount
MEAN WELL USA Inc. RPS-300-12-C	264 VAC 370 VDC	90 VAC 127 VDC	Enclosed	90 %	-30 °C	70 °C	16.67 A	200 Watts 300 W	CB CE cURus TUV	Medical	4000 V	Adjustable Output Remote Sense Standby Output Universal Input	12 V	1	129.8 mm	42.9 mm	1.69 in	86.1 mm	5.11 "	3.39 "	Chassis Mount

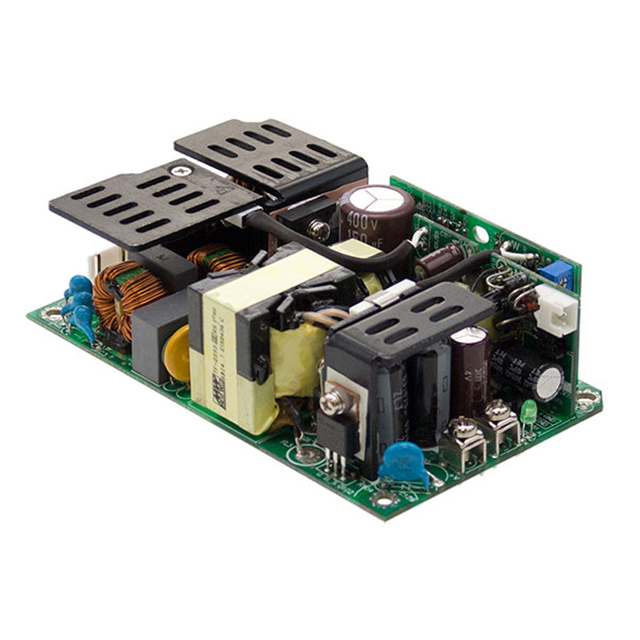

MEAN WELL USA Inc. RPS-300-12	264 VAC 370 VDC	90 VAC 127 VDC	Open Frame	90 %	-30 °C	70 °C	16.67 A	200 Watts 300 W	CB CE cURus TUV	Medical	4000 V	Adjustable Output Remote Sense Standby Output Universal Input	12 V	1	127 mm		1.37 in		5 "	3 "	Chassis Mount	34.8 mm	76.2 mm
MEAN WELL USA Inc. RPS-300-48	264 VAC 370 VDC	90 VAC 127 VDC	Open Frame	93 %	-30 °C	70 °C	4.17 A	200 Watts 300 W	CB CE cURus TUV	Medical	4000 V	Adjustable Output Remote Sense Standby Output Universal Input	48 V	1	127 mm		1.37 in		5 "	3 "	Chassis Mount	34.8 mm	76.2 mm
MEAN WELL USA Inc. RPS-300-15-C	264 VAC 370 VDC	90 VAC 127 VDC	Enclosed	90 %	-30 °C	70 °C	13.33 A	200 Watts 300 W	CB CE cURus TUV	Medical	4000 V	Adjustable Output Remote Sense Standby Output Universal Input	15 V	1	129.8 mm	42.9 mm	1.69 in	86.1 mm	5.11 "	3.39 "	Chassis Mount
MEAN WELL USA Inc. RPS-300-15	264 VAC 370 VDC	90 VAC 127 VDC	Open Frame	90 %	-30 °C	70 °C	13.33 A	200 Watts 300 W	CB CE cURus TUV	Medical	4000 V	Adjustable Output Remote Sense Standby Output Universal Input	15 V	1	127 mm		1.37 in		5 "	3 "	Chassis Mount	34.8 mm	76.2 mm
MEAN WELL USA Inc. RPS-300-24-C	264 VAC 370 VDC	90 VAC 127 VDC	Enclosed	92.5 %	-30 °C	70 °C	8.33 A	200 Watts 300 W	CB CE cURus TUV	Medical	4000 V	Adjustable Output Remote Sense Standby Output Universal Input	24 V	1	129.8 mm	42.9 mm	1.69 in	86.1 mm	5.11 "	3.39 "	Chassis Mount
