282526 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

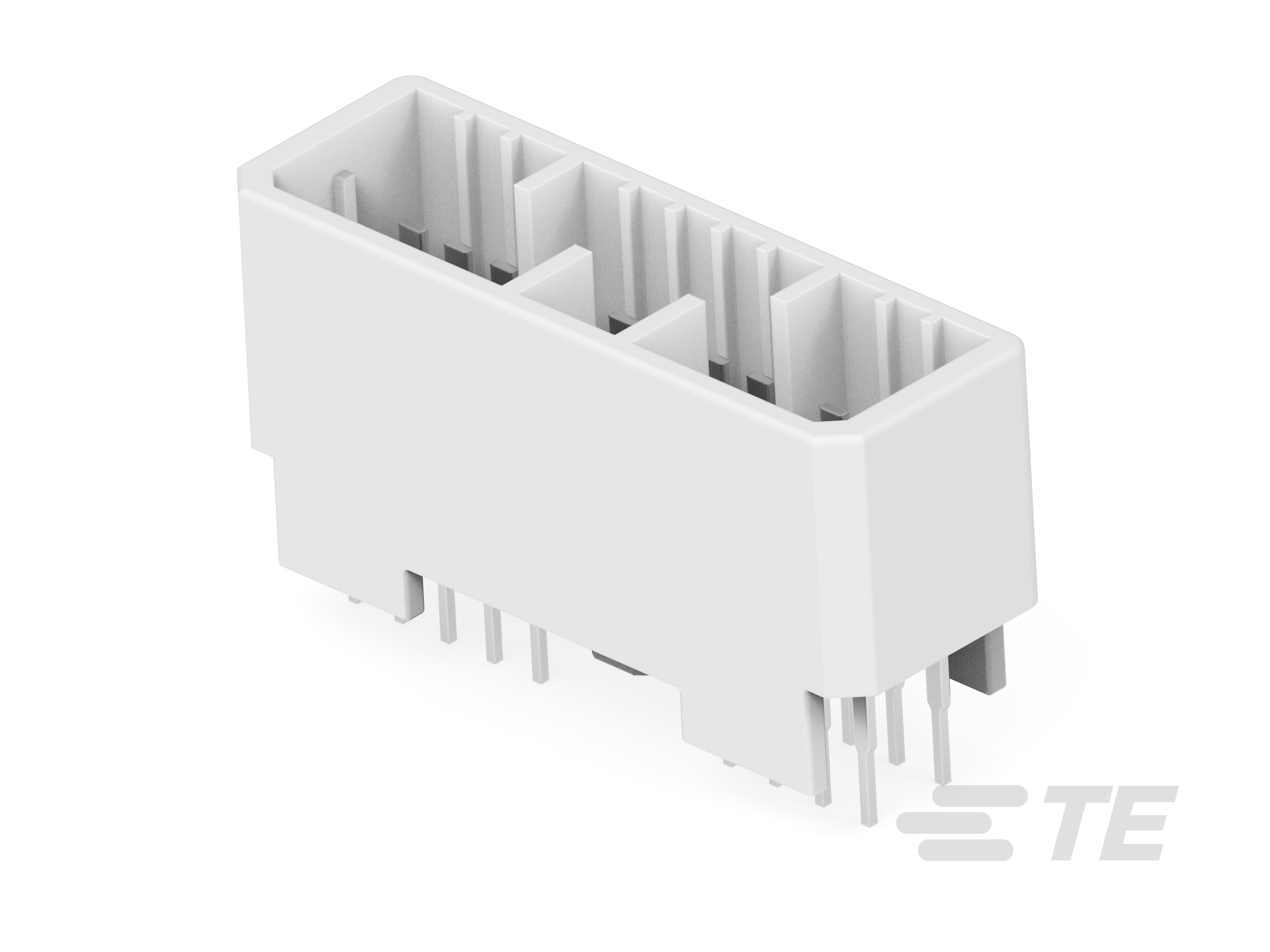

20P 070 MLK CAP HEAD ASSY
| Part | Termination | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Shrouding | Contact Finish - Post | Contact Shape | Number of Rows | Insulation Material | Current Rating (Amps) | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Features | Style | Number of Positions Loaded | Applications | Insulation Height | Insulation Height | Contact Material | Fastening Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Solder | Through Hole | 5.9 mm | 0.232 " | 20 | Shrouded - 4 Wall | Tin | Rectangular | 2 | Polybutylene Terephthalate (PBT) Glass Filled | Varies by Wire Gauge | White | 0.138 in | 3.5 mm | 0.169 in | 4.3 mm | Mounting Brackets | Board to Cable/Wire | All | Automotive General Purpose | 23.5 mm | 0.925 in | Brass | Locking Ramp | Tab |
