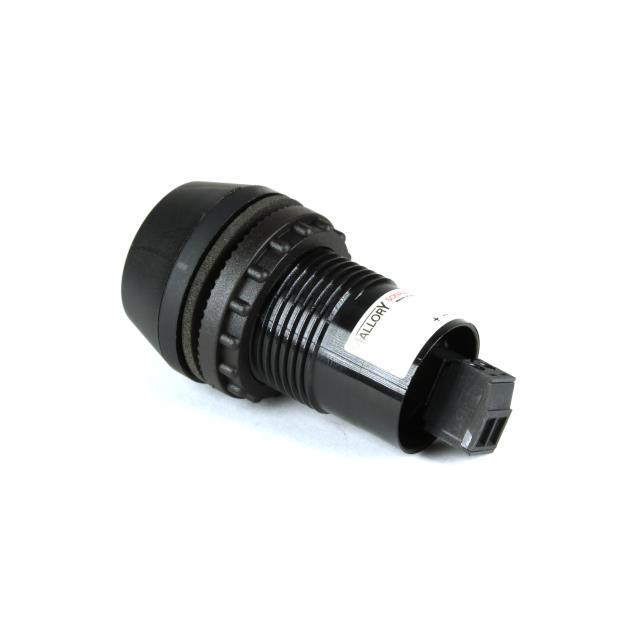

ZA Series
Piezo Buzzers & Audio Indicators 16 to 28 VAC/DC 3300 +/- 500 Hz
Manufacturer: Mallory Sonalert Products Inc.
Catalog
Piezo Buzzers & Audio Indicators 16 to 28 VAC/DC 3300 +/- 500 Hz
Beta
⌘K
Piezo Buzzers & Audio Indicators 16 to 28 VAC/DC 3300 +/- 500 Hz
Piezo Buzzers & Audio Indicators 16 to 28 VAC/DC 3300 +/- 500 Hz
Piezo Buzzers & Audio Indicators 16 to 28 VAC/DC 3300 +/- 500 Hz
| Part | Approval Agency | Ingress Protection | Port Location | Voltage Range [Min] | Voltage Range [Max] | Current - Supply | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Mode | Mounting Type | Driver Circuitry | Technology | Sound Pressure Level (SPL) | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Frequency | Termination | Duration | Duration | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mallory Sonalert Products Inc. | cUL | NEMA 12 NEMA 3R NEMA 4X | Top | 16 VDC | 28 V | 40 mA | 1.21 in | 30.74 mm | Single Tone | Panel Mount | Indicator Internally Driven | Piezo | 65 dB | -30 ░C | 65 °C | 56.75 mm | 2.234 in | 3.9 kHz | Terminal Block | |||
 Mallory Sonalert Products Inc. | cUL UL | NEMA 12 NEMA 3R NEMA 4X | Top | 16 VDC | 28 V | 40 mA | 1.21 in | 30.74 mm | Slow Warble | Panel Mount | Indicator Internally Driven | Piezo | 75 dB | -30 ░C | 65 °C | 56.75 mm | 2.234 in | 3.3 kHz | Terminal Block | 1.5 WPS | ||
 Mallory Sonalert Products Inc. | cUL UL | NEMA 12 NEMA 3R NEMA 4X | Top | 48 V | 120 V | 40 mA | 1.21 in | 30.74 mm | Chime | Panel Mount | Indicator Internally Driven | Piezo | 65 dB | -30 ░C | 65 °C | 56.75 mm | 2.234 in | 3.3 kHz | Terminal Block | Repeating every 3 Sec | ||
Mallory Sonalert Products Inc. | cUL UL | NEMA 12 NEMA 3R NEMA 4X | Top | 6 VDC | 16 V | 40 mA | 1.21 in | 30.74 mm | Double Pulse Slow | Panel Mount | Indicator Internally Driven | Piezo | 65 dB | -30 ░C | 65 °C | 56.75 mm | 2.234 in | 3.3 kHz | Terminal Block | 0.5 PPS | DC | |
Mallory Sonalert Products Inc. | cUL UL | NEMA 12 NEMA 3R NEMA 4X | Top | 6 VDC | 16 V | 40 mA | 1.21 in | 30.74 mm | Single Tone | Panel Mount | Indicator Internally Driven | Piezo | 65 dB | -30 ░C | 65 °C | 56.75 mm | 2.234 in | 3.3 kHz | Terminal Block | 10 Sec | DC | |
 Mallory Sonalert Products Inc. | cUL UL | Top | 6 VDC | 16 V | 40 mA | 1.21 in | 30.74 mm | Pin Selectable | Panel Mount | Indicator Internally Driven | Piezo | 65 dB | -30 ░C | 65 °C | 56.75 mm | 2.234 in | 3.375 kHz | Terminal Block | Variable | DC | ||
Mallory Sonalert Products Inc. | cUL UL | NEMA 12 NEMA 3R NEMA 4X | Top | 48 V | 120 V | 40 mA | 1.21 in | 30.74 mm | Siren Slow | Panel Mount | Indicator Internally Driven | Piezo | 75 dB | -30 ░C | 65 °C | 56.75 mm | 2.234 in | 3.3 kHz | Terminal Block | 2 PPS | ||
Mallory Sonalert Products Inc. | cUL UL | Top | 6 VDC | 16 V | 40 mA | 1.21 in | 30.74 mm | Pin Selectable | Panel Mount | Indicator Internally Driven | Piezo | 85 dB | -30 ░C | 65 °C | 56.75 mm | 2.234 in | 3.1 kHz | Terminal Block | Variable | DC | ||
Mallory Sonalert Products Inc. | cUL UL | Top | 6 VDC | 16 V | 40 mA | 1.21 in | 30.74 mm | Pin Selectable | Panel Mount | Indicator Internally Driven | Piezo | 65 dB | -30 ░C | 65 °C | 56.75 mm | 2.234 in | 3.375 kHz | Terminal Block | Variable | DC | ||
Mallory Sonalert Products Inc. | cUL UL | NEMA 12 NEMA 3R NEMA 4X | Top | 48 V | 120 V | 40 mA | 1.21 in | 30.74 mm | Chime | Panel Mount | Indicator Internally Driven | Piezo | 75 dB | -30 ░C | 65 °C | 56.75 mm | 2.234 in | 3.3 kHz | Terminal Block | Repeating every 3 Sec |
