7403WS Series
Manufacturer: Belden Inc.
Beta
⌘K

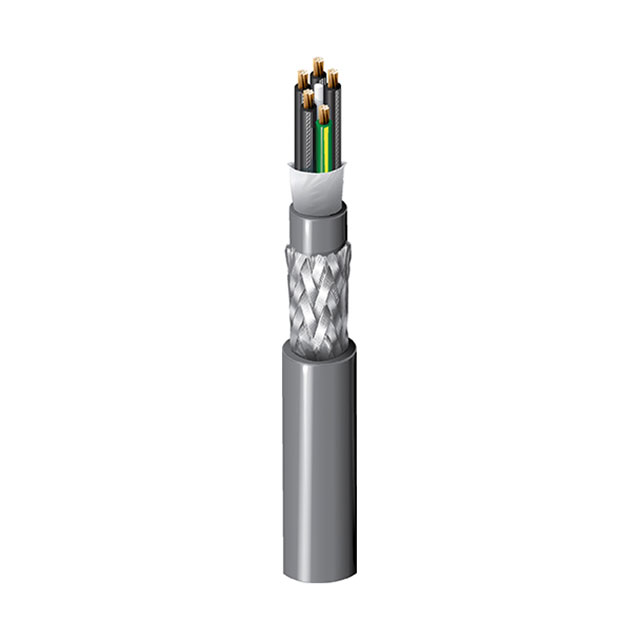

CABLE 5COND 20AWG CHRM SHD
| Part | Shield Coverage | Shield Material | Number of Conductors | Wire Gauge | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Length | Length | Conductor Insulation | Ratings | Conductor Material | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Voltage | Features | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % | Copper Tinned | 5 | 20 AWG | Multi-Conductor | 8.61 mm | 0.339 in | Thermoplastic Elastomer (TPE) | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | UL Style 20327 | Copper Bare | Braid | 0.042 in | 1.067 mm | Chrome | 300 VDC | Oil Resistant UV Resistant | 19 | 32 AWG |
Belden Inc. | 85 % | Copper Tinned | 5 | 20 AWG | Multi-Conductor | 8.61 mm | 0.339 in | Thermoplastic Elastomer (TPE) | 76.2 m | 250 ft | Poly-Vinyl Chloride (PVC) | UL Style 20327 | Copper Bare | Braid | 0.042 in | 1.067 mm | Chrome | 300 VDC | Oil Resistant UV Resistant | 19 | 32 AWG |
Belden Inc. | 85 % | Copper Tinned | 5 | 20 AWG | Multi-Conductor | 8.61 mm | 0.339 in | Thermoplastic Elastomer (TPE) | Poly-Vinyl Chloride (PVC) | UL Style 20327 | Copper Bare | Braid | 0.042 in | 1.067 mm | Chrome | 300 VDC | Oil Resistant UV Resistant | 19 | 32 AWG |
