PT06J Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG MALE 5P GOLD SLDR CUP

Part	Contact Material	Insert Material	Backshell Material, Plating	Applications	Qualification	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Features	Contact Finish - Mating	Shell Material	Color	Orientation	Shielding	Termination	Shell Finish	Number of Positions	Primary Material	Shell Size - Insert Width	Shell Size - Insert Length	Fastening Type	Mounting Type	Backshell Material	Plating	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Current Rating	Voltage Rating
Amphenol Aerospace Operations PT06J-10-5P	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	125 °C	-55 °C	Male Pins Plug	Backshell Cable Clamp Coupling Nut	Gold	Aluminum	Olive Drab	N (Normal)	Unshielded	Solder Cup	Cadmium Olive Drab Chromate	5	Metal	5 mm	10 mm	Bayonet Lock	Free Hanging (In-Line)
Amphenol Aerospace Operations PT06J14-5S-023	Copper Alloy	Neoprene		Aerospace Communication Systems Industrial Instrumentation Mass Transit	MIL-DTL-26482 Series I	125 °C	-55 °C	Female Sockets Plug		Gold	Aluminum	Silver	N (Normal)	Unshielded	Solder Cup	Electroless Nickel	5	Metal	5 mm	14 mm	Bayonet Lock	Free Hanging (In-Line)	Aluminum	Electroless Nickel
Amphenol Aerospace Operations PT06J14-15S	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit	MIL-DTL-26482 Series I	125 °C	-55 °C	Female Sockets Plug		Gold	Aluminum	Olive Drab	N (Normal)	Unshielded	Solder Cup	Cadmium Olive Drab Chromate	15	Metal			Bayonet Lock	Free Hanging (In-Line)			14 S	15
Amphenol Aerospace Operations PT06J12-10PX	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit	MIL-DTL-26482 Series I	125 °C	-55 °C	Male Pins Plug		Gold	Aluminum	Olive Drab	X	Unshielded	Solder Cup	Cadmium Olive Drab Chromate	10	Metal	10 mm	12 mm	Bayonet Lock	Free Hanging (In-Line)

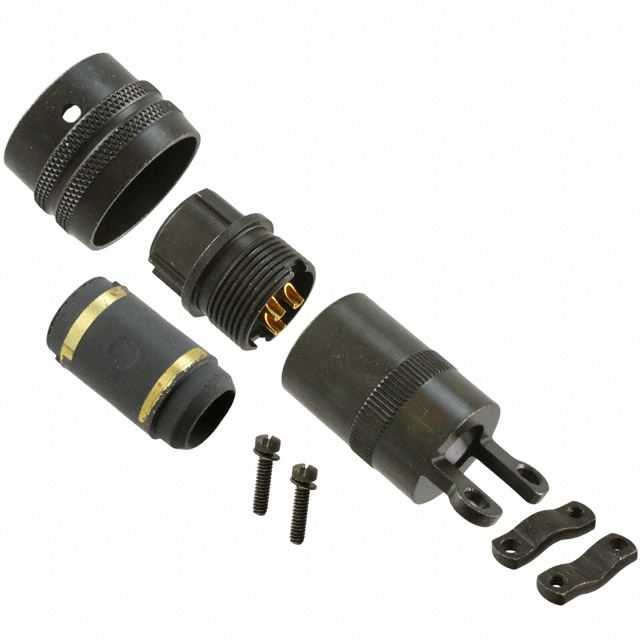

Amphenol Aerospace Operations PT06J-12-3S	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	125 °C	-55 °C	Female Sockets Plug	Strain Relief	Gold	Aluminum	Olive Drab	N (Normal)	Unshielded	Solder Cup	Cadmium Olive Drab Chromate	3	Metal	3 mm	12 mm	Bayonet Lock	Free Hanging (In-Line)					13 A	1000 V
Amphenol Aerospace Operations PT06J-10-98P	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	125 °C	-55 °C	Male Pins Plug	Backshell Cable Clamp Coupling Nut	Gold	Aluminum	Olive Drab	N (Normal)	Unshielded	Solder Cup	Cadmium Olive Drab Chromate	6	Metal			Bayonet Lock	Free Hanging (In-Line)			10	98
