917726 Series

Catalog

2.5 S.D.L. P/HDR ASY 6P H/PRO.

Part	Mated Stacking Heights	Applications	Number of Positions Loaded	Termination	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Style	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish - Post	Insulation Color	Contact Shape	Connector Type	Mounting Type	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Current Rating (Amps)	Fastening Type	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Voltage Rating	Features	Contact Type

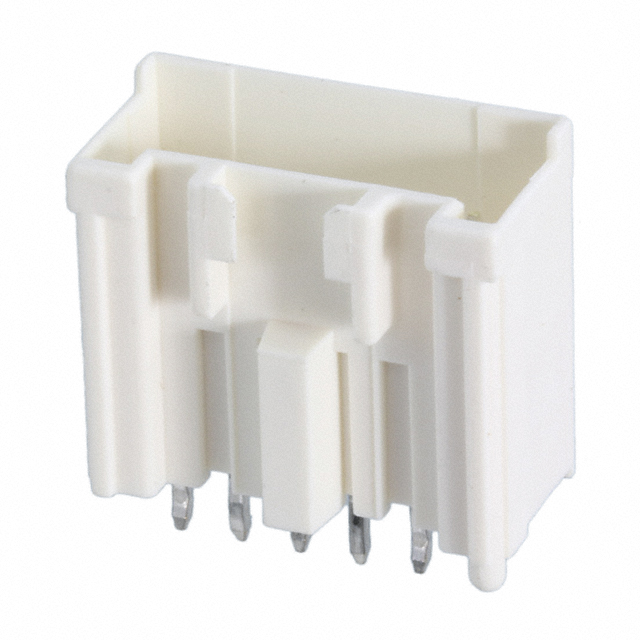

TE Connectivity AMP Connectors 917726-1	19.2 mm	General Purpose	All	Kinked Pin Solder	6	-30 ░C	105 ░C	0.626 in	15.9 mm	0.602 in	15.29 mm	Board to Cable/Wire	1	2.5 mm	0.098 in	Copper Alloy	Tin	Natural	Square	Header	Through Hole	4.7 mm	0.185 in	UL94 V-0	3 A	Latch Holder	Glass Filled Nylon 6/6 Polyamide (PA66)	0.126 "	3.2 mm	Shrouded - 4 Wall	50 V	Board Guide	Male Pin
