9AS3A Series

Catalog

ELECTROMECHNICAL POWER RELAYS, S

Part	Coil Resistance	Contact Form	Load - Max Switching	Switching Voltage	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Release Time	Must Operate Voltage	Termination Style	Termination Style	Must Release Voltage	Coil Type	Seal Rating	Contact Rating (Current)	Mounting Type	Operate Time	Contact Material	Relay Type	Approval Agency

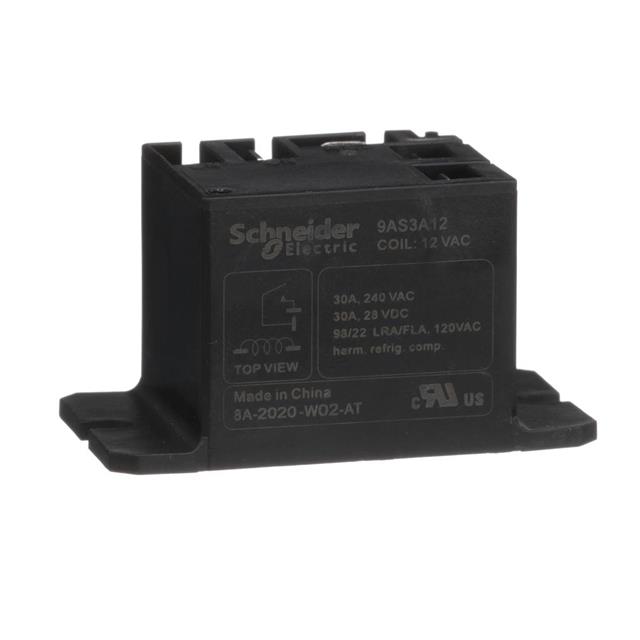

SCHNEIDER ELECTRIC 9AS3A12	25 Ohms	SPST-NO (1 Form A)	840 W 8310 VA	28 VDC 277 VAC	12 VAC	40 °C	-40 C	480 mA	10 ms	10.2 VAC	0.187 in 0.25 in	Quick Connect	2.4 VAC/DC	Non Latching	Sealed - Fully	30 A	Chassis Mount	20 ms	Silver Alloy	General Purpose	UL

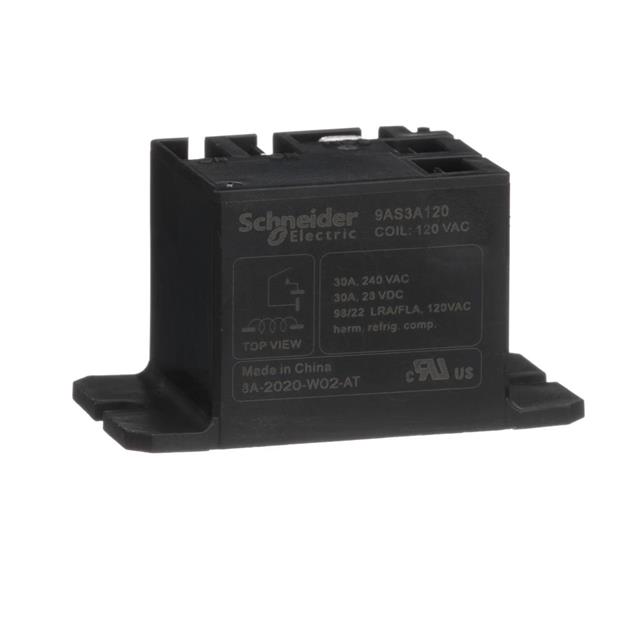

SCHNEIDER ELECTRIC 9AS3A120	2500 Ohms	SPST-NO (1 Form A)	840 W 8310 VA	28 VDC 277 VAC	120 VAC	40 °C	-40 C	48 mA	10 ms	102 VAC	0.187 in 0.25 in	Quick Connect	24 VAC	Non Latching	Sealed - Fully	30 A	Chassis Mount	20 ms	Silver Alloy	General Purpose	UL

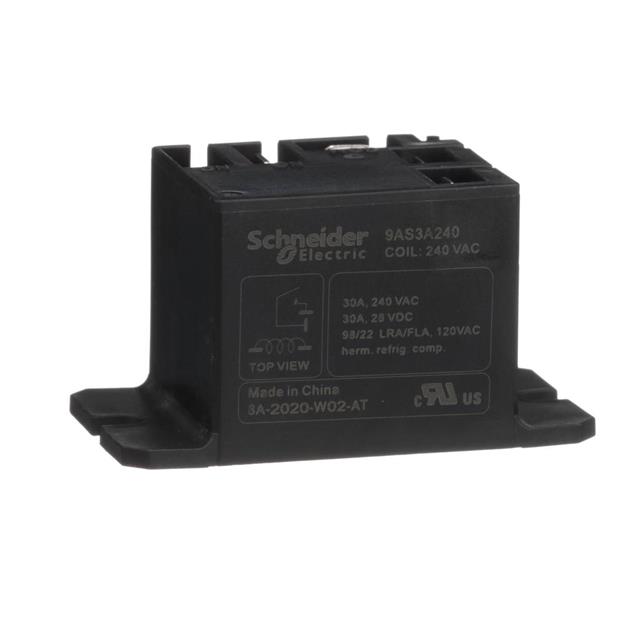

SCHNEIDER ELECTRIC 9AS3A240	13.49 kOhms	SPST-NO (1 Form A)	840 W 8310 VA	28 VDC 277 VAC	240 VAC/DC	40 °C	-40 C	17.8 mA	10 ms	204 VAC	0.187 in 0.25 in	Quick Connect	48 VAC	Non Latching	Sealed - Fully	30 A	Chassis Mount	20 ms	Silver Alloy	General Purpose	UL

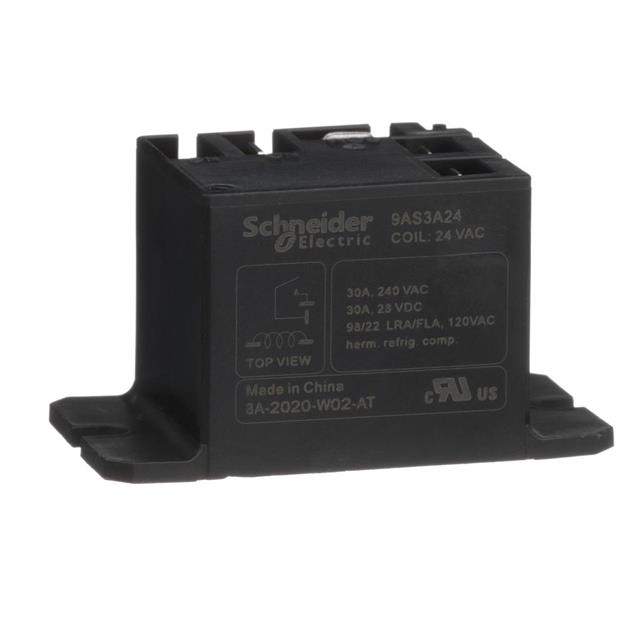

SCHNEIDER ELECTRIC 9AS3A24	100 Ohms	SPST-NO (1 Form A)	840 W 8310 VA	28 VDC 277 VAC	24 VAC	40 °C	-40 C	24 mA	10 ms		0.187 in 0.25 in	Quick Connect	4.8 VAC	Non Latching	Sealed - Fully	30 A	Chassis Mount	20 ms	Silver Alloy	General Purpose	UL
