P08 Series

Catalog

CONN PLUG 40POS SMD GOLD

Part	Mounting Type	Number of Positions	Height Above Board [z]	Height Above Board [z]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Number of Rows [custom]	Features	Pitch	Pitch	Connector Type
3M Electronic Specialty P08-040-PLC-A-G	Surface Mount	40	0.107 in	2.72 mm	Gold	0.203 çm	8 µin	3 mm 6 mm	2	Board Guide	0.8 mm	0.031 in
3M Electronic Specialty P08-020SLTC-A-G	Surface Mount	20	0.087 in	2.2 mm	Gold	0.203 çm	8 µin	3 mm 4 mm 5 mm	2	Board Guide	0.8 mm	0.031 in	Socket Outer Shroud Contacts
3M Electronic Specialty P08-100SL-B-G	Surface Mount	100	0.205 in	5.2 mm	Gold	0.203 çm	8 µin	6 mm 7 mm 8 mm	2	Board Guide	0.8 mm	0.031 in	Socket Outer Shroud Contacts
3M Electronic Specialty P08-030SLC-B-G	Surface Mount	30	0.205 in	5.2 mm	Gold	0.203 çm	8 µin	6 mm 7 mm 8 mm	2	Board Guide	0.8 mm	0.031 in	Socket Outer Shroud Contacts
3M Electronic Specialty P08-050HLTC-E-G	Surface Mount	50	0.329 in	8.35 mm	Gold	0.203 çm	8 µin	11.5 mm	2	Board Guide Solder Retention	0.8 mm	0.031 in	Self Mating Non-Gendered Hermaphroditic
3M Electronic Specialty P08-080SL-A-G	Surface Mount	80	0.087 in	2.2 mm	Gold	0.203 çm	8 µin	3 mm 4 mm 5 mm	2	Board Guide	0.8 mm	0.031 in	Socket Outer Shroud Contacts
3M Electronic Specialty P08-030PLTC-A-G	Surface Mount	30	0.107 in	2.72 mm	Gold	0.203 çm	8 µin	3 mm 6 mm	2	Board Guide	0.8 mm	0.031 in
3M Electronic Specialty P08-020SL-B-G	Surface Mount	20	0.205 in	5.2 mm	Gold	0.203 çm	8 µin	6 mm 7 mm 8 mm	2	Board Guide	0.8 mm	0.031 in	Socket Outer Shroud Contacts
3M Electronic Specialty P08-060SLC-B-G	Surface Mount	60	0.205 in	5.2 mm	Gold	0.203 çm	8 µin	6 mm 7 mm 8 mm	2	Board Guide	0.8 mm	0.031 in	Socket Outer Shroud Contacts

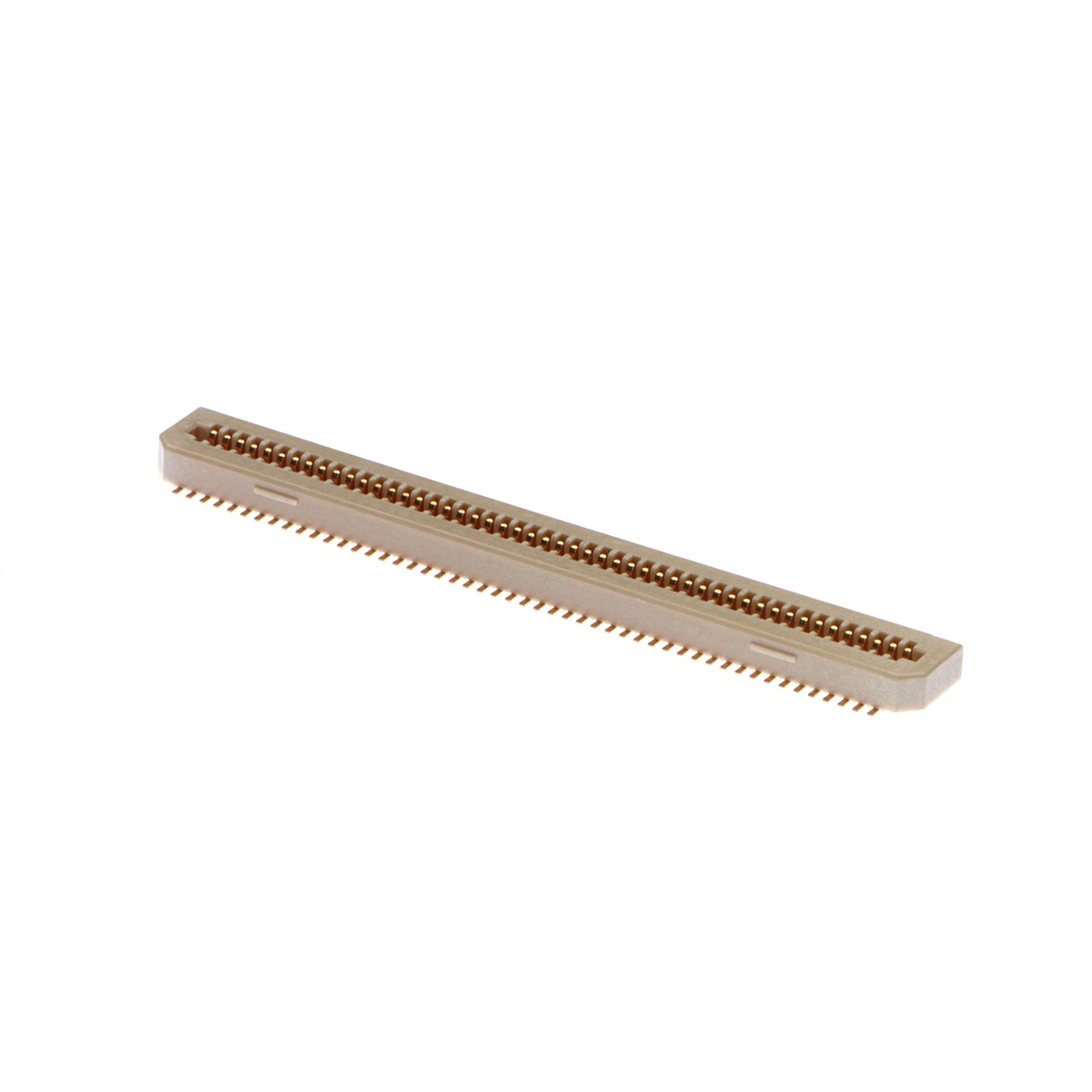

3M Electronic Specialty P08-100SLTC-B-G	Surface Mount	100	0.205 in	5.2 mm	Gold	0.203 çm	8 µin	6 mm 7 mm 8 mm	2	Board Guide	0.8 mm	0.031 in	Socket Outer Shroud Contacts
