REM6E Series

Catalog

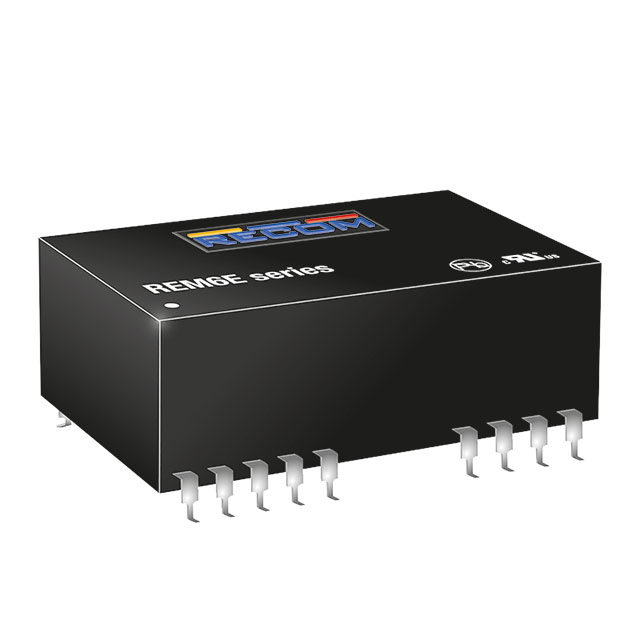

ISOLATED DC/DC CONVERTERS - SMD 6W 9-18VIN +/-15VOUT 200MA

...

Part	Voltage - Isolation	Features	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Output 2	Mounting Type	Voltage - Input (Max) [Max]	Type	Package / Case	Voltage - Output 1	Power (Watts)	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Approval Agency	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max) [Min]
Recom Power REM6E-1215D/R6/A/SMD/X1	6000 VDC	OCP OVP SCP UVLO	2	9 V	-15 V	Surface Mount	18 V	Isolated Module	24-SMD Module 18 Leads	15 V	6 W	Medical	-40 C	75 ░C	0.8 "	20.3 mm	31.8 mm	10.9 mm	0.43 in	1.25 in	83 %	CB cURus
Recom Power REM6E-2415S/R6/A/SMD	6000 VDC	OCP OVP SCP	1	18 V		Surface Mount	36 V	Isolated Module	24-SMD Module 18 Leads	15 V	6 W	Medical	-40 C	75 ░C	0.8 "	20.3 mm	31.8 mm	10.9 mm	0.43 in	1.25 in	84 %	CB cURus	400 mA
Recom Power REM6E-2412D/R8/A/X1	8 kV	OCP OVP SCP UVLO	2	18 V	-12 V	Through Hole	36 V	Isolated Module	24-DIP Module 7 Leads	12 V	6 W	Medical	-40 C	75 ░C	0.8 "	20.3 mm	31.8 mm	10.2 mm	0.4 "	1.25 in	83 %	CB cURus		250 mA

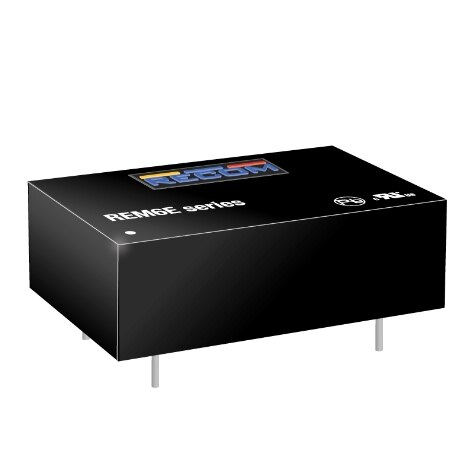

Recom Power REM6E-4824S/R8/A	8 kV	OCP OVP SCP	1	36 V		Through Hole	75 V	Isolated Module	24-DIP Module 7 Leads	24 V	6 W	Medical	-40 C	75 ░C	0.8 "	20.3 mm	31.8 mm	10.2 mm	0.4 "	1.25 in	85 %	CB cURus	250 mA
Recom Power REM6E-4812D/R10/A	10000 VDC	OCP OVP SCP	2	36 V	-12 V	Through Hole	75 V	Isolated Module	24-DIP Module 7 Leads	12 V	6 W	Medical	-40 C	75 ░C	0.8 "	20.3 mm	31.8 mm	10.2 mm	0.4 "	1.25 in	84 %	CB cURus		250 mA
Recom Power REM6E-4815D/R6/A/SMD	6000 VDC	OCP OVP SCP	2	36 V	-15 V	Surface Mount	75 V	Isolated Module	24-SMD Module 18 Leads	15 V	6 W	Medical	-40 C	75 ░C	0.8 "	20.3 mm	31.8 mm	10.9 mm	0.43 in	1.25 in	84 %	CB cURus
Recom Power REM6E-2412S/R8/A/X1	8 kV	OCP OVP SCP UVLO	1	18 V		Through Hole	36 V	Isolated Module	24-DIP Module 7 Leads	12 V	6 W	Medical	-40 C	75 ░C	0.8 "	20.3 mm	31.8 mm	10.2 mm	0.4 "	1.25 in	83 %	CB cURus	500 mA
Recom Power REM6E-1212D/R8/A/CTRL	8 kV	OCP OVP Remote On/Off SCP	2	9 V	-12 V	Through Hole	18 V	Isolated Module	24-DIP Module 7 Leads	12 V	6 W	Medical	-40 C	75 ░C	0.8 "	20.3 mm	31.8 mm	10.2 mm	0.4 "	1.25 in		CB cURus		250 mA
Recom Power REM6E-4809D/R8/A	8 kV	OCP OVP SCP	2	36 V	-9 V	Through Hole	75 V	Isolated Module	24-DIP Module 7 Leads	9 V	6 W	Medical	-40 C	75 ░C	0.8 "	20.3 mm	31.8 mm	10.2 mm	0.4 "	1.25 in	83 %	CB cURus	335 mA		335 mA
Recom Power REM6E-2424S/R8/A/X1	8 kV	OCP OVP SCP UVLO	1	18 V		Through Hole	36 V	Isolated Module	24-DIP Module 7 Leads	24 V	6 W	Medical	-40 C	75 ░C	0.8 "	20.3 mm	31.8 mm	10.2 mm	0.4 "	1.25 in	84 %	CB cURus	250 mA
