PBA10 Series

Catalog

AC/DC CONVERTER 12V

Part	Efficiency	Mounting Type	Applications	Voltage - Output 1	Voltage - Isolation	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Output 1	Number of Outputs	Power (Watts)	Features

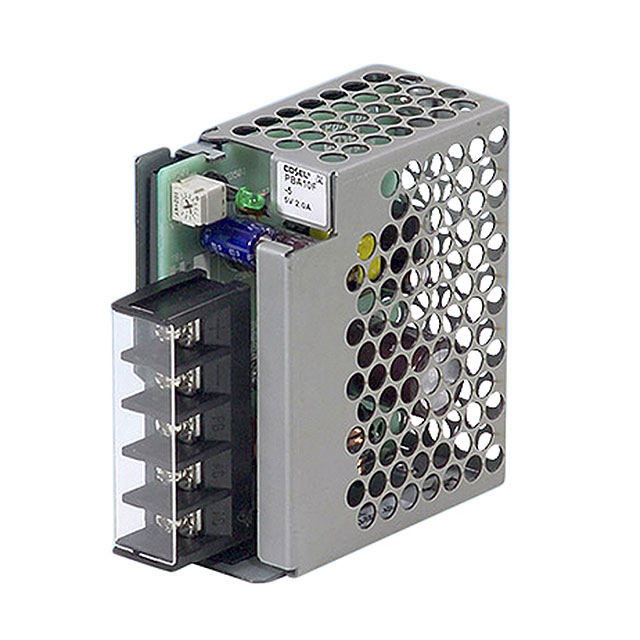

Cosel USA, Inc. PBA10F-12-CEN	76 %	Chassis Mount	ITE (Commercial)	12 V	3000 V	CE cURus TUV	1.22 in	3.07 in	31 mm	68.1 mm	2.68 in	78 mm	71 °C	-10 °C	Enclosed	900 mA	1
Cosel USA, Inc. PBA10F-12-GTN	76 %	Chassis Mount	ITE (Commercial)	12 V	3000 V	CE cURus TUV	1.22 in	3.07 in	31 mm	68.1 mm	2.68 in	78 mm	71 °C	-10 °C	Enclosed	900 mA	1
Cosel USA, Inc. PBA10F-24-TN	77 %	Chassis Mount	ITE (Commercial)	24 V	3000 V	CE cURus TUV	1.22 in	3.07 in	31 mm	68.1 mm	2.68 in	78 mm	71 °C	-10 °C	Enclosed	500 mA	1
Cosel USA, Inc. PBA10F-24-JN	77 %	Chassis Mount	ITE (Commercial)	24 V	3000 V	CE cURus TUV	1.22 in	3.07 in	31 mm	68.1 mm	2.68 in	78 mm	71 °C	-10 °C	Enclosed	500 mA	1
Cosel USA, Inc. PBA10F-12-CN	76 %	Chassis Mount	ITE (Commercial)	12 V	3000 V	CE cURus TUV	1.22 in	3.07 in	31 mm	68.1 mm	2.68 in	78 mm	71 °C	-10 °C	Enclosed	900 mA	1

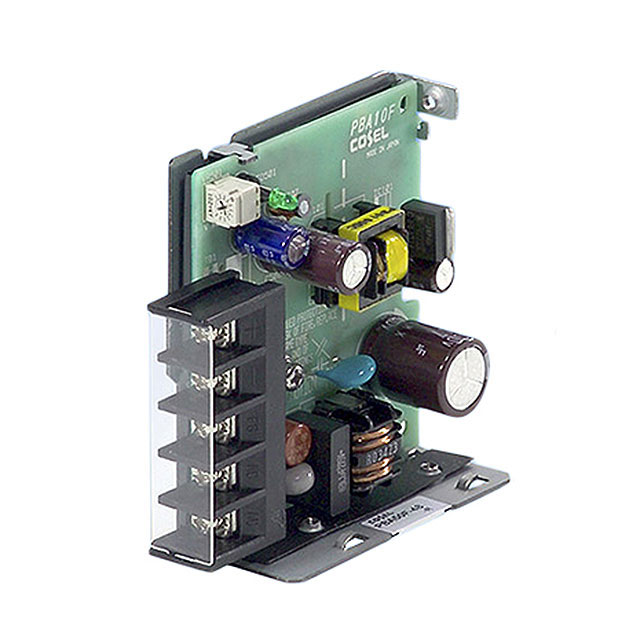

Cosel USA, Inc. PBA10F-12	76 %	Chassis Mount	ITE (Commercial)	12 V		CE cURus TUV									Open Frame	900 mA	1	10 W	DC Input Capable Universal Input
Cosel USA, Inc. PBA10F-12-CGN	76 %	Chassis Mount	ITE (Commercial)	12 V	3000 V	CE cURus TUV	1.22 in	3.07 in	31 mm	68.1 mm	2.68 in	78 mm	71 °C	-10 °C	Enclosed	900 mA	1
Cosel USA, Inc. PBA10F-5-G	74 %	Chassis Mount	ITE (Commercial)	5 V	3000 V	CE cURus TUV	1.22 in	3.07 in	31 mm	68.1 mm	2.68 in	78 mm	71 °C	-10 °C	Open Frame	2 A	1
Cosel USA, Inc. PBA10F-12-T	76 %	Chassis Mount	ITE (Commercial)	12 V	3000 V	CE cURus TUV	1.22 in	3.07 in	31 mm	68.1 mm	2.68 in	78 mm	71 °C	-10 °C	Open Frame	900 mA	1
Cosel USA, Inc. PBA10F-24-EN	77 %	Chassis Mount	ITE (Commercial)	24 V	3000 V	CE cURus TUV	1.22 in	3.07 in	31 mm	68.1 mm	2.68 in	78 mm	71 °C	-10 °C	Enclosed	500 mA	1
