TIG Series

Catalog

ROCKER SWITCHES TIGC516MBLWBL

...

Part	Mechanical Life	Electrical Life	Actuator Type	Voltage Rating - DC	Circuit	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Mounting Type	Voltage Rating - AC	Color - Actuator/Cap	Actuator Marking	Termination Style
Carling Technologies TIGC51-6M-BL-WBL	50000 Cycles	50000 Cycles	Concave (Curved)	28 V	SPDT	15 A	85 °C	-40 C	On-Off-On	36.83 mm	21.08 mm	CSA UL VDE	Panel Mount Snap-In	125 V	Black	No Marking	Quick Connect - 0.250" (6.3mm)
Carling Technologies TIGA5E-6M-BL-WBL	50000 Cycles	50000 Cycles	Concave (Curved)	28 V	SPST-NO	15 A			Off-Mom	36.83 mm	21.08 mm	CSA UL VDE	Panel Mount Snap-In	125 V	Black	No Marking	Screw Terminal
Carling Technologies TIGA5E-6S-BL-NBL	50000 Cycles	50000 Cycles	Concave (Curved)	28 V	SPST-NO	15 A			Off-Mom	36.83 mm	21.08 mm	CSA UL VDE	Panel Mount Snap-In	125 V	Black	No Marking	Screw Terminal
Carling Technologies TIGK91-1L-BL-FN	50000 Cycles	50000 Cycles	Concave		DPST	15 A			On-Off	36.83 mm	21.08 mm	CSA UL VDE	Panel Mount Snap-In	125 V	Black	No Marking	Quick Connect - 0.250" (6.3mm)
Carling Technologies TIGC5M-1F-BL-FN	50000 Cycles	50000 Cycles	Flat	28 V	SPDT	15 A			Mom-Off-Mom	36.83 mm	21.08 mm	CSA UL VDE	Panel Mount Snap-In	125 V	Black	No Marking	Quick Connect - 0.250" (6.3mm)
Carling Technologies TIGA721-6M-BL-NBL/I-O			Concave (Curved)		SPST	20 A			On-Off	36.83 mm	21.08 mm	CSA UL VDE	Panel Mount Snap-In	125 V	Black	O I	Quick Connect - 0.250" (6.3mm)

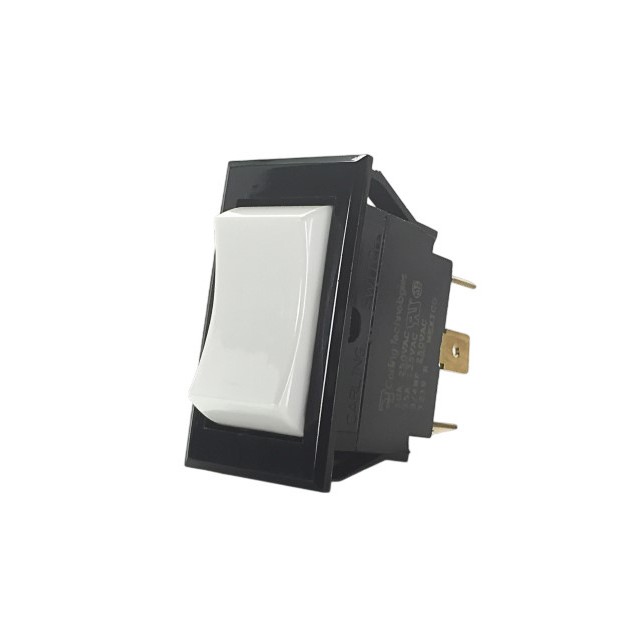

Carling Technologies TIGG5B-6S-BL-NBL			Concave (Curved)	28 V	DPDT	15 A			Off-On-Mom	36.83 mm	21.08 mm	CSA UL VDE	Panel Mount Snap-In	125 V	Black	No Marking	Quick Connect - 0.250" (6.3mm)
Carling Technologies TIGA24-6S-WH-WBL	50000 Cycles	50000 Cycles	Concave (Curved)		SPST				On-Off	36.83 mm	21.08 mm	CSA UL VDE	Panel Mount Snap-In		White	No Marking	Screw Terminal
Carling Technologies TIGA721-6M-BL-NBL	50000 Cycles	50000 Cycles	Concave (Curved)		SPST	20 A			On-Off	36.83 mm	21.08 mm	CSA UL VDE	Panel Mount Snap-In	125 V	Black	No Marking	Quick Connect - 0.250" (6.3mm)
Carling Technologies TIGA51-6S-BL-WBL/MATTE			Concave (Curved)	28 V	SPST	15 A			On-Off	36.83 mm	21.08 mm	CSA UL VDE	Panel Mount Snap-In	125 V	Black	No Marking	Quick Connect - 0.250" (6.3mm)
