8282-4PG Series

Catalog

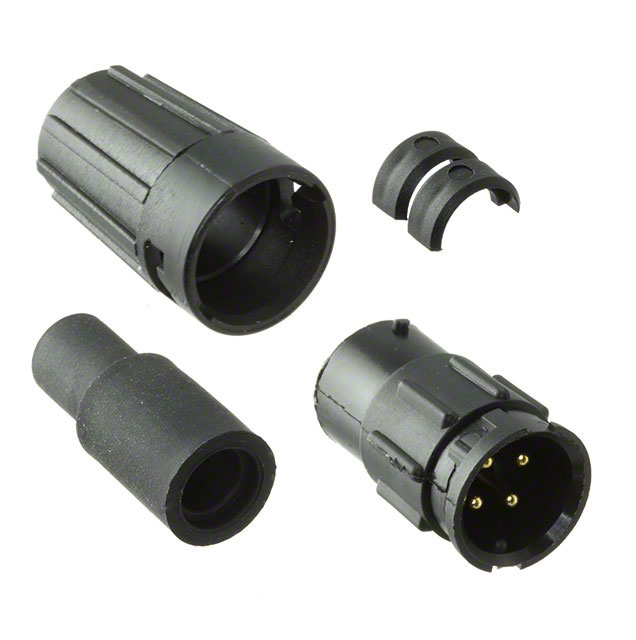

MINI-CON-X CABLE-TO-CABLE, 4-PIN #20, MALE, SOLDER CUP, BULK

Part	Shielding	Connector Type	Number of Positions	Ingress Protection	Color	Voltage Rating	Features	Primary Material	Current Rating (Amps)	Contact Finish - Mating	Applications	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Material	Orientation	Fastening Type	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]
SWITCHCRAFT/CONXALL 8282-4PG-321	Unshielded	Receptacle Male Pins	4	Weathertight	Black	600 V	Backshell	Plastic	Varies by Wire Gauge	Gold	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	115 °C	-40 C	Free Hanging (In-Line)	Brass	Keyed	Bayonet Lock	5.33 mm	0.23 in	5.84 mm	0.21 in
SWITCHCRAFT/CONXALL 8282-4PG-315	Unshielded	Receptacle Male Pins	4	Weathertight	Black	600 V	Backshell	Plastic	Varies by Wire Gauge	Gold	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	115 °C	-40 C	Free Hanging (In-Line)	Brass	Keyed	Bayonet Lock	3.81 mm	0.17 in	4.32 mm	0.15 "
SWITCHCRAFT/CONXALL 8282-4PG-513	Unshielded	Receptacle Male Pins	4	Weathertight	Black	600 V	Backshell	Plastic	Varies by Wire Gauge	Gold	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	115 °C	-40 C	Free Hanging (In-Line)	Brass	Keyed	Bayonet Lock	3.3 mm	0.15 in	3.81 mm	0.13 "
SWITCHCRAFT/CONXALL 8282-4PG-3DC	Unshielded	Receptacle Male Pins	4	Weathertight	Black	600 V	Backshell	Plastic	Varies by Wire Gauge	Gold	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	115 °C	-40 C	Free Hanging (In-Line)	Brass	Keyed	Bayonet Lock
SWITCHCRAFT/CONXALL 8282-4PG-516	Unshielded	Receptacle Male Pins	4	Weathertight	Black	600 V	Backshell	Plastic	Varies by Wire Gauge	Gold	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	115 °C	-40 C	Free Hanging (In-Line)	Brass	Keyed	Bayonet Lock	4.06 mm	0.18 "	4.57 mm	0.16 "
SWITCHCRAFT/CONXALL 8282-4PG-522	Unshielded	Receptacle Male Pins	4	Weathertight	Black	600 V	Backshell	Plastic	Varies by Wire Gauge	Gold	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	115 °C	-40 C	Free Hanging (In-Line)	Brass	Keyed	Bayonet Lock	5.59 mm	0.25 in	6.35 mm	0.22 in
SWITCHCRAFT/CONXALL 8282-4PG-519	Unshielded	Receptacle Male Pins	4	Weathertight	Black	600 V	Backshell	Plastic	Varies by Wire Gauge	Gold	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	115 °C	-40 C	Free Hanging (In-Line)	Brass	Keyed	Bayonet Lock	4.83 mm	0.21 in	5.33 mm	0.19 in
SWITCHCRAFT/CONXALL 8282-4PG-318	Unshielded	Receptacle Male Pins	4	Weathertight	Black	600 V	Backshell	Plastic	Varies by Wire Gauge	Gold	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	115 °C	-40 C	Free Hanging (In-Line)	Brass	Keyed	Bayonet Lock	4.57 mm	0.2 "	5.08 mm	0.18 "
