HCSD Series

Ribbon Cables / IDC Cables IDC Socket and Terminal Cable Assemblies, 0.100" Pitch

Manufacturer: Samtec Inc.

Catalog

Ribbon Cables / IDC Cables IDC Socket and Terminal Cable Assemblies, 0.100" Pitch

...

Part	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Contact Finish	Number of Positions	Connector Type	Number of Rows	Pitch - Connector	Pitch - Connector	Shielding	Pitch - Cable	Pitch - Cable	Features	Color	Number of Positions

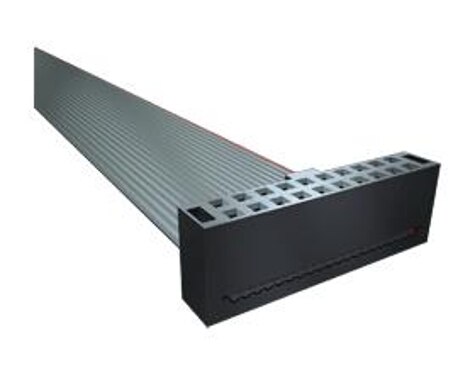

Samtec Inc. HCSD-17-D-06.50-01-G-R	10 Áin	0.25 Ám	IDC	Gold	34	Socket to Socket Reversed	2	0.1 in	2.54 mm	Unshielded	0.05 "	1.27 mm
Samtec Inc. HCSD-20-D-13.00-01-T-N-G	150 µin	150 Áin	IDC	Tin	40	Socket to Socket	2	0.1 in	2.54 mm	Unshielded	0.05 "	1.27 mm	Polarizing Key

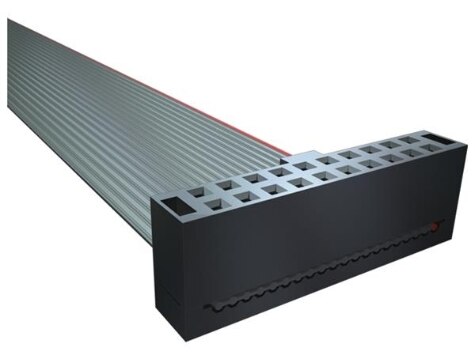

Samtec Inc. HCSD-08-D-96.00-01-N	10 Áin	0.25 Ám	IDC	Gold		Socket to Socket	2	0.1 in	2.54 mm	Unshielded	0.05 "	1.27 mm	Polarizing Key	Multiple Ribbon	16
Samtec Inc. HCSD-05-D-06.00-01-G-R	10 Áin	0.25 Ám	IDC	Gold	10	Socket to Socket Reversed	2	0.1 in	2.54 mm	Unshielded	0.05 "	1.27 mm
Samtec Inc. HCSD-07-D-60.00-01-G	10 Áin	0.25 Ám	IDC	Gold	14	Socket to Socket	2	0.1 in	2.54 mm	Unshielded	0.05 "	1.27 mm
Samtec Inc. HCSD-08-D-19.20-01-N	10 Áin	0.25 Ám	IDC	Gold		Socket to Socket	2	0.1 in	2.54 mm	Unshielded	0.05 "	1.27 mm	Polarizing Key	Multiple Ribbon	16
Samtec Inc. HCSD-08-S-06.00-01-T-G-ST4	150 µin	150 Áin	IDC	Tin		Socket to Cable	2	0.1 in	2.54 mm	Unshielded	0.05 "	1.27 mm			16
Samtec Inc. HCSD-08-D-03.93-01-N	10 Áin	0.25 Ám	IDC	Gold		Socket to Socket	2	0.1 in	2.54 mm	Unshielded	0.05 "	1.27 mm	Polarizing Key	Multiple Ribbon	16
Samtec Inc. HCSD-12-D-36.00-01-N-R	10 Áin	0.25 Ám	IDC	Gold	24	Socket to Socket Reversed	2	0.1 in	2.54 mm	Unshielded	0.05 "	1.27 mm	Polarizing Key	Multiple Ribbon
Samtec Inc. HCSD-05-D-12.00-01-G-R	10 Áin	0.25 Ám	IDC	Gold	10	Socket to Socket Reversed	2	0.1 in	2.54 mm	Unshielded	0.05 "	1.27 mm
