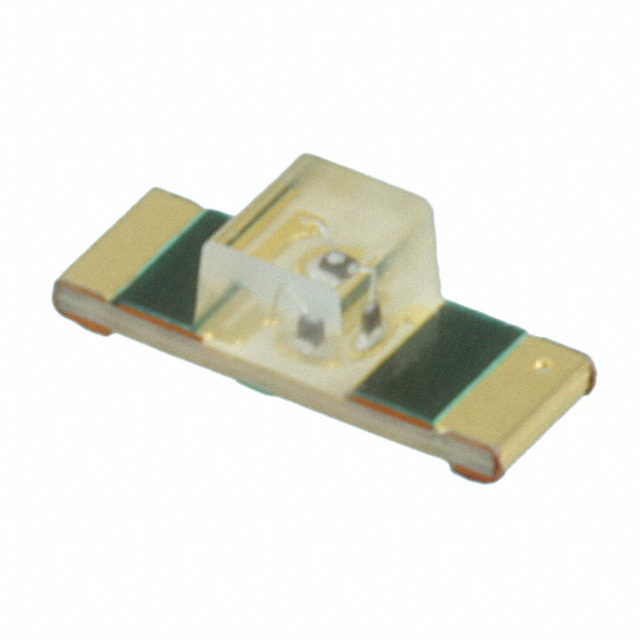

HSMH-C265 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED RED CLR CHIP SMD BOTTOM ENT
| Part | Lens Style | Current - Test | Lens Size [x] | Lens Size [y] | Lens Transparency | Color | Wavelength - Peak | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Height (Max) [z] | Supplier Device Package | Wavelength - Dominant | Lens Color | Mounting Type | Viewing Angle | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Rectangle with Flat Top | 20 mA | 1.2 mm | 1.25 mm | Clear | Red | 660 nm | 1.25 mm | 3.4 mm | 1305 (3412 Metric) | 1.1 mm | Chip LED | 639 nm | Colorless | Surface Mount Bottom Entry | 170 ° | 17 mcd | 1.8 V | Standard |
