S2B-XH-A Series

Catalog

CONN HEADER R/A 2POS 2.5MM

Part	Pitch - Mating	Pitch - Mating	Contact Type	Voltage Rating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Insulation Color	Mounting Type	Termination	Number of Rows	Contact Shape	Material Flammability Rating	Number of Positions Loaded	Shrouding	Style	Number of Positions	Connector Type	Contact Material	Fastening Type	Insulation Material	Contact Length - Post [x]	Contact Length - Post

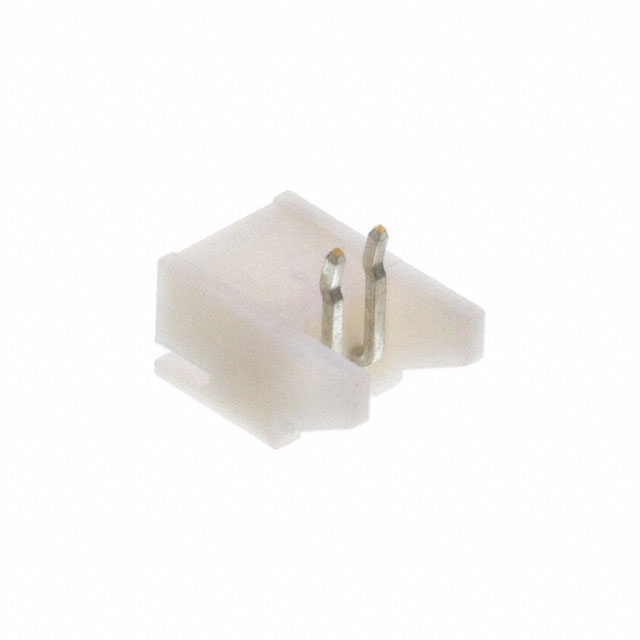

JST Sales America Inc. S2B-XH-A-1	2.5 mm	0.098 in	Male Pin	250 V	3 A	85 °C	-25 °C	6.1 mm	0.24 in	Tin	Natural	Right Angle Through Hole	Press-Fit Solder	1	Square	UL94 V-0	All	Shrouded - 4 Wall	Board to Cable/Wire	2	Header	Brass	Detent Lock	Nylon 6/6 Polyamide (PA66)	0.134 "	3.4 mm

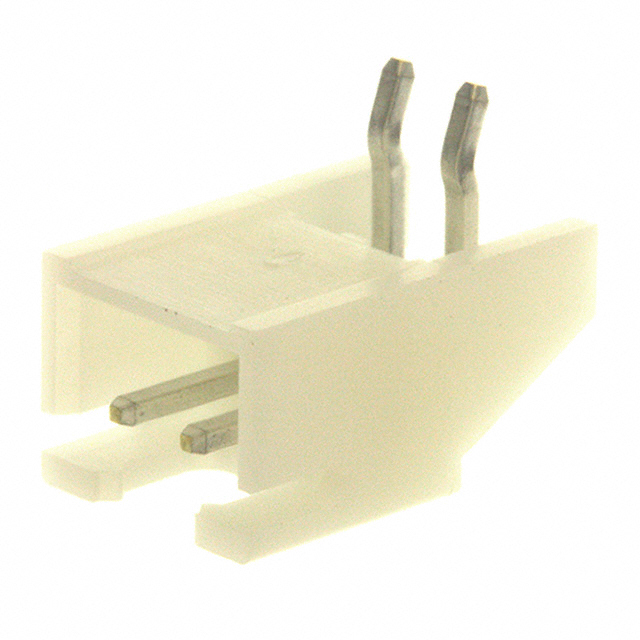

JST Sales America Inc. S2B-XH-A	2.5 mm	0.098 in	Male Pin	250 V	3 A	85 °C	-25 °C	6.1 mm	0.24 in	Tin	Natural	Right Angle Through Hole	Press-Fit Solder	1	Square	UL94 V-0	All	Shrouded - 4 Wall	Board to Cable/Wire	2	Header	Brass	Detent Lock	Nylon 6/6 Polyamide (PA66)	0.134 "	3.4 mm
