54102 Series

Catalog

BERGSTRIP 0.100" HDR

...

Part	Insulation Color	Number of Rows	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Type	Current Rating (Amps)	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Finish - Post	Fastening Type	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Connector Type	Material Flammability Rating	Mounting Type	Style	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Contact Length - Mating [x]	Number of Positions Loaded	Contact Length - Post
Amphenol ICC (FCI) 54102-T0510LF	Black	2	0.1 in	2.54 mm	All	2.41 mm	0.095 in	2.54 µm	100 µin	Phosphor Bronze	Male Pin	3 A	20	0.23 in	5.84 mm	Solder	2.54 mm	0.1 in	2.54 çm	100 çin	Square	Tin	Push-Pull	Unshrouded	125 °C	-65 ░C	0.1 in	2.54 mm	Header	UL94 V-0	Through Hole	Board to Board Cable
Amphenol ICC (FCI) 54102-S08-08	Black	2	0.1 in	2.54 mm	All	3.05 mm	0.12 in			Phosphor Bronze	Male Pin			0.23 in	5.84 mm	Solder	2.54 mm	0.1 in	0.38 µm	15 µin	Square		Push-Pull	Unshrouded			0.1 in	2.54 mm	Header	UL94 V-0	Through Hole	Board to Board Cable	16	0.45 "	11.43 mm	Gold or Gold GXT™

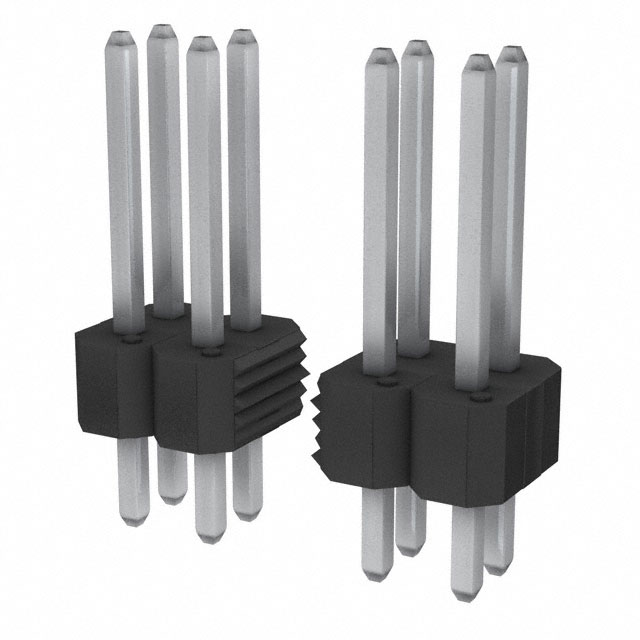

Amphenol ICC (FCI) 54102-T3007LF	Black	2	0.1 in	2.54 mm	All	3.05 mm	0.12 in	2.54 µm	100 µin	Phosphor Bronze	Male Pin	3 A	14	0.318 "		Solder	2.54 mm	0.1 in	2.54 çm	100 çin	Square	Tin	Push-Pull	Unshrouded	125 °C	-65 ░C	0.1 in	2.54 mm	Header	UL94 V-0	Through Hole	Board to Board Cable		0.538 "	13.67 mm		8.08 mm

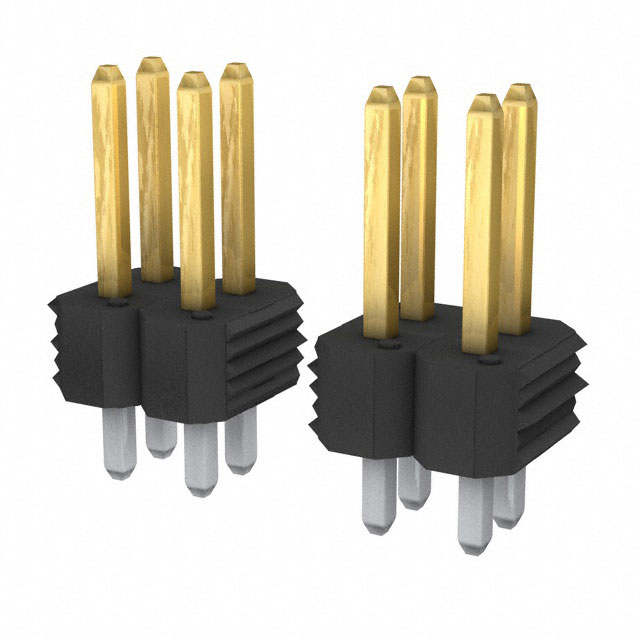

Amphenol ICC (FCI) 54102-S05-00	Black	2	0.1 in	2.54 mm	All	2.41 mm	0.095 in			Phosphor Bronze	Male Pin	3 A		0.23 in	5.84 mm	Solder	2.54 mm	0.1 in	0.38 µm	15 µin	Square		Push-Pull	Unshrouded			0.1 in	2.54 mm	Header	UL94 V-0	Through Hole	Board to Board Cable	Cuttable			Gold or Gold GXT™

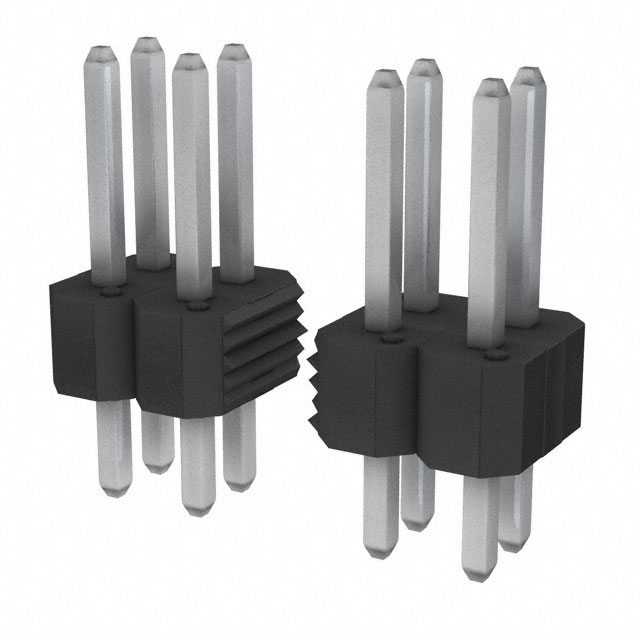

Amphenol ICC (FCI) 54102-T0807B03LF	Black	2	0.1 in	2.54 mm		3.05 mm	0.12 in	2.54 µm	100 µin	Phosphor Bronze	Male Pin	3 A	14	0.23 in	5.84 mm	Solder	2.54 mm	0.1 in	2.54 çm	100 çin	Square	Tin	Push-Pull	Unshrouded	125 °C	-65 ░C	0.1 in	2.54 mm	Header	UL94 V-0	Through Hole	Board to Board Cable		0.45 "	11.43 mm			13
Amphenol ICC (FCI) 54102-T06-29	Black	2	0.1 in	2.54 mm	All		0.11 in			Phosphor Bronze	Male Pin		58	0.23 in	5.84 mm	Solder	2.54 mm	0.1 in	2.54 çm	100 çin	Square		Push-Pull	Unshrouded			0.1 in	2.54 mm	Header	UL94 V-0	Through Hole	Board to Board Cable		0.44 in	11.18 mm				2.79 mm
Amphenol ICC (FCI) 54102-T06-08	Black	2	0.1 in	2.54 mm	All		0.11 in			Phosphor Bronze	Male Pin	3 A		0.23 in	5.84 mm	Solder	2.54 mm	0.1 in	2.54 çm	100 çin	Square		Push-Pull	Unshrouded			0.1 in	2.54 mm	Header	UL94 V-0	Through Hole	Board to Board Cable	16	0.44 in	11.18 mm				2.79 mm
Amphenol ICC (FCI) 54102-T32-00	Black	2	0.1 in	2.54 mm	All	3.81 mm	0.15 in			Phosphor Bronze	Male Pin			0.318 "		Solder	2.54 mm	0.1 in	2.54 çm	100 çin	Square		Push-Pull	Unshrouded			0.1 in	2.54 mm	Header	UL94 V-0	Through Hole	Board to Board Cable	Cuttable	0.568 in	14.43 mm		8.08 mm

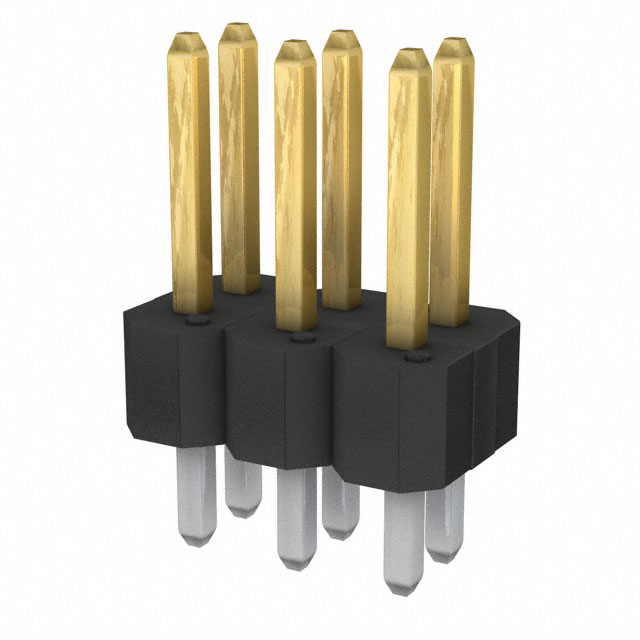

Amphenol ICC (FCI) 54102-S0603LF	Black	2	0.1 in	2.54 mm	All		0.11 in	2.54 µm	100 µin	Phosphor Bronze	Male Pin	3 A	6	0.23 in	5.84 mm	Solder	2.54 mm	0.1 in	0.38 µm	15 µin	Square	Tin	Push-Pull	Unshrouded	125 °C	-65 ░C	0.1 in	2.54 mm	Header	UL94 V-0	Through Hole	Board to Board Cable		0.44 in	11.18 mm	Gold or Gold GXT™			2.79 mm
Amphenol ICC (FCI) 54102-T1008LF	Black	2	0.1 in	2.54 mm	All	3.81 mm	0.15 in	2.54 µm	100 µin	Phosphor Bronze	Male Pin	3 A		0.23 in	5.84 mm	Solder	2.54 mm	0.1 in	2.54 çm	100 çin	Square	Tin	Push-Pull	Unshrouded	125 °C	-65 ░C	0.1 in	2.54 mm	Header	UL94 V-0	Through Hole	Board to Board Cable	16	0.48 in	12.19 mm
