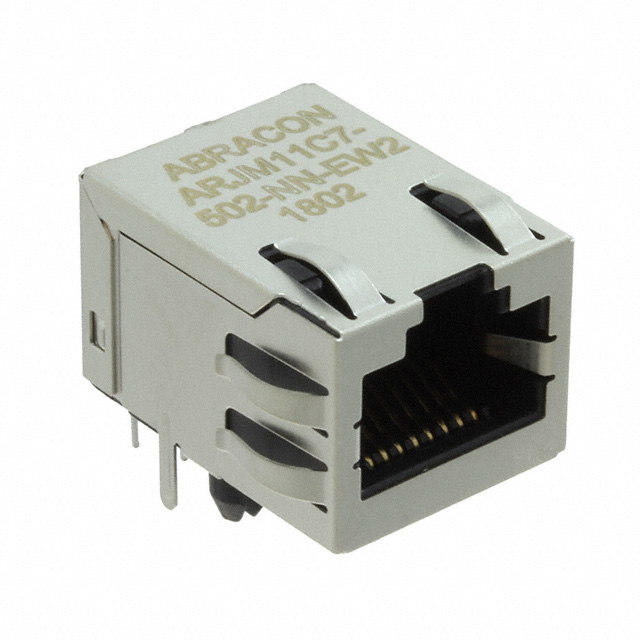

ARJM11 Series
Manufacturer: Abracon LLC
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS RJ45 10GBASE-T 1X1 RIGHT ANGLE N/A THROUGH HOLE
| Part | Height Above Board [z] | Height Above Board [z] | Number of Rows | Connector Type | Applications | Shielding | Contact Finish | Contact Material | Number of Ports | Features | Tab Direction | Orientation | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Cores per Jack | Termination | LED Color | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 0.531 in | 13.5 mm | 1 | RJ45 | 10G Base-T AutoMDIX | EMI Finger Shielded | Nickel | Phosphor Bronze | 1 | Board Guide | Up | 90 ° | Through Hole | 85 °C | -40 C | 8 | Solder | Green Yellow - Green | ||
 Abracon LLC | 0.543 in | 13.8 mm | 1 | RJ45 | 10/100/1000 Base-T AutoMDIX | EMI Finger Shielded | Gold | 1 | Board Lock | Up | 90 ° | Through Hole | 85 °C | -40 C | 8 | Solder | Does Not Contain LED | 0.152 Ám | 6 Áin | |
 Abracon LLC | 0.543 in | 13.8 mm | 1 | RJ45 | 10/100 Base-T AutoMDIX Power over Ethernet (PoE) | Shielded | Gold | 1 | Board Lock | Up | 90 ° | Through Hole | 85 °C | -40 C | Solder | Green - Yellow | 0.152 Ám | 6 Áin | ||
 Abracon LLC | 0.535 in | 13.59 mm | 1 | RJ45 | 10/100 Base-T AutoMDIX | Shielded | Gold | 1 | Board Lock | Down | 90 ° | Through Hole | 85 °C | -40 C | Solder | Does Not Contain LED | 0.152 Ám | 6 Áin | ||
 Abracon LLC | 0.543 in | 13.8 mm | 1 | RJ45 | 10/100 Base-T AutoMDIX Power over Ethernet (PoE) | Shielded | Gold | 1 | Board Lock | Up | 90 ° | Through Hole | 85 °C | -40 C | Solder | Green - Yellow |
