ECC05 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

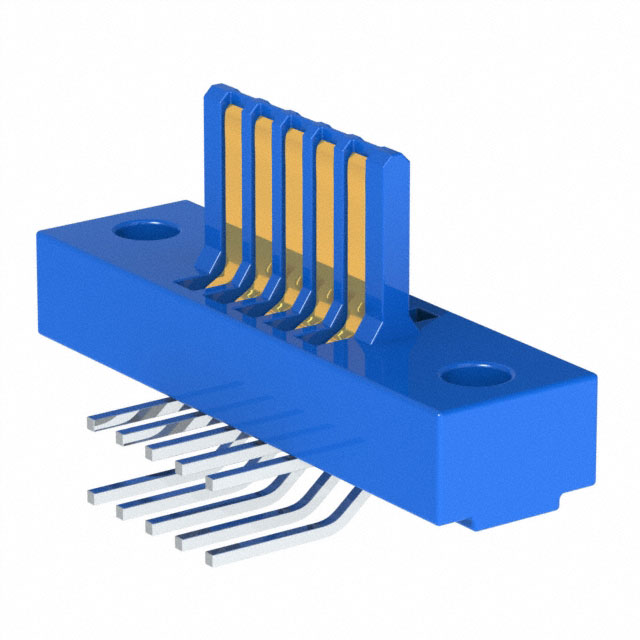

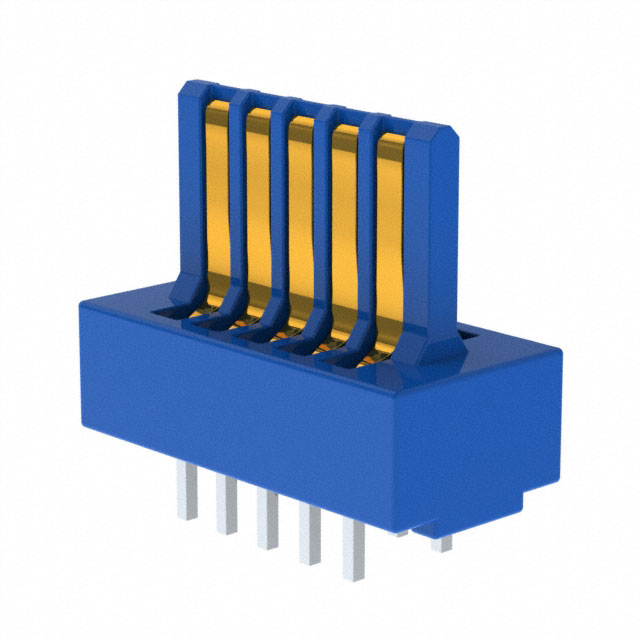

CONN CARDEDGE MALE 10POS 0.100
| Part | Material - Insulation | Gender | Mounting Type | Card Thickness | Card Thickness | Number of Rows [custom] | Read Out | Contact Material | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Pitch | Pitch | Color | Features | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Male | Right Angle Through Hole | 1.57 mm | 0.062 in | 2 | Dual | Phosphor Bronze | Flush Mount Top Opening Unthreaded | 3.18 mm | 0.125 " | Solder | 10 | 30 Áin | 0.76 Ám | Gold | Fits Female Edgecards | -65 ░C | 125 °C | 5 | 0.1 " | 2.54 mm | |||
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Female | Through Hole | 1.57 mm | 0.062 in | 2 | Dual | Phosphor Bronze | Press-Fit | 10 | 30 Áin | 0.76 Ám | Gold | Non Specified - Dual Edge | -65 ░C | 125 °C | 5 | 0.1 " | 2.54 mm | Black | Open Card Slot | ||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Female | Through Hole | 1.57 mm | 0.062 in | 2 | Dual | Phosphor Bronze | Solder | 10 | 30 Áin | 0.76 Ám | Gold | Non Specified - Dual Edge | -65 ░C | 125 °C | 5 | 0.1 " | 2.54 mm | Cantilever | |||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Male | Right Angle Through Hole | 1.57 mm | 0.062 in | 2 | Dual | Phosphor Bronze | Solder | 10 | 30 Áin | 0.76 Ám | Gold | Fits Female Edgecards | -65 ░C | 125 °C | 5 | 0.1 " | 2.54 mm | ||||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Female | Right Angle Through Hole | 1.57 mm | 0.062 in | 2 | Dual | Phosphor Bronze | 4-40 Threaded Insert Top Mount Opening | Solder | 10 | 30 Áin | 0.76 Ám | Gold | Non Specified - Dual Edge | -65 ░C | 125 °C | 5 | 0.1 " | 2.54 mm | Blue | Full Bellows | |||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Female | Through Hole | 1.57 mm | 0.062 in | 2 | Dual | Phosphor Bronze | Solder | 10 | 30 Áin | 0.76 Ám | Gold | Non Specified - Dual Edge | -65 ░C | 125 °C | 5 | 0.1 " | 2.54 mm | Blue | Full Bellows | ||||
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Male | Right Angle Through Hole | 1.57 mm | 0.062 in | 2 | Dual | Phosphor Bronze | Solder | 10 | 30 Áin | 0.76 Ám | Gold | Fits Female Edgecards | -65 ░C | 125 °C | 5 | 0.1 " | 2.54 mm | ||||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Female | Through Hole | 1.57 mm | 0.062 in | 2 | Dual | Phosphor Bronze | Side Mount Opening Unthreaded | 3.18 mm | 0.125 " | Solder | 10 | 30 Áin | 0.76 Ám | Gold | Non Specified - Dual Edge | -65 ░C | 125 °C | 5 | 0.1 " | 2.54 mm | Blue | Full Bellows | |
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Female | Board Edge Straddle Mount | 1.57 mm | 0.062 in | 2 | Dual | Phosphor Bronze | 4-40 Threaded Insert Top Mount Opening | Solder | 10 | 30 Áin | 0.76 Ám | Gold | Non Specified - Dual Edge | -65 ░C | 125 °C | 5 | 0.1 " | 2.54 mm | Blue | Card Extender | Full Bellows | ||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Female | Through Hole | 1.57 mm | 0.062 in | 2 | Dual | Phosphor Bronze | 3.18 mm | 0.125 " | Solder | 10 | 30 Áin | 0.76 Ám | Gold | Non Specified - Dual Edge | -65 ░C | 125 °C | 5 | 0.1 " | 2.54 mm | Blue | Full Bellows |
