LMH7322 Series

5.5-V, 700-ps, high-speed, dual RSPECL comparator

Catalog

5.5-V, 700-ps, high-speed, dual RSPECL comparator

Part	Supplied Contents	Utilized IC / Part	Type	Function	CMRR, PSRR (Typ)	CMRR, PSRR (Typ)	Current - Output (Typ)	Current - Quiescent (Max) [Max]	Mounting Type	Output Type	Voltage - Input Offset (Max) [Max]	Supplier Device Package	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Input Bias (Max)	Number of Elements	Propagation Delay (Max) [Max]	Contents

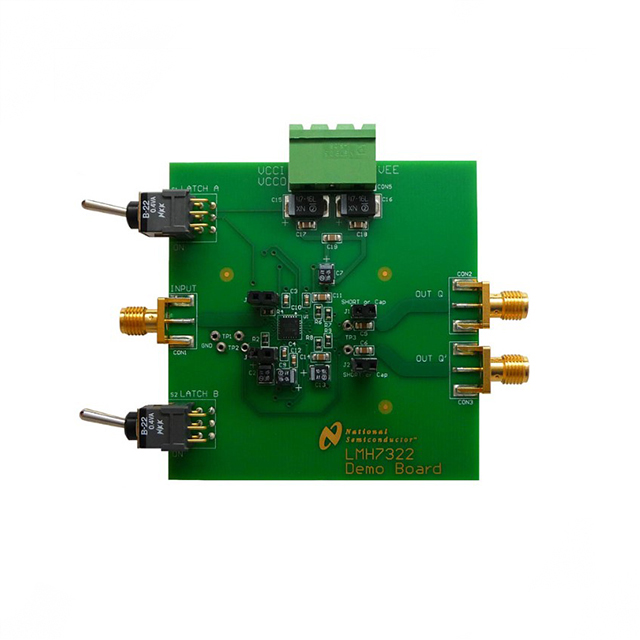

Texas Instruments LMH7322EVAL	Board(s)	LMH7322	Interface	Comparator
Texas Instruments LMH7322SQ/NOPB			General Purpose		80 dB	80 dB	25 mA	10 mA	Surface Mount	Differential LVDS RSPECL	8 mV	24-WQFN (4x4)	1.35 V 2.7 V	6 V 12 V	24-WFQFN Exposed Pad	125 °C	-40 °C	5 µA	2	0.783 ns
Texas Instruments LMH7322SQX/NOPB			General Purpose		80 dB	80 dB	25 mA	10 mA	Surface Mount	Differential LVDS RSPECL	8 mV	24-WQFN (4x4)	1.35 V 2.7 V	6 V 12 V	24-WFQFN Exposed Pad	125 °C	-40 °C	5 µA	2	0.783 ns
Texas Instruments LMH7322SQE/NOPB			General Purpose		80 dB	80 dB	25 mA	10 mA	Surface Mount	Differential LVDS RSPECL	8 mV	24-WQFN (4x4)	1.35 V 2.7 V	6 V 12 V	24-WFQFN Exposed Pad	125 °C	-40 °C	5 µA	2	0.783 ns
Texas Instruments LMH7322EVAL/NOPB	Board(s)	LMH7322	Interface	Comparator																	Board(s)

Catalog

5.5-V, 700-ps, high-speed, dual RSPECL comparator

Key Features

• (VCCI= +5V, VCCO= +5V)Propagation Delay 700 psOverdrive Dispersion 20 mV-1V 75 psFast Rise and Fall Times 160 psWide Supply Range 2.7V to 12VInput Common Mode Range Extends 200 mV Below Negative RailAdjustable Hysteresis(RS)PECL Outputs (see )(RS)PECL Latch Inputs (see )All trademarks are the property of their respective owners.(VCCI= +5V, VCCO= +5V)Propagation Delay 700 psOverdrive Dispersion 20 mV-1V 75 psFast Rise and Fall Times 160 psWide Supply Range 2.7V to 12VInput Common Mode Range Extends 200 mV Below Negative RailAdjustable Hysteresis(RS)PECL Outputs (see )(RS)PECL Latch Inputs (see )All trademarks are the property of their respective owners.

Description

The LMH7322 is a dual comparator with 700 ps propagation delay, low dispersion of 75 ps and an input voltage range that extends from VCC-1.5V to VEE. The devices can be operated from a wide supply voltage range of 2.7V to 12V. The adjustable hysteresis adds flexibility and prevents oscillations. Both the outputs and latch inputs of the LMH7322 are RSPECL compatible. When used in combination with a VCCOsupply voltage of 2.5V the outputs have LVDS compatible levels. The LMH7322 is available in a 24-pin WQFN package. The LMH7322 is a dual comparator with 700 ps propagation delay, low dispersion of 75 ps and an input voltage range that extends from VCC-1.5V to VEE. The devices can be operated from a wide supply voltage range of 2.7V to 12V. The adjustable hysteresis adds flexibility and prevents oscillations. Both the outputs and latch inputs of the LMH7322 are RSPECL compatible. When used in combination with a VCCOsupply voltage of 2.5V the outputs have LVDS compatible levels. The LMH7322 is available in a 24-pin WQFN package.
