TDA998 Series

Catalog

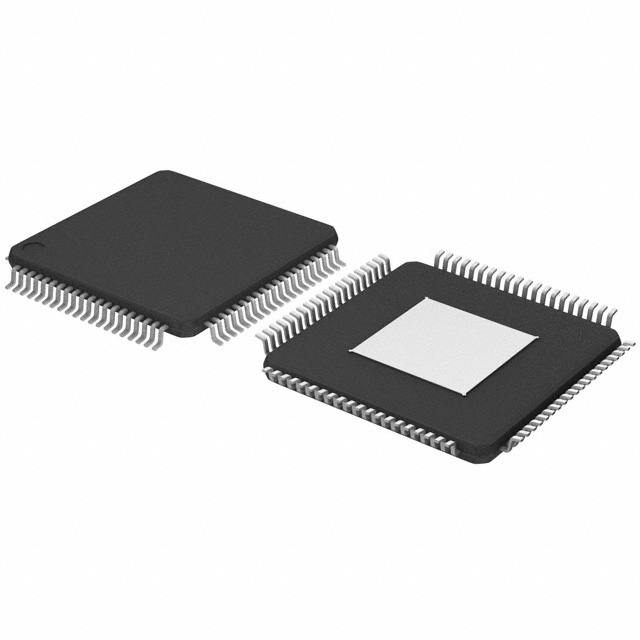

IC VIDEO TRANSMITTER 80HTQFP

Part	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 1 Minimum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Minimum)	Function	Control Interface	Package / Case	Package Length	Package Name	Package Width	Mounting Type	Applications	Standards	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
NXP USA Inc. TDA9983BHW/8/C1:55	3.6 V	1.65 V	1.95 V	3 V	Transmitter	I2C	80-TQFP Exposed Pad	12 mm	80-HTQFP	12 mm	Surface Mount	Consumer Video	HDMI 1.2a ITU656
NXP USA Inc. TDA9981BHL/15/C1,5	3.6 V	1.65 V	1.95 V	3 V	Transmitter	I2C	80-LQFP	12 mm	80-LQFP	12 mm	Surface Mount	Consumer Video	HDMI 1.2a ITU656
NXP USA Inc. TDA9984AHW/15C188:					Transmitter	I2C	80-TQFP Exposed Pad	12 mm	80-HTQFP	12 mm	Surface Mount	Consumer Video	HDMI 1.3	3.3 V	1.8 V
NXP USA Inc. TDA9984BHW/C1,557					Transmitter	I2C	80-TQFP Exposed Pad	12 mm	80-HTQFP	12 mm	Surface Mount	Consumer Video	HDMI 1.3	3.3 V	1.8 V
NXP USA Inc. TDA9981BHL/8/C1,51	3.6 V	1.65 V	1.95 V	3 V	Transmitter	I2C	80-LQFP	12 mm	80-LQFP	12 mm	Surface Mount	Consumer Video	HDMI 1.2a ITU656
NXP USA Inc. TDA9981BHL/15/C1:5	3.6 V	1.65 V	1.95 V	3 V	Transmitter	I2C	80-LQFP	12 mm	80-LQFP	12 mm	Surface Mount	Consumer Video	HDMI 1.2a ITU656
NXP USA Inc. TDA9984AHW/15/C188					Transmitter	I2C	80-TQFP Exposed Pad	12 mm	80-HTQFP	12 mm	Surface Mount	Consumer Video	HDMI 1.3	3.3 V	1.8 V
NXP USA Inc. TDA9983BHW/8/C1,55	3.6 V	1.65 V	1.95 V	3 V	Transmitter	I2C	80-TQFP Exposed Pad	12 mm	80-HTQFP	12 mm	Surface Mount	Consumer Video	HDMI 1.2a ITU656
NXP USA Inc. TDA9983BHW/15/C1,5	3.6 V	1.65 V	1.95 V	3 V	Transmitter	I2C	80-TQFP Exposed Pad	12 mm	80-HTQFP	12 mm	Surface Mount	Consumer Video	HDMI 1.2a ITU656
NXP USA Inc. TDA9984AHW/15C188,					Transmitter	I2C	80-TQFP Exposed Pad	12 mm	80-HTQFP	12 mm	Surface Mount	Consumer Video	HDMI 1.3	3.3 V	1.8 V
