214753 Series

Manufacturer: Molex

Catalog

MICRO-FIT 3.0 MALE-TO-PIGTAIL OFF-THE-SHELF (OTS) CABLE ASSEMBLY, SINGLE ROW, 600.00MM LENGTH, GOLD (AU) PLATING, 6 CIRCUITS, BLACK

Part	Contact Finish	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Connector Type	Number of Positions	Number of Rows	Pitch - Connector	Pitch - Connector	Shielding	Length	Length [x]	Length [x]	Length [x]
Molex 2147532063	Gold	600 mm	1.97 ft	0.76 Ám	30 Áin	Crimp	Plug to Individual Wire Leads	6	1	0.118 in	3 mm	Unshielded
Molex 2147532051	Gold	150 mm	0.492 ft	0.76 Ám	30 Áin	Crimp	Plug to Individual Wire Leads		1	0.118 in	3 mm	Unshielded	5.91 "

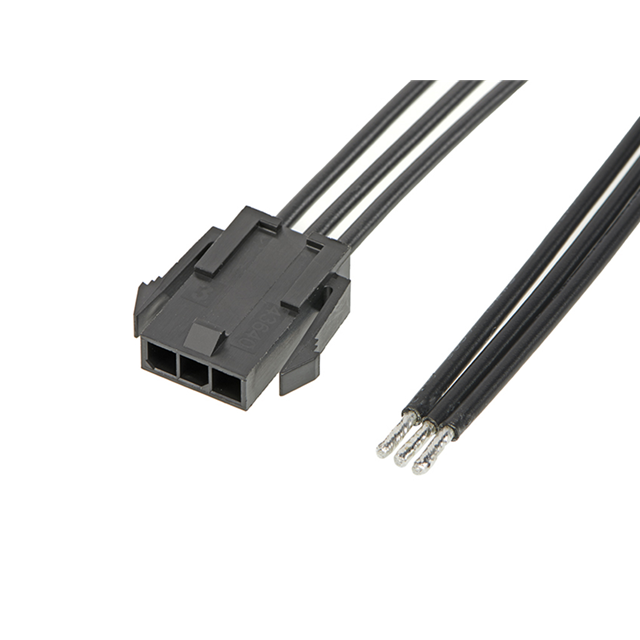

Molex 2147531041	Tin	150 mm	0.492 ft	1.02 Ám	40 Áin	Crimp	Plug to Individual Wire Leads	4	1	0.118 in	3 mm	Unshielded	5.91 "
Molex 2147531063	Tin	600 mm	1.97 ft	1.02 Ám	40 Áin	Crimp	Plug to Individual Wire Leads	6	1	0.118 in	3 mm	Unshielded
Molex 2147532062	Gold			0.76 Ám	30 Áin	Crimp	Plug to Individual Wire Leads	6	1	0.118 in	3 mm	Unshielded		0.984 '	11.81 "	300 mm
Molex 2147532101	Gold	150 mm	0.492 ft	0.76 Ám	30 Áin	Crimp	Plug to Individual Wire Leads	10	1	0.118 in	3 mm	Unshielded	5.91 "
Molex 2147531042	Tin			1.02 Ám	40 Áin	Crimp	Plug to Individual Wire Leads	4	1	0.118 in	3 mm	Unshielded		0.984 '	11.81 "	300 mm
Molex 2147531082	Tin			1.02 Ám	40 Áin	Crimp	Plug to Individual Wire Leads	8	1	0.118 in	3 mm	Unshielded		0.984 '	11.81 "	300 mm
Molex 2147531083	Tin	600 mm	1.97 ft	1.02 Ám	40 Áin	Crimp	Plug to Individual Wire Leads	8	1	0.118 in	3 mm	Unshielded
Molex 2147531061	Tin	150 mm	0.492 ft	1.02 Ám	40 Áin	Crimp	Plug to Individual Wire Leads	6	1	0.118 in	3 mm	Unshielded	5.91 "
