GBC29S Series

Catalog

CONN HEADER SMD R/A 29POS 2.54MM

Part	Number of Rows	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Post	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Shape	Number of Positions Loaded	Insulation Height	Insulation Height	Insulation Material	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Style	Insulation Color	Mounting Type	Shrouding	Fastening Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Type	Contact Length - Mating [x]

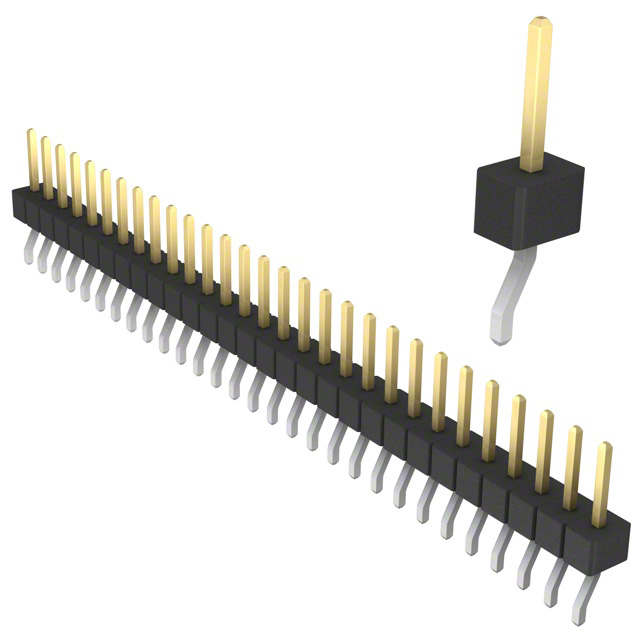

Sullins Connector Solutions GBC29SBSN-M89	1	UL94 V-0	0.1 in	2.54 mm	0.23 in	5.84 mm	Tin	Phosphor Bronze	-65 ░C	150 °C	Gold	Square	All	3.56 mm	0.14 in	Nylon 9T Polyamide (PA9T)	29	2.54 µm	100 µin	3 A	Board to Board Cable	Black	Surface Mount Right Angle	Unshrouded	Push-Pull	Breakaway Header	10 çin	0.25 çm	Solder	Male Pin
Sullins Connector Solutions GBC29SABN-M30	1	UL94 V-0	0.1 in	2.54 mm	0.23 in	5.84 mm	Tin	Phosphor Bronze	-65 ░C	150 °C	Gold	Square	All	2.54 mm	0.1 in	Nylon 9T Polyamide (PA9T)	29	2.54 µm	100 µin	3 A	Board to Board Cable	Black	Surface Mount	Unshrouded	Push-Pull	Breakaway Header	10 çin	0.25 çm	Solder	Male Pin
Sullins Connector Solutions GBC29SFBN-M30	1	UL94 V-0	0.1 in	2.54 mm	0.318 "		Tin	Phosphor Bronze	-65 ░C	150 °C	Gold	Square	All	2.54 mm	0.1 in	Nylon 9T Polyamide (PA9T)	29	2.54 µm	100 µin	3 A	Board to Board Cable	Black	Surface Mount	Unshrouded	Push-Pull	Breakaway Header	10 çin	0.25 çm	Solder	Male Pin	8.08 mm
