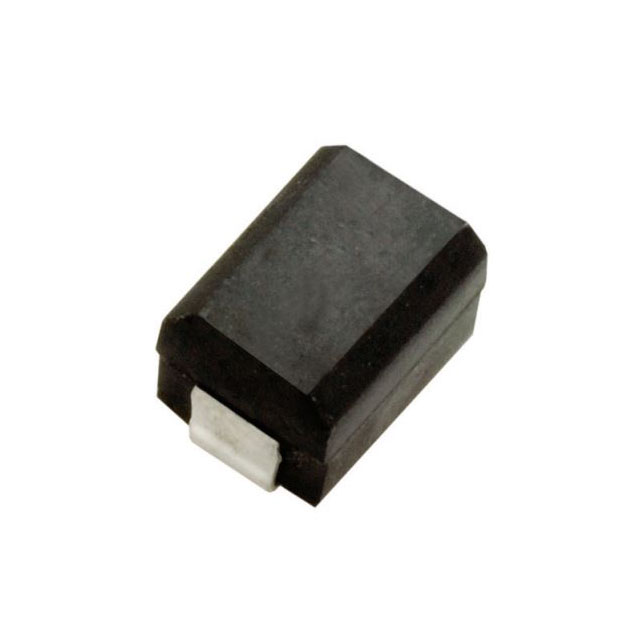

S1812/R Series

Manufacturer: Delevan

Catalog

RF INDUCTORS - SMD 1.8UH 5% 100OHM SHIELDED SMT INDUC

Part	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Tolerance	Inductance	Supplier Device Package	Supplier Device Package	Q @ Freq [custom]	Q @ Freq [custom]	Package / Case	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material - Core	Current Rating (Amps)	Frequency - Self Resonant	Mounting Type	Inductance Frequency - Test	Q @ Freq	DC Resistance (DCR)
Delevan S1812R-182J	-55 C	125 °C	430 mOhm	0.134 in	3.4 mm	5 %	1.8 µH	1812	4532 Metric	40	7.9 MHz	1812 (4532 Metric)	Shielded	0.189 "	3.4 mm	4.8 mm	0.134 in	Ferrite	681 mA	100 MHz	Surface Mount	7.9 MHz
Delevan S1812R-333J	-55 C	125 °C	3 Ohm	0.134 in	3.4 mm	5 %	33 µH	1812	4532 Metric			1812 (4532 Metric)	Shielded	0.189 "	3.4 mm	4.8 mm	0.134 in	Ferrite	258 mA	12 MHz	Surface Mount	2.5 MHz	2.5 MHz 50
Delevan S1812-684K	-55 C	125 °C	32 Ohm	0.134 in	3.4 mm	10 %	680 µH					1812 (4532 Metric)	Shielded	0.177 in	3.2 mm	4.5 mm	0.126 in	Ferrite	0.079 A	2.6 MHz	Surface Mount	790 kHz	40 790 kHz
Delevan MILS1812R-824K	-55 C	125 °C	40 Ohm	0.134 in	3.4 mm	10 %	820 nH					Nonstandard	Shielded	0.189 "	3.4 mm	4.8 mm	0.134 in	Ferrite	71 mA	2.2 MHz	Surface Mount	790 kHz	40 790 kHz
Delevan S1812-272J	-55 C	125 °C	490 mOhm	0.134 in	3.4 mm	5 %	2.7 µH	1812	4532 Metric	40	7.9 MHz	1812 (4532 Metric)	Shielded	0.189 "	3.4 mm	4.8 mm	0.134 in	Ferrite	638 mA	67 MHz	Surface Mount	7.9 MHz
Delevan S1812-394J	-55 C	125 °C	18 Ohm	0.134 in	3.4 mm	5 %	390 µH	1812	4532 Metric			1812 (4532 Metric)	Shielded	0.189 "	3.4 mm	4.8 mm	0.134 in	Ferrite	0.105 A	3.5 MHz	Surface Mount	790 kHz	40 790 kHz
Delevan S1812R-153J	-55 C	125 °C	2.2 Ohm	0.134 in	3.4 mm	5 %	15 µH	1812	4532 Metric			1812 (4532 Metric)	Shielded	0.189 "	3.4 mm	4.8 mm	0.134 in	Ferrite	301 mA	18 MHz	Surface Mount	2.5 MHz	2.5 MHz 50
Delevan S1812-273K	-55 C	125 °C	2.8 Ohm	0.134 in	3.4 mm	10 %	27 µH					1812 (4532 Metric)	Shielded	0.177 in	3.2 mm	4.5 mm	0.126 in	Ferrite	267 mA	13 MHz	Surface Mount	2.5 MHz	2.5 MHz 50
Delevan S1812R-122H	-55 C	125 °C	380 mOhm	0.134 in	3.4 mm	3 %	1.2 µH	1812	4532 Metric	40	7.9 MHz	1812 (4532 Metric)	Shielded	0.189 "	3.4 mm	4.8 mm	0.134 in	Ferrite	725 mA	140 MHz	Surface Mount	7.9 MHz
Delevan S1812-822J	-55 C	125 °C		0.134 in	3.4 mm	5 %	8.2 µH	1812	4532 Metric	40	7.9 MHz	1812 (4532 Metric)	Shielded	0.189 "	3.4 mm	4.8 mm	0.134 in	Ferrite	372 mA	30 MHz	Surface Mount	7.9 MHz		1.44 Ohm
