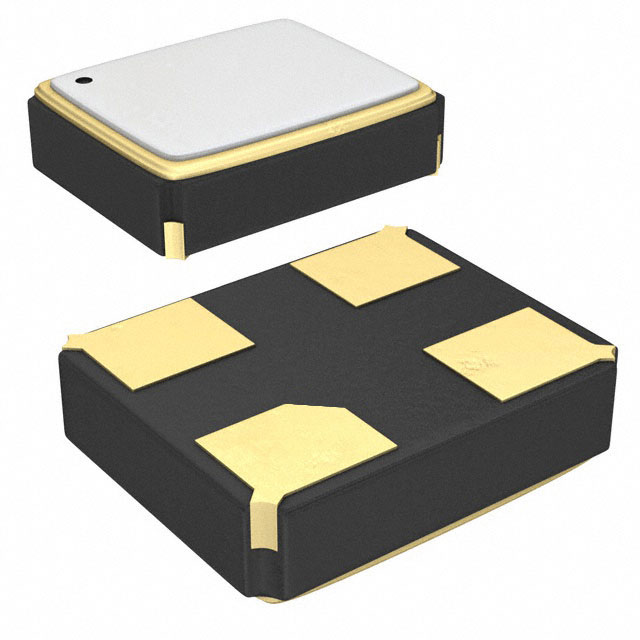

ABM10 Series

Catalog

CRYSTALS XTAL 2520 4-SMD 19.2MHZ TOL +/-20PPM STAB +/-20PPM -20C - 70C 10PF 150 OHMS

Part	Operating Mode	Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency Stability	Load Capacitance	Frequency Tolerance	Package / Case	Mounting Type	Type	ESR (Equivalent Series Resistance)	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Abracon LLC ABM10-19.200MHZ-E20-T	Fundamental	19.2 MHz	-20 ░C	70 °C	0.7 mm	0.028 "	20 ppm	10 pF	20 ppm	4-SMD No Lead	Surface Mount	MHz Crystal	150 Ohms	2	2.5	4-SMD	2.5 mm	0.079 in	0.098 in	2 mm
Abracon LLC ABM10-40.000MHZ-E20-T	Fundamental	40 MHz	-20 ░C	70 °C	0.7 mm	0.028 "	20 ppm	10 pF	20 ppm	4-SMD No Lead	Surface Mount	MHz Crystal	70 Ohm	2	2.5	4-SMD	2.5 mm	0.079 in	0.098 in	2 mm
Abracon LLC ABM10-27.120MHZ-8-A10-T	Fundamental	27.12 MHz	-10 °C	60 °C	0.7 mm	0.028 "	10 ppm	8 pF	20 ppm	4-SMD No Lead	Surface Mount	MHz Crystal	100 Ohms	2	2.5	4-SMD	2.5 mm	0.079 in	0.098 in	2 mm
Abracon LLC ABM10-25.000MHZ-18-R60-4-D30-T	Fundamental	25 MHz	-40 C	85 °C	0.7 mm	0.028 "	30 ppm	18 pF	30 ppm	4-SMD No Lead	Surface Mount	MHz Crystal	60 Ohms	2	2.5	4-SMD	2.5 mm	0.079 in	0.098 in	2 mm
