D3D Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SWITCH SNAP ACT SPST-NO 1A 125V

Part	Features	Actuator Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Position	Operating Position	Mounting Type	Circuit	Ingress Protection	Mechanical Life	Termination Style	Switch Function	Voltage Rating - AC	Operating Force	Electrical Life	Voltage Rating - DC

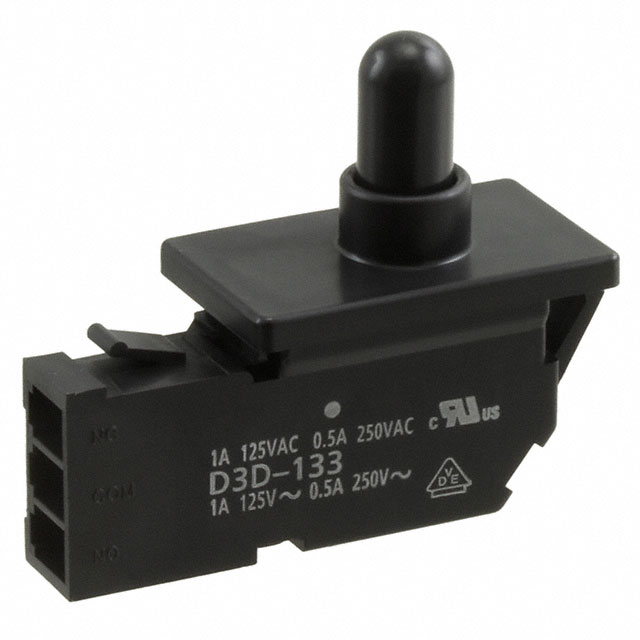

Omron Electronics Inc-EMC Div D3D-133	Black Actuator	Overtravel Plunger	1 A	-30 ░C	60 °C	0.472 in	12 mm	Panel Mount Snap-In	SPST-NO	IP00	300000 Cycles	Connector	Off-Mom	125 V	204 gf	50000 Cycles

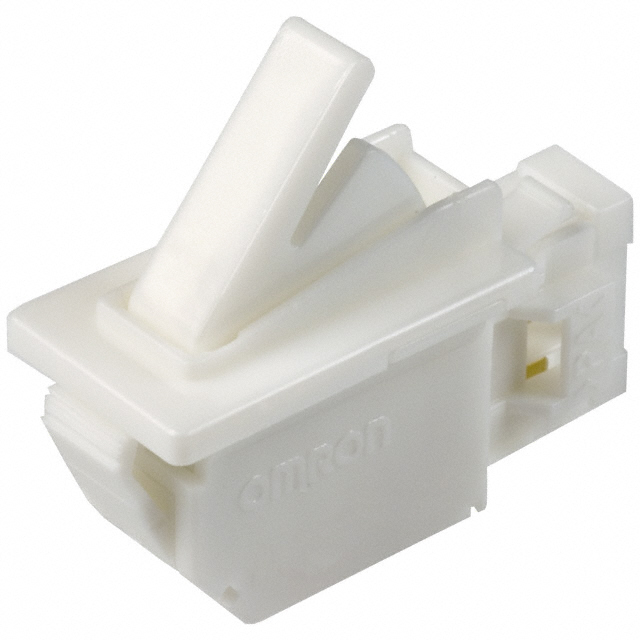

Omron Electronics Inc-EMC Div D3D-231	White Actuator	Angled Toggle (Detector)	1 A	-30 ░C	60 °C	0.453 in	11.5 mm	Panel Mount Snap-In	SPST-NO	IP00	300000 Cycles	Connector	Off-Mom	125 V	204 gf	50000 Cycles

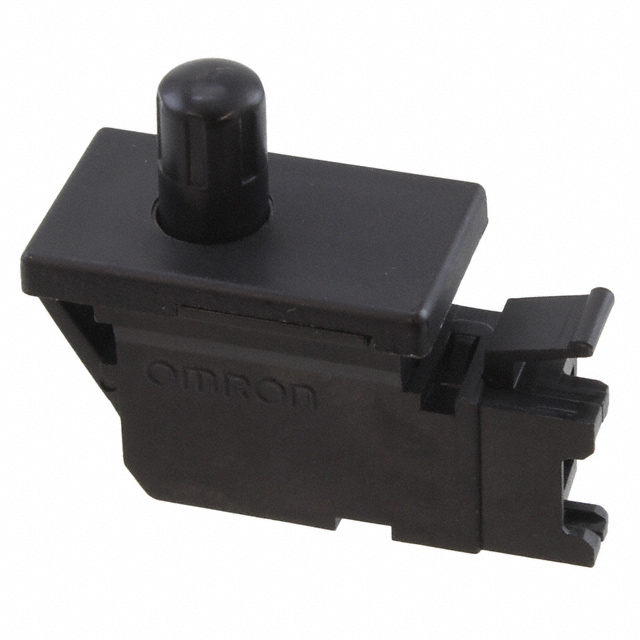

Omron Electronics Inc-EMC Div D3DC-3N	Black Actuator	Round (Pin Plunger)	100 mA	-25 °C	85 °C	0.264 in	6.7 mm	Panel Mount Snap-In	SPST-NO	IP00	100000 Cycles	Connector	Off-Mom		102 gf	100000 Cycles	30 V

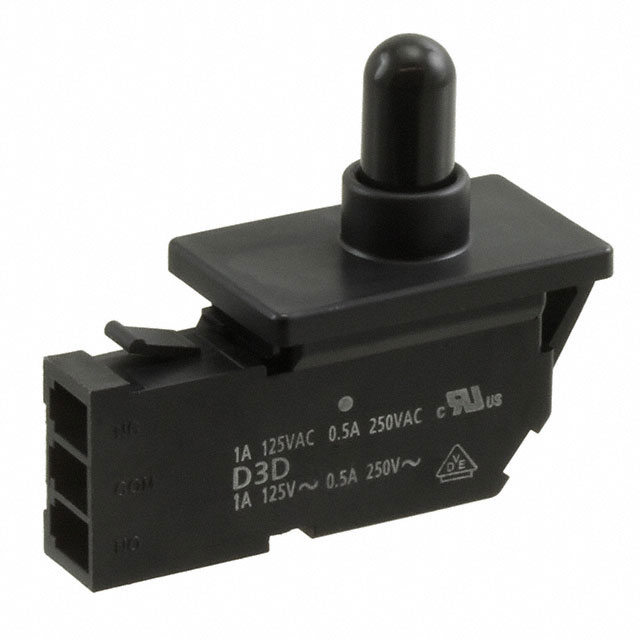

Omron Electronics Inc-EMC Div D3D-123	Black Actuator	Overtravel Plunger	1 A	-30 ░C	60 °C	0.512 in	13 mm	Panel Mount Snap-In	SPST-NC	IP00	300000 Cycles	Connector	On-Mom	125 V	204 gf	50000 Cycles

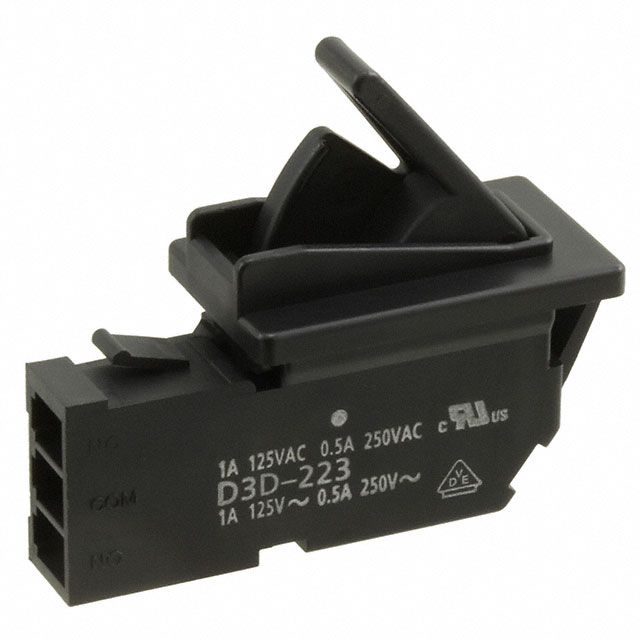

Omron Electronics Inc-EMC Div D3D-223	Black Actuator	Angled Toggle (Detector)	1 A	-30 ░C	60 °C	0.512 in	13 mm	Panel Mount Snap-In	SPST-NC	IP00	300000 Cycles	Connector	On-Mom	125 V	204 gf	50000 Cycles

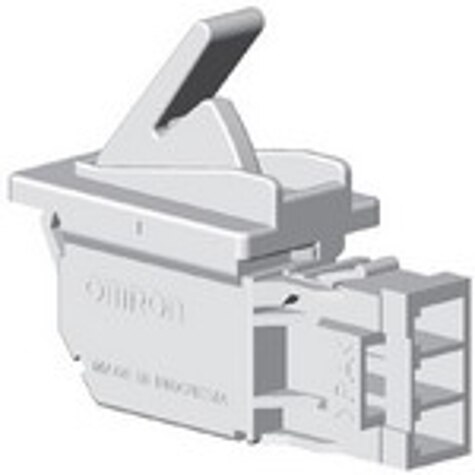

Omron Electronics Inc-EMC Div D3D-221	White Actuator	Angled Toggle (Detector)	1 A	-30 ░C	60 °C	0.512 in	13 mm	Panel Mount Snap-In	SPST-NC	IP00	300000 Cycles	Connector	On-Mom	125 V	204 gf	50000 Cycles

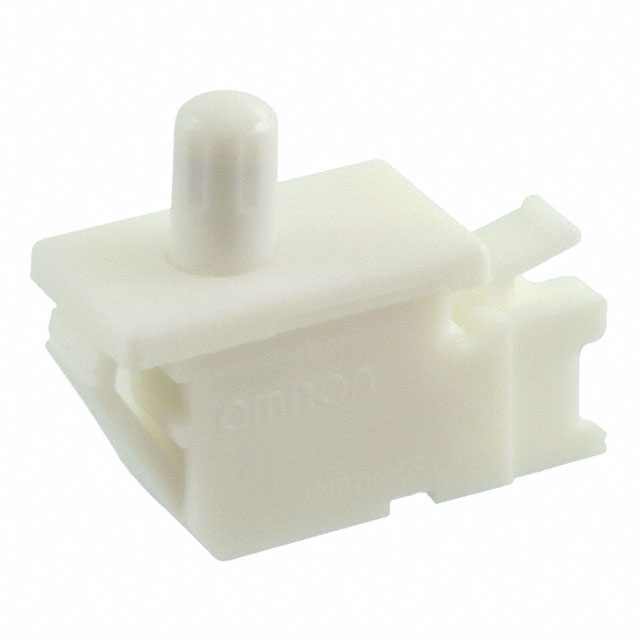

Omron Electronics Inc-EMC Div D3DC-3N-W	White Actuator	Round (Pin Plunger)	100 mA	-25 °C	85 °C	0.264 in	6.7 mm	Panel Mount Snap-In	SPST-NO	IP00	100000 Cycles	Connector	Off-Mom		102 gf	100000 Cycles	30 V

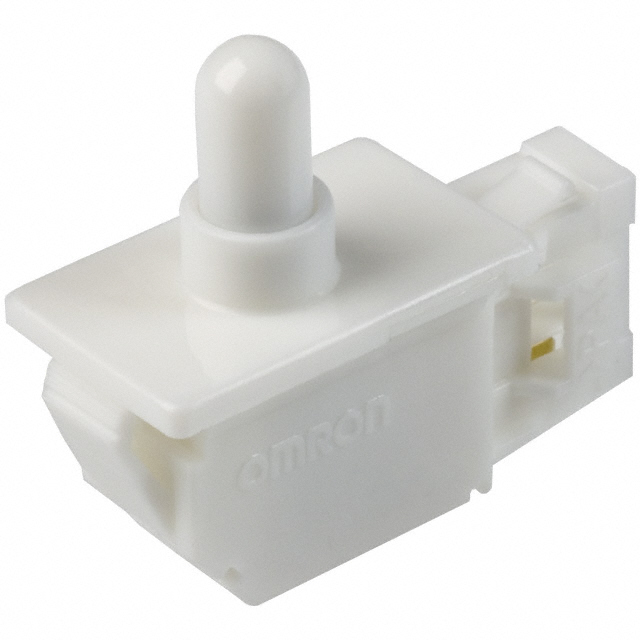

Omron Electronics Inc-EMC Div D3D-131	White Actuator	Overtravel Plunger	1 A	-30 ░C	60 °C	0.472 in	12 mm	Panel Mount Snap-In	SPST-NO	IP00	300000 Cycles	Connector	Off-Mom	125 V	204 gf	50000 Cycles
Omron Electronics Inc-EMC Div D3D-113	Black Actuator	Overtravel Plunger	1 A	-30 ░C	60 °C	0.512 in	13 mm	Panel Mount Snap-In	SPDT	IP00	300000 Cycles	Connector	On-Mom	125 V	204 gf	50000 Cycles

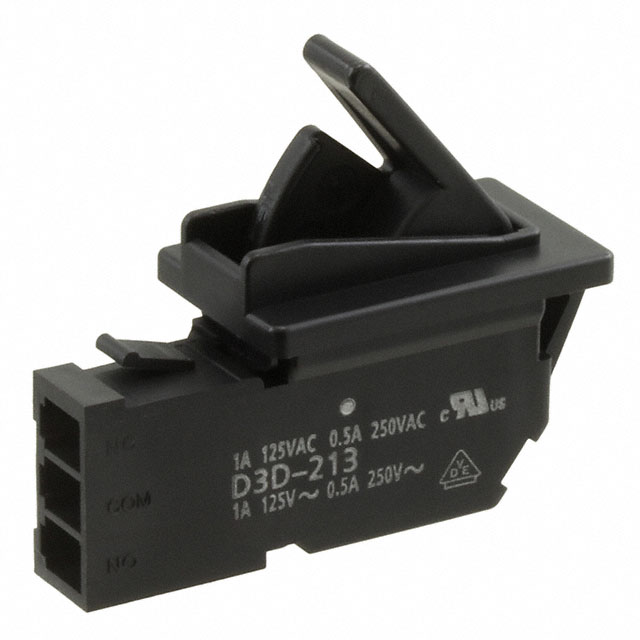

Omron Electronics Inc-EMC Div D3D-213	Black Actuator	Angled Toggle (Detector)	1 A	-30 ░C	60 °C	0.512 in	13 mm	Panel Mount Snap-In	SPDT	IP00	300000 Cycles	Connector	On-Mom	125 V	204 gf	50000 Cycles
