RW-S Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 3W DC/DC MIN 1KV REG 2:1 36-72VIN 9VOUT

Part	Voltage - Output 1	Features	Type	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Mounting Type	Power (Watts)	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Isolation	Number of Outputs	Applications	Efficiency
Recom Power RW-4809S	9 V	SCP	Isolated Module	24-DIP Module 8 Leads	14.7 mm	7 mm	1.27 in	0.58 in	32.3 mm	0.28 "	72 V	Through Hole	3 W	36 V	80 °C	-40 C	333 mA	1000 V	1	ITE (Commercial)

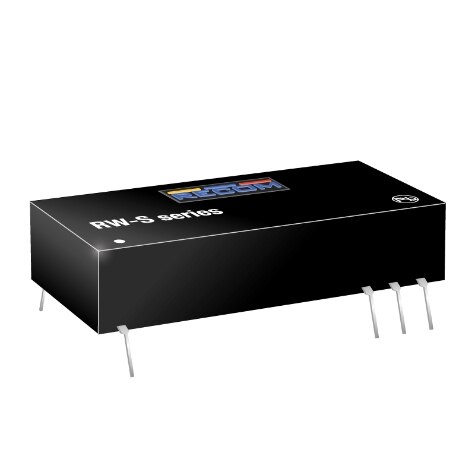

Recom Power RW-4809S/SMD	9 V	SCP	Isolated Module	24-SMD Module 13 Leads	14.5 mm	10.2 mm	1.26 in	0.57 "	32 mm	0.4 "	72 V	Surface Mount	3 W	36 V	80 °C	-40 C	333 mA	1000 V	1	ITE (Commercial)
Recom Power RW-2412S	12 V	SCP	Isolated Module	24-DIP Module 8 Leads	14.7 mm	7 mm	1.27 in	0.58 in	32.3 mm	0.28 "	36 V	Through Hole	3 W	18 V	80 °C	-40 C	250 mA	1000 V	1	ITE (Commercial)	84 %
Recom Power RW-0505S/SMD	5 V	SCP	Isolated Module	24-SMD Module 13 Leads	14.5 mm	10.2 mm	1.26 in	0.57 "	32 mm	0.4 "	9 V	Surface Mount	3 W	4.5 V	80 °C	-40 C	600 mA	1000 V	1	ITE (Commercial)	69 %
Recom Power RW-2415S/SMD	15 V	SCP	Isolated Module	24-SMD Module 13 Leads	14.5 mm	10.2 mm	1.26 in	0.57 "	32 mm	0.4 "	36 V	Surface Mount	3 W	18 V	80 °C	-40 C	200 mA	1000 V	1	ITE (Commercial)	85 %
Recom Power RW-0505S	5 V	SCP	Isolated Module	24-DIP Module 8 Leads	14.7 mm	7 mm	1.27 in	0.58 in	32.3 mm	0.28 "	9 V	Through Hole	3 W	4.5 V	80 °C	-40 C	600 mA	1000 V	1	ITE (Commercial)	69 %
Recom Power RW-1209S/SMD	9 V	SCP	Isolated Module	24-SMD Module 13 Leads	14.5 mm	10.2 mm	1.26 in	0.57 "	32 mm	0.4 "	18 V	Surface Mount	3 W	9 V	80 °C	-40 C	333 mA	1000 V	1	ITE (Commercial)	78 %
Recom Power RW-0512S/SMD	12 V	SCP	Isolated Module	24-SMD Module 13 Leads	14.5 mm	10.2 mm	1.26 in	0.57 "	32 mm	0.4 "	9 V	Surface Mount	3 W	4.5 V	80 °C	-40 C	250 mA	1000 V	1	ITE (Commercial)	72 %
Recom Power RW-4815S	15 V	SCP	Isolated Module	24-DIP Module 8 Leads	14.7 mm	7 mm	1.27 in	0.58 in	32.3 mm	0.28 "	72 V	Through Hole	3 W	36 V	80 °C	-40 C	200 mA	1000 V	1	ITE (Commercial)	85 %
Recom Power RW-1209S	9 V	SCP	Isolated Module	24-DIP Module 8 Leads	14.7 mm	7 mm	1.27 in	0.58 in	32.3 mm	0.28 "	18 V	Through Hole	3 W	9 V	80 °C	-40 C	333 mA	1000 V	1	ITE (Commercial)	78 %
