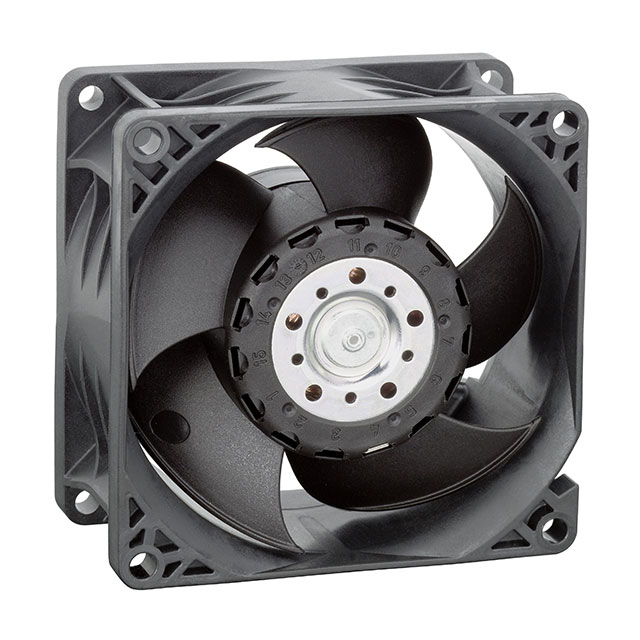

8214J Series

Catalog

FAN AXIAL 80X38MM 24VDC WIRE

Part	Material - Blade	Lifetime @ Temp.	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Noise	Approval Agency	RPM	Width [y]	Voltage - Rated	Fan Type	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Termination	Weight	Weight	Features	Weight [custom]	Weight [custom]	Current Rating (Amps)	Static Pressure	Static Pressure
ebm-papst Inc. 8214JN	Polyamide (PA) Nylon Fiberglass Reinforced	62500 Hrs	78 CFM	2.18 mł/min	26.4 VDC	18 VDC	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	55 dB(A)	CE	8400 RPM	38 mm	24 VDC	Tubeaxial	Ball	80 mm	80 mm	-20 ░C	70 °C	10 W	2 Wire Leads	0.353 lb	160.12 g
ebm-papst Inc. 8214J/2H4	Polyamide (PA) Nylon Fiberglass Reinforced		131 CFM	3.67 mł/min	27.6 VDC	12	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	71 dB(A)			38 mm	24 VDC	Tubeaxial	Ball	80 mm	80 mm	-10 °C	60 °C	38 Watts	3 Wire Leads			Speed Sensor (Tach)	0.44 lb	199.58 g
ebm-papst Inc. 8214J/2H4P		40 °C 50000 Hrs	129.4 CFM	3.62 m³/min	27.6 VDC	12		71 dB(A)	CE CSA UL VDE	14000 RPM		24 VDC	Tubeaxial	Ball	80 mm	80 mm	-20 ░C	70 °C	37 W	4 Wire Leads			PWM Control Speed Sensor (Tach)			0.015 A	2.85 in H2O	709.9 Pa

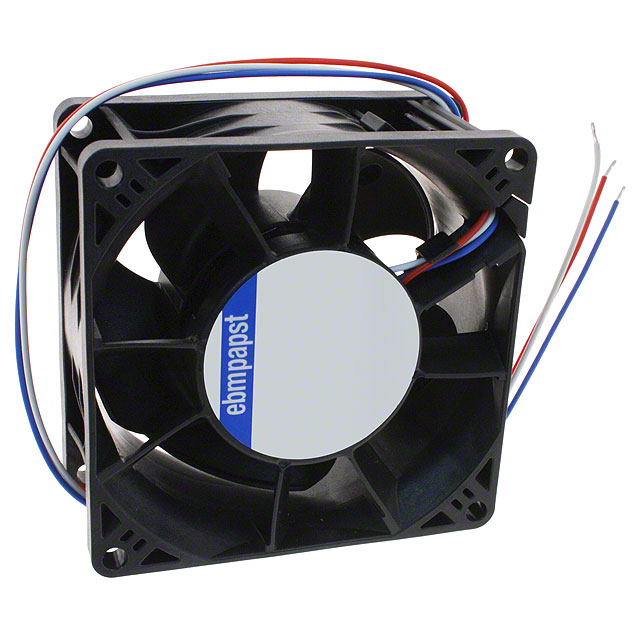

ebm-papst Inc. 8214J/2N	Polyamide (PA) Nylon Fiberglass Reinforced	62500 Hrs	78 CFM	2.18 mł/min	26.4 VDC	18 VDC	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	55 dB(A)		8400 RPM	38 mm	24 VDC	Tubeaxial	Ball	80 mm	80 mm	-20 ░C	70 °C	10 W	3 Wire Leads			Locked Rotor Protection Speed Sensor (Tach)
ebm-papst Inc. 8214JH3	Polyamide (PA) Nylon Fiberglass Reinforced	55000 Hrs	112 CFM	3.14 mł/min	27.6 VDC	12	Fiberglass Reinforced Polybutylene Terephthalate (PBT)			12000 RPM	38 mm	24 VDC	Tubeaxial	Ball	80 mm	80 mm	-20 ░C	70 °C	26 W	2 Wire Leads	0.353 lb	160.12 g
