FI-J40 Series

Catalog

CONN PLUG 40POS SOLDER 42-44AWG

Part	Color	Number of Rows	Pitch	Pitch	Connector Type	Contact Type	Wire Gauge [Max]	Wire Gauge [Min]	Cable Termination	Number of Positions	Contact Finish	Mounting Type	Insulation Material	Contact Finish Thickness - Post	Contact Material	Applications	Contact Finish - Post	Insulation Height	Insulation Height	Termination	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insulation Color	Contact Finish - Mating	Fastening Type	Mated Stacking Heights	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Features	Material Flammability Rating	For Use With/Related Products	Accessory Type
JAE Electronics FI-J40C5-T3000	Black	1	0.4 mm	0.016 in	Plug	Non-Gender Specific	-1 AWG	-2 AWG	Solder	40	Gold	Free Hanging (In-Line)
JAE Electronics FI-J40C5	Black	1	0.4 mm	0.016 in	Plug	Non-Gender Specific	-1 AWG	-2 AWG	Solder	40	Gold	Free Hanging (In-Line)
JAE Electronics FI-J40S-VF15N-R3000		1			Receptacle	Non-Gendered				40		Surface Mount	Plastic	Flash	Copper Alloy	General Purpose	Gold	0.046 in	1.16 mm	Solder	50 V	85 °C	-40 C	Board to Cable/Wire	3.9 µin	0.099 µm	0.3 A	Black	Gold	Friction Lock	1.58 mm	All	0.4 mm	0.016 in	Pick and Place Solder Retention	UL94 V-0
JAE Electronics FI-J40C2-SH-D-10000										40																											FI-J Series	Cap (Cover)

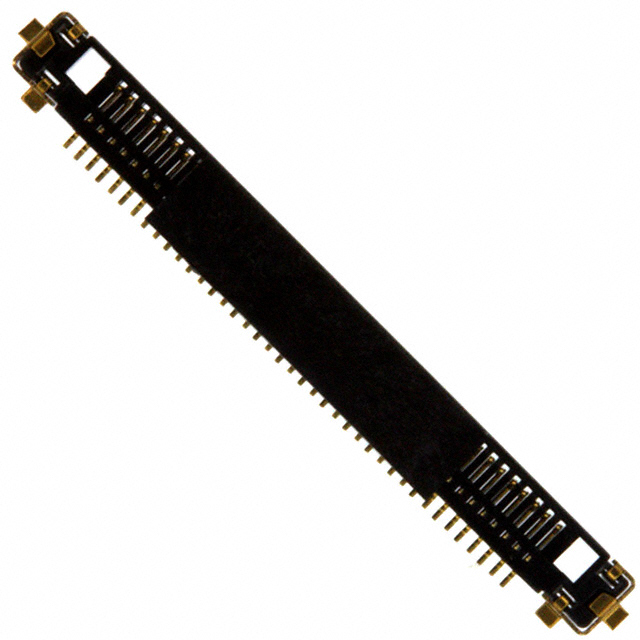

JAE Electronics FI-J40S-VF15N		1			Receptacle	Non-Gendered				40		Surface Mount	Plastic	Flash	Copper Alloy	General Purpose	Gold	0.046 in	1.16 mm	Solder	50 V	85 °C	-40 C	Board to Cable/Wire	3.9 µin	0.099 µm	0.3 A	Black	Gold	Friction Lock	1.58 mm	All	0.4 mm	0.016 in	Pick and Place Solder Retention	UL94 V-0
