9184 Series
Manufacturer: Belden Inc.
Beta
⌘K

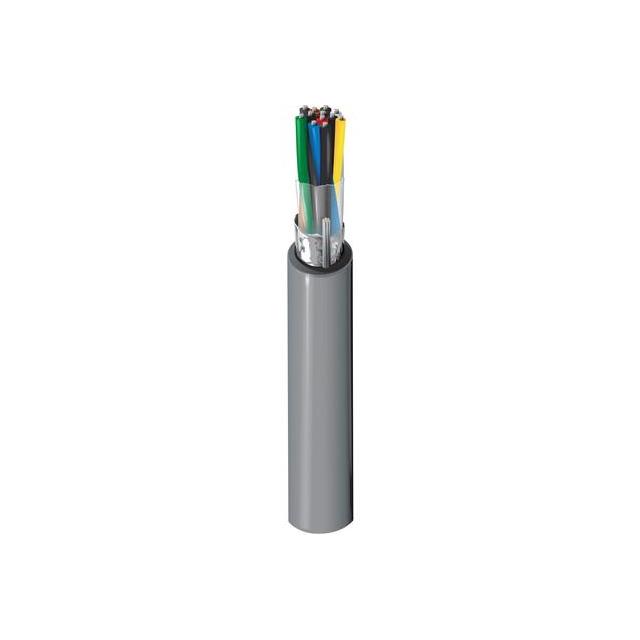

MULTI-PAIR 4COND 22AWG BLK
| Part | Shield Material | Shield Coverage | Length | Length | Usage | Conductor Insulation | Conductor Strand | Wire Gauge | Conductor Material | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Number of Conductors | Jacket Color | Ratings | Cable Type | Shield Type | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 152.4 m | 500 ft | Audio Control Instrumentation | Foam Polyethylene (FPE) | Solid | 22 AWG | Copper Tinned | 300 VDC | 1.041 mm | 0.041 in | Poly-Vinyl Chloride (PVC) | 4 | Black | UL Style 2668 | Multi-Pair | Foil | Drain Wire | 10.16 mm | 0.4 in |
Belden Inc. | Aluminum | 100 % | 304.8 m | 1000 ft | Audio Control Instrumentation | Foam Polyethylene (FPE) | Solid | 22 AWG | Copper Tinned | 300 VDC | 1.041 mm | 0.041 in | Poly-Vinyl Chloride (PVC) | 4 | Black | UL Style 2668 | Multi-Pair | Foil | Drain Wire | 10.16 mm | 0.4 in |
