862-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN HEADER SMD 4POS 1.78MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Termination	Contact Finish - Post	Contact Type	Insulation Color	Connector Type	Shrouding	Number of Rows	Contact Shape	Number of Positions Loaded	Fastening Type	Contact Finish - Mating	Insulation Material	Number of Positions	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post
Mill-Max Manufacturing Corp. 862-10-004-30-180000	10 Áin	0.25 çm	Surface Mount	Solder	Gold	Male Pin	Black	Header	Unshrouded	1	Circular	All	Push-Pull	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	4	0.142 in	3.61 mm	0.07 in	1.78 mm	Brass Alloy	0.25 µm	10 µin
Mill-Max Manufacturing Corp. 862-10-014-00-180000	10 Áin	0.25 çm	Through Hole	Solder	Gold	Male Pin	Black	Header	Unshrouded	1	Circular	All	Push-Pull	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	14	0.142 in	3.61 mm	0.07 in	1.78 mm	Brass Alloy	0.25 µm	10 µin	0.399 in	10.13 mm	2.97 mm	0.117 in
Mill-Max Manufacturing Corp. 862-10-017-00-180000	10 Áin	0.25 çm	Through Hole	Solder	Gold	Male Pin	Black	Header	Unshrouded	1	Circular	All	Push-Pull	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)		0.142 in	3.61 mm	0.07 in	1.78 mm	Brass Alloy	0.25 µm	10 µin	0.399 in	10.13 mm	2.97 mm	0.117 in
Mill-Max Manufacturing Corp. 862-10-019-00-180000	10 Áin	0.25 çm	Through Hole	Solder	Gold	Male Pin	Black	Header	Unshrouded	1	Circular	All	Push-Pull	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	19	0.142 in	3.61 mm	0.07 in	1.78 mm	Brass Alloy	0.25 µm	10 µin	0.399 in	10.13 mm	2.97 mm	0.117 in

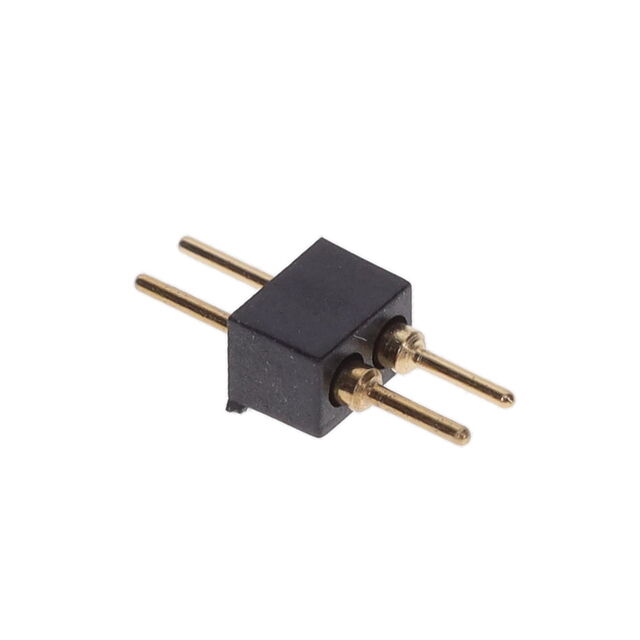

Mill-Max Manufacturing Corp. 862-10-002-00-180000	10 Áin	0.25 çm	Through Hole	Solder	Gold	Male Pin	Black	Header	Unshrouded	1	Circular	All	Push-Pull	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	2	0.142 in	3.61 mm	0.07 in	1.78 mm	Brass Alloy	0.25 µm	10 µin	0.399 in	10.13 mm	2.97 mm	0.117 in

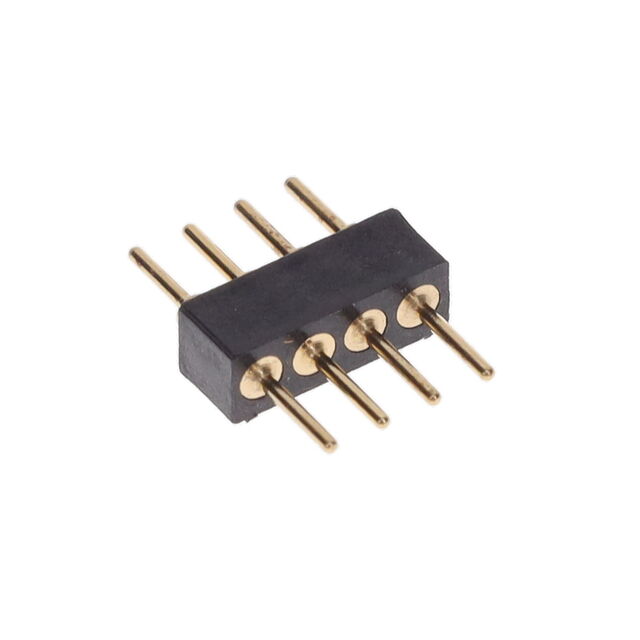

Mill-Max Manufacturing Corp. 862-10-004-00-180000	10 Áin	0.25 çm	Through Hole	Solder	Gold	Male Pin	Black	Header	Unshrouded	1	Circular	All	Push-Pull	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	4	0.142 in	3.61 mm	0.07 in	1.78 mm	Brass Alloy	0.25 µm	10 µin	0.399 in	10.13 mm	2.97 mm	0.117 in
Mill-Max Manufacturing Corp. 862-10-021-30-180000	10 Áin	0.25 çm	Surface Mount	Solder	Gold	Male Pin	Black	Header	Unshrouded	1	Circular	All	Push-Pull	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	21	0.142 in	3.61 mm	0.07 in	1.78 mm	Brass Alloy	0.25 µm	10 µin
Mill-Max Manufacturing Corp. 862-10-007-30-180000	10 Áin	0.25 çm	Surface Mount	Solder	Gold	Male Pin	Black	Header	Unshrouded	1	Circular	All	Push-Pull	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	7	0.142 in	3.61 mm	0.07 in	1.78 mm	Brass Alloy	0.25 µm	10 µin
Mill-Max Manufacturing Corp. 862-10-014-30-180000	10 Áin	0.25 çm	Surface Mount	Solder	Gold	Male Pin	Black	Header	Unshrouded	1	Circular	All	Push-Pull	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	14	0.142 in	3.61 mm	0.07 in	1.78 mm	Brass Alloy	0.25 µm	10 µin
Mill-Max Manufacturing Corp. 862-10-009-30-180000	10 Áin	0.25 çm	Surface Mount	Solder	Gold	Male Pin	Black	Header	Unshrouded	1	Circular	All	Push-Pull	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	9	0.142 in	3.61 mm	0.07 in	1.78 mm	Brass Alloy	0.25 µm	10 µin
