1XE30 Series

Catalog

MICROSWITCH, SUBMINIATURE, PIN PLUNGER, SPDT, WIRE LEADED, 1 A, 28 VDC

Part	Features	Operating Force [Max]	Operating Force [Min]	Switch Function	Voltage Rating - DC	Circuit	Differential Travel	Differential Travel	Current Rating (Amps)	Mounting Type	Release Force	Overtravel [custom]	Overtravel [custom]	Actuator Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Operating Position	Operating Position	Pretravel	Pretravel

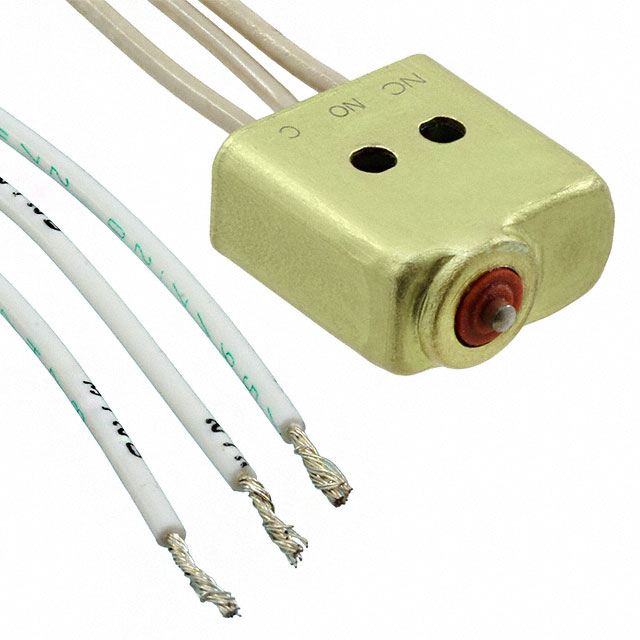

Honeywell Sensing and Productivity Solutions 1XE301	1 ft	482 gf	141 gf	On-Mom	28 V	SPDT	0.005 in	0.13 mm	1 A	Chassis Mount	113 gf	0.004 in	0.1 mm	Round (Pin Plunger)	Wire Leads	105 ░C	-54 °C	10.8 mm	0.425 in	0.05 in	1.27 mm
Honeywell Sensing and Productivity Solutions 1XE306		482 gf	141 gf	Off-Mom	28 V	SPST-NO	0.005 in	0.13 mm	7 A	Chassis Mount	113 gf	0.004 in	0.1 mm	Round (Pin Plunger)	Wire Leads	105 ░C	-53 °C	10.8 mm	0.425 in	0.05 in	1.27 mm
