430885 Series

Catalog

PELTIER UT9,28,F2,4040,TA,W6

Part	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Height [z]	Current - Max [Max]	Number of Stages	Qmax @ Th	Voltage - Max [Max]	Delta Tmax @ Th	Operating Temperature

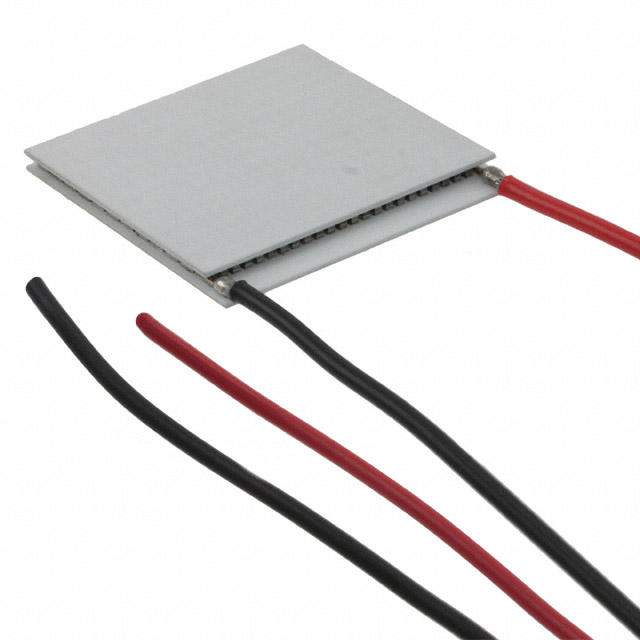

Laird Thermal Systems, Inc. 430885-601	Lead Wires Non-Sealed	44 mm	40 mm	Rectangular	2.79 mm	9.2 A	1	206 W	36.7 V	68 °C	80 °C
