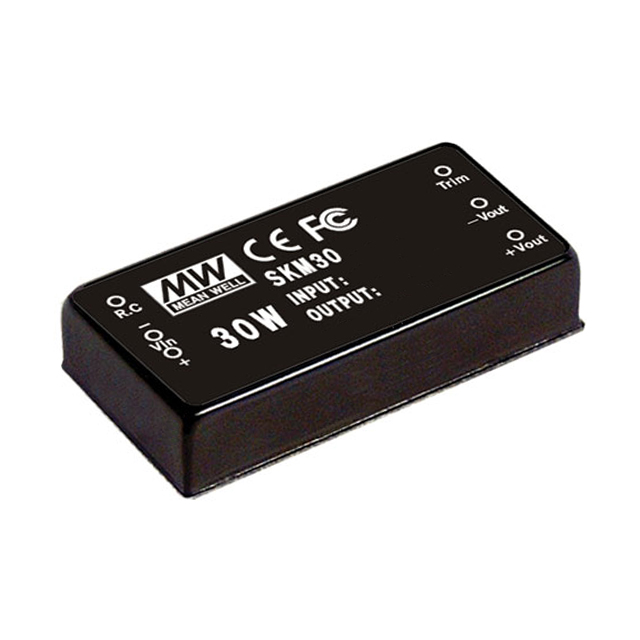

SKM30 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 5V 30W
| Part | Voltage - Input (Min) [Min] | Efficiency | Voltage - Isolation | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Applications | Type | Package / Case | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 1 | Number of Outputs | Features | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 18 V | 88.5 % | 1.5 kV | 30 Watts | 75 °C | -40 °C | 36 V | ITE (Commercial) | Isolated Module | 6-DIP Module | Through Hole | 11.2 mm | 1 " | 2 in | 50.8 mm | 25.4 mm | 0.44 in | 5 V | 1 | OCP OVP Remote On/Off SCP | 6 A |
MEAN WELL USA Inc. | 18 V | 90 % | 1.5 kV | 30 Watts | 75 °C | -40 °C | 36 V | ITE (Commercial) | Isolated Module | 6-DIP Module | Through Hole | 11.2 mm | 1 " | 2 in | 50.8 mm | 25.4 mm | 0.44 in | 15 V | 1 | OCP OVP Remote On/Off SCP | 2 A |
MEAN WELL USA Inc. | 36 V | 89 % | 1.5 kV | 30 Watts | 75 °C | -40 °C | 75 V | ITE (Commercial) | Isolated Module | 6-DIP Module | Through Hole | 11.2 mm | 1 " | 2 in | 50.8 mm | 25.4 mm | 0.44 in | 12 V | 1 | OCP OVP Remote On/Off SCP | 2.5 A |
