SMS12 Series
Manufacturer: Souriau-Sunbank by Eaton
Catalog
SMS STRAIN RELIEF HOOD
| Part | For Use With/Related Products | Accessory Type | Number of Positions | Contact Finish - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Features | Contact Shape | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Type | Mounting Type | Style | Ingress Protection | Material Flammability Rating | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Number of Positions Loaded | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Number of Rows | Color | Contact Termination | Pitch [x] | Pitch [x] | Insulation Material | Row Spacing | Row Spacing | Note | Shrouding | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

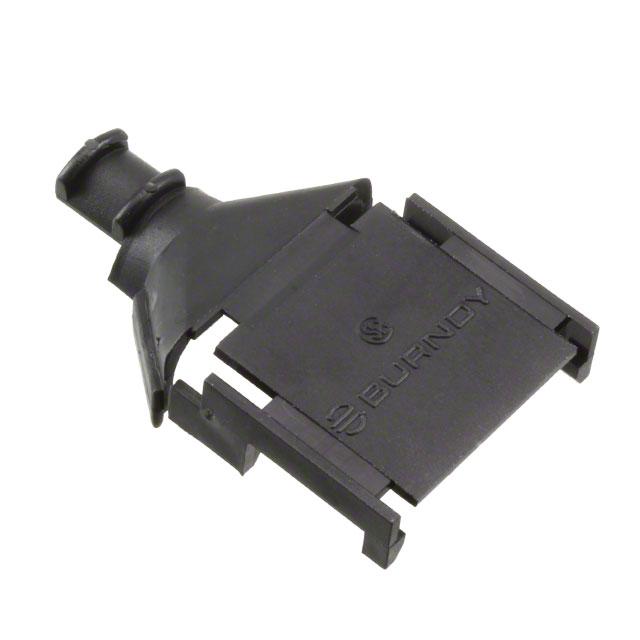

 Souriau-Sunbank by Eaton | SMS Series | Strain Relief | 12 | |||||||||||||||||||||||||||||||||||||||||
 Souriau-Sunbank by Eaton | 12 | Gold | 5.08 mm | 0.2 " | Mounting Flange | Circular | Black | 5.08 mm | 0.2 in | Female Socket | Through Hole | Board to Board Cable | IP40 | UL94 V-0 | 7.5 A | 105 ░C | -55 °C | Receptacle | All | Copper Alloy | 0.134 in | 3.4 mm | Solder | 16 Áin | 0.41 Ám | Locking Ramp | ||||||||||||||||||

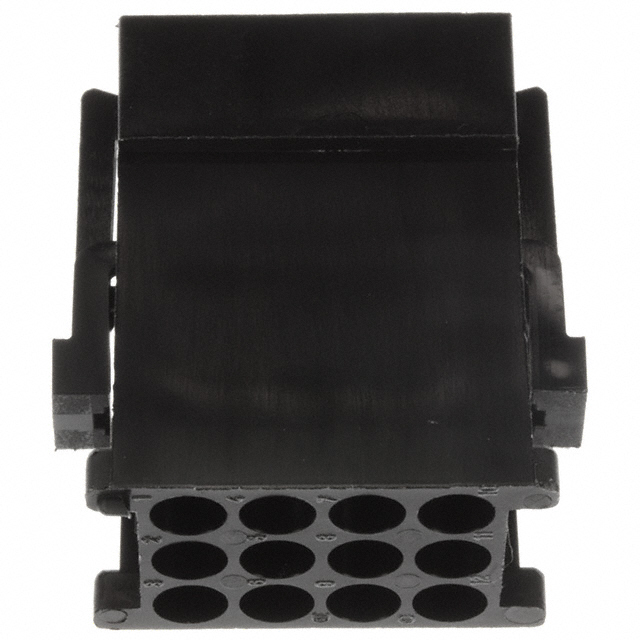

 Souriau-Sunbank by Eaton | 12 | Male Pin | Free Hanging (In-Line) | 105 ░C | -40 °C | Plug | Latch Holder | 3 | Black | Crimp | 0.2 in | 5.08 mm | Polyamide (PA66) Nylon 6/6 | 5.08 mm | 0.2 in | Contacts Not Included | ||||||||||||||||||||||||||||

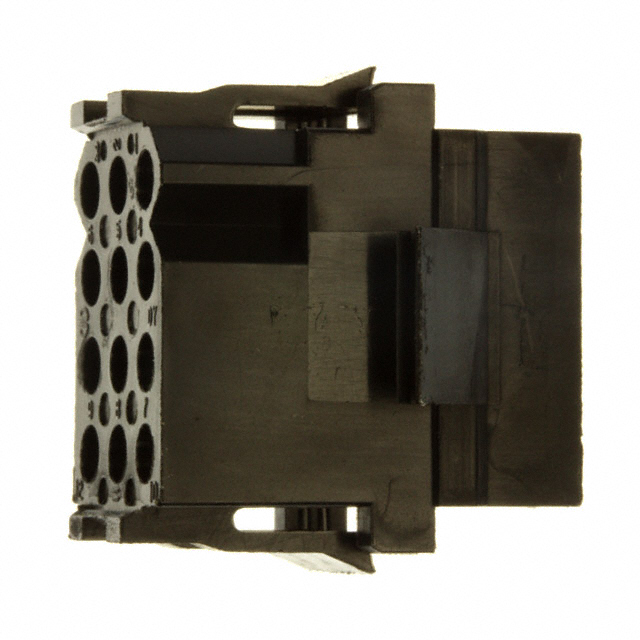

 Souriau-Sunbank by Eaton | 12 | Female Socket | Panel Mount Snap-In | 105 ░C | -40 °C | Receptacle | Latch Lock | 3 | Black | Crimp | 0.2 in | 5.08 mm | Polyamide (PA66) Nylon 6/6 | 5.08 mm | 0.2 in | Contacts Not Included | ||||||||||||||||||||||||||||
 Souriau-Sunbank by Eaton | 12 | Gold | 5.08 mm | 0.2 " | Mounting Flange | Circular | Black | 5.08 mm | 0.2 in | Male Pin | Through Hole Right Angle | Board to Cable/Wire | IP40 | UL94 V-0 | 7.5 A | 105 ░C | -55 °C | Header | All | Brass | Solder | 16 Áin | 0.41 Ám | Locking Ramp | Polyester Glass Filled | Unshrouded | 17.2 mm | 0.677 in | 0.28 in | 7.11 mm | 0.177 in | 4.5 mm | ||||||||||||

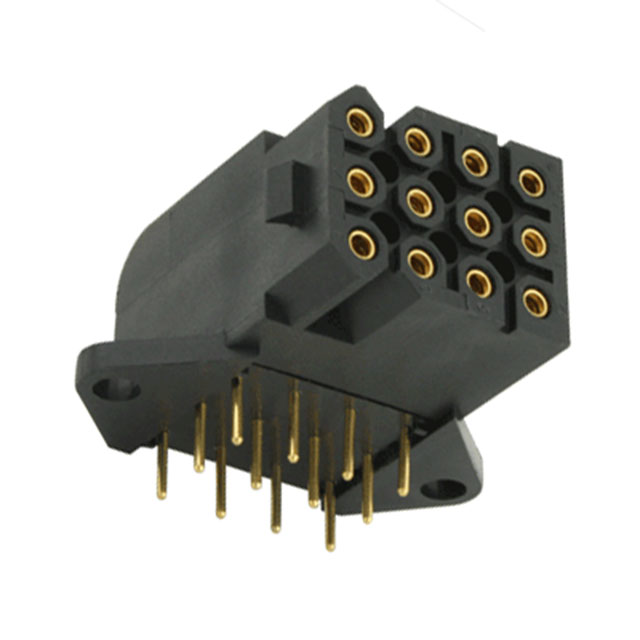

 Souriau-Sunbank by Eaton | 12 | Gold | 5.08 mm | 0.2 " | Mounting Flange | Circular | Black | 5.08 mm | 0.2 in | Female Socket | Through Hole Right Angle | Board to Board Cable | IP40 | UL94 V-0 | 7.5 A | 105 ░C | -55 °C | Receptacle | All | Copper Alloy | Solder | 16 Áin | 0.41 Ám | Locking Ramp | 17.2 mm | 0.677 in | 0.177 in | 4.5 mm |
