MSS20 Series

Catalog

RF DIODE SCHOTTKY 1V 100MW 0402

Part	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Package / Case	Power Dissipation (Max) [Max]	Current - Max [Max]	Supplier Device Package	Capacitance @ Vr, F	Voltage - Peak Reverse (Max)

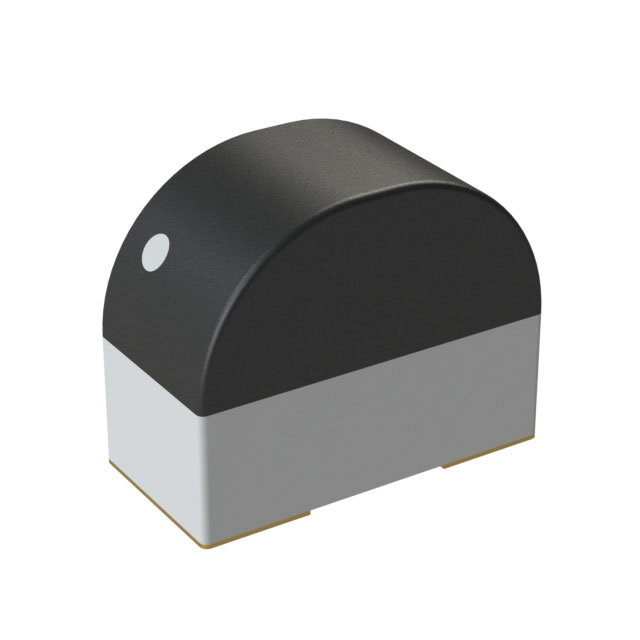

MACOM Technology Solutions MSS20-141-0402	150 °C	-65 ░C	Schottky - Single	0402 (1005 Metric)	100 mW	35 mA	0402	0.15 pF	1 V
MACOM Technology Solutions MSS20-047-T86	150 °C	-65 °C	Schottky - Single	T86	100 mW		T86	0.31 pF

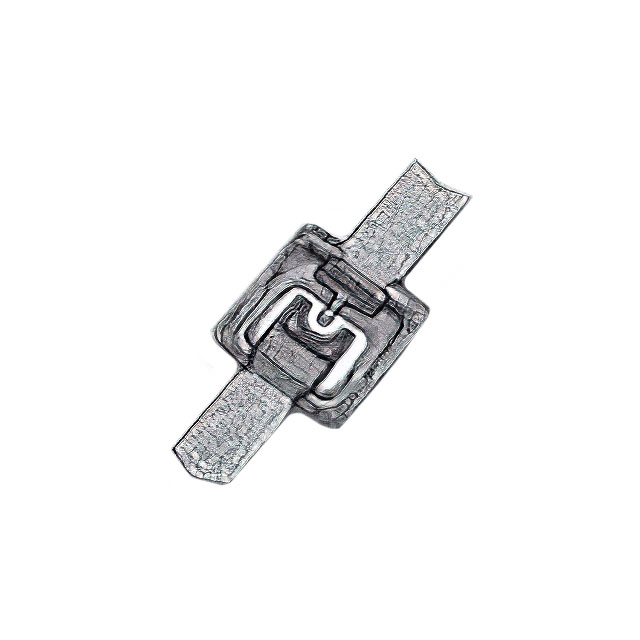

MACOM Technology Solutions MSS20-141-B10D	150 °C	-65 ░C	Schottky - Single	B10D	100 mW	35 mA	B10D	0.08 pF	1 V

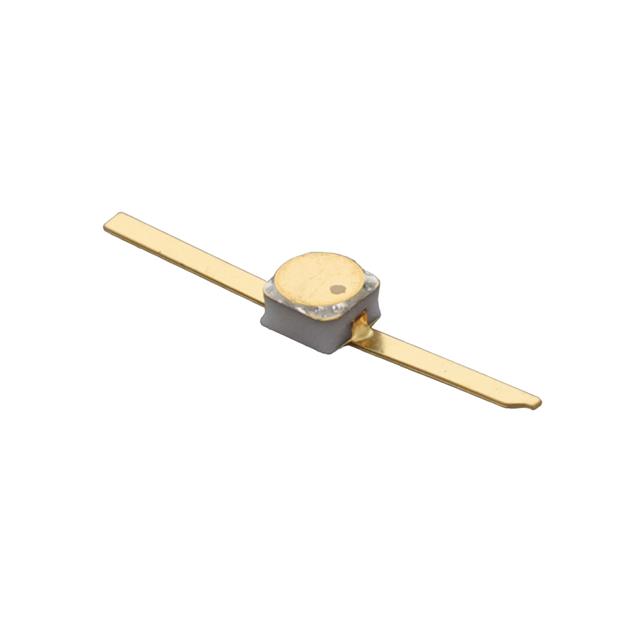

MACOM Technology Solutions MSS20-051-H27	150 °C	-65 ░C	Schottky - Single	H27	100 mW	35 mA	H27	0.27 pF	1 V
