APGF0606S Series

Catalog

LED GREEN/RED CLEAR 4SMD

Part	Height (Max) [z]	Supplier Device Package	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Viewing Angle	Color	Lens Color	Millicandela Rating	Package / Case	Wavelength - Dominant	Lens Transparency	Lens Style	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Configuration	Current - Test	Lens Size	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant	Current - Test
Kingbright APGF0606SEEKCGKCTTC2	0.25 mm	4-SMD	572 nm 632 nm	1.92 V 1.95 V	140 °	Green Red	Colorless	8 mcd 80 mcd	4-SMD No Lead	571 nm 624 nm	Clear	Square with Flat Top	0.65 mm	0.65 mm	Surface Mount	Independent	5 mA 5 mA	0.65 mm

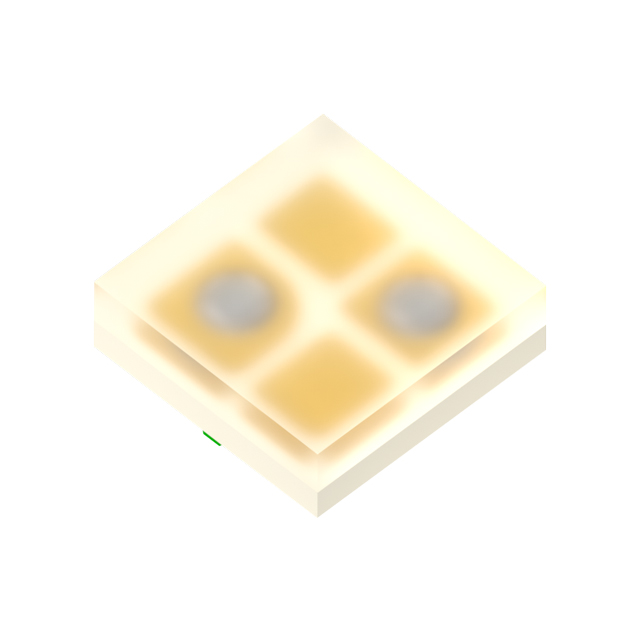

Kingbright APGF0606SYKCGK-TT-C2	0.25 mm	4-SMD	572 nm 591 nm	1.92 V 1.97 V	140 °	Green Yellow	Colorless	8 mcd 17 mcd	4-SMD No Lead	571 nm 589 nm	Clear	Square with Flat Top	0.65 mm	0.65 mm	Surface Mount	Independent	5 mA	0.65 mm
Kingbright APGF0606SEEKSYKXC-TT	0.25 mm	4-SMD	591 nm 632 nm	1.95 V 1.97 V	140 °	Red Yellow	Colorless		4-SMD No Lead		Clear	Square with Flat Top	0.65 mm	0.65 mm	Surface Mount	Common Anode		0.65 mm	17 mcd	80 mcd	589nm Yellow 624nm Red	5mA Red 5mA Yellow

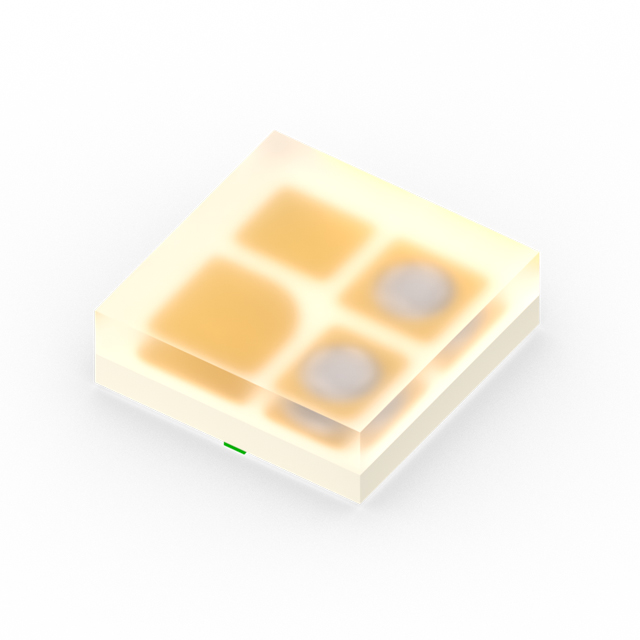

Kingbright APGF0606SEEKCGKXC-TT	0.25 mm	4-SMD	572 nm 632 nm	1.92 V 1.95 V	140 °	Green Red	Colorless	8 mcd 80 mcd	4-SMD No Lead	571 nm 624 nm	Clear	Square with Flat Top	0.65 mm	0.65 mm	Surface Mount	Common Anode	5 mA 5 mA	0.65 mm
