KF22X Series

Catalog

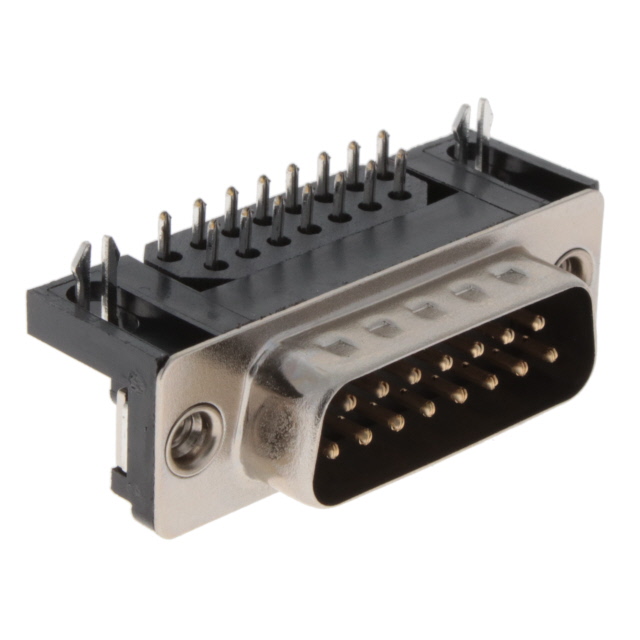

CONN D-SUB PLUG 15POS R/A SOLDER

Part	Dielectric Material	Contact Material	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Color	Voltage Rating	Shell Size, Connector Layout	Termination	Current Rating (Amps)	Flange Feature	Flange Feature	Features	Mounting Type	Contact Finish	Backset Spacing	Backset Spacing	Contact Type	Number of Positions	Connector Type	Contact Finish Thickness	Material Flammability Rating	Shell Material, Finish	Connector Style	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Shell Size, Connector Layout [x]
Kycon, Inc. KF22X-A15P-N	Polybutylene Terephthalate (PBT) Glass Filled	Brass	Stamped	-55 C	105 ░C	Black	30 VDC	2	Solder	2 A	Housing/Shell	4-40	Board Lock Grounding Indents	Right Angle Through Hole	Gold	8.08 mm	0.318 "	Signal	15	Plug Male Pins	Flash	UL94 V-0	Nickel Plated Steel	D-Sub	2
Kycon, Inc. KF22X-C37P-NJ30								4	Solder	2 A	4-40 Mating Side Female Screwlock		Board Lock Grounding Indents	Right Angle Through Hole	Gold	8.08 mm	0.318 "	Signal	37	Plug Male Pins		UL94 V-0	Nickel Plated Steel	D-Sub	2	30 Áin	0.76 Ám	DC C
Kycon, Inc. KF22X-A15P-NJ	Polybutylene Terephthalate (PBT) Glass Filled	Brass	Stamped	-55 C	105 ░C	Black	30 VDC	2	Solder	2 A	4-40 Mating Side Female Screwlock		Board Lock Grounding Indents	Right Angle Through Hole	Gold	8.08 mm	0.318 "	Signal	15	Plug Male Pins	Flash	UL94 V-0	Nickel Plated Steel	D-Sub	2
Kycon, Inc. KF22X-B25P-NJ30									Solder	2 A	4-40 Mating Side Female Screwlock		Board Lock Grounding Indents	Right Angle Through Hole	Gold	8.08 mm	0.318 "	Signal	25	Plug Male Pins		UL94 V-0	Nickel Plated Steel	D-Sub	2	30 Áin	0.76 Ám	B DB	3
Kycon, Inc. KF22X-C37S-NJ	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	Stamped	-55 C	105 ░C	Black	30 VDC	4	Solder	2 A	4-40 Mating Side Female Screwlock		Board Lock	Right Angle Through Hole	Gold	8.08 mm	0.318 "	Signal	37	Receptacle Female Sockets	Flash	UL94 V-0	Nickel Plated Steel	D-Sub	2			DC C
