865635 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

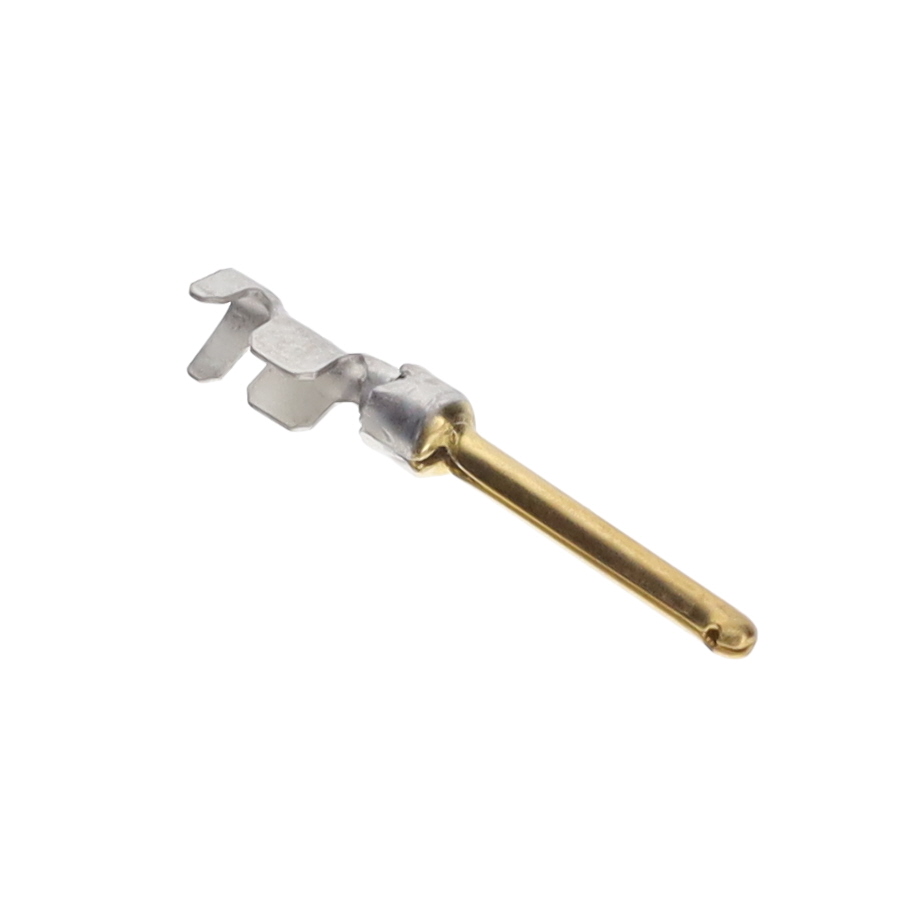

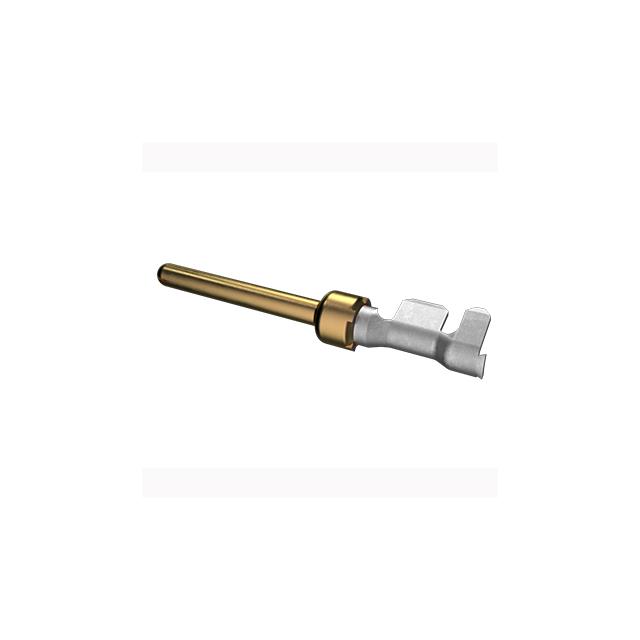

CONN D-SUB PIN 20-24AWG CRIMP
| Part | Contact Termination | Contact Type | Contact Material | Wire Gauge [Min] | Wire Gauge [Max] | Features | Contact Finish | Contact Form | Termination Finish | Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Crimp | Male Pin | Phosphor Bronze | 20 AWG | 24 AWG | Insulation Support | Gold or Gold GXT™ | Stamped | Tin | Signal | 16 µin | 0.41 µm | |
Amphenol ICC (FCI) | Crimp | Male Pin | Phosphor Bronze | 20 AWG | 28 AWG | Insulation Support | Gold | Stamped | Tin | Signal | 16 µin | 0.41 µm | |
 Amphenol ICC (FCI) | Crimp | Female Socket | Phosphor Bronze | 20 AWG | 24 AWG | Insulation Support | Gold | Stamped | Tin | Signal | Flash | ||
Amphenol ICC (FCI) | Crimp | Male Pin | Phosphor Bronze | 24 AWG | 28 AWG | Insulation Support | Gold | Stamped | Tin | Signal | 30 Áin | 0.76 Ám | |
Amphenol ICC (FCI) | Crimp | Male Pin | Phosphor Bronze | 24 AWG | 28 AWG | Insulation Support | Gold or Gold GXT™ | Stamped | Tin | Signal | 30 Áin | 0.76 Ám | |
Amphenol ICC (FCI) | Crimp | Female Socket | Phosphor Bronze | 24 AWG | 28 AWG | Insulation Support | Gold or Gold GXT™ | Stamped | Tin | Signal | 16 µin | 0.41 µm | |
Amphenol ICC (FCI) | Crimp | Male Pin | Phosphor Bronze | 20 AWG | 24 AWG | Insulation Support | Gold or Gold GXT™ | Stamped | Tin | Signal | 30 Áin | 0.76 Ám | |
 Amphenol ICC (FCI) | Crimp | Female Socket | Phosphor Bronze | 24 AWG | 28 AWG | Insulation Support | Gold | Stamped | Tin-Lead | Signal | 30 Áin | 0.76 Ám | |
Amphenol ICC (FCI) | Crimp | Female Socket | Phosphor Bronze | 24 AWG | 28 AWG | Insulation Support | Gold | Stamped | Tin | Signal | Flash | ||
Amphenol ICC (FCI) | Crimp | Female Socket | Phosphor Bronze | 24 AWG | 28 AWG | Insulation Support | Gold or Gold GXT™ | Stamped | Tin | Signal | 30 Áin | 0.76 Ám |
