B8065 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

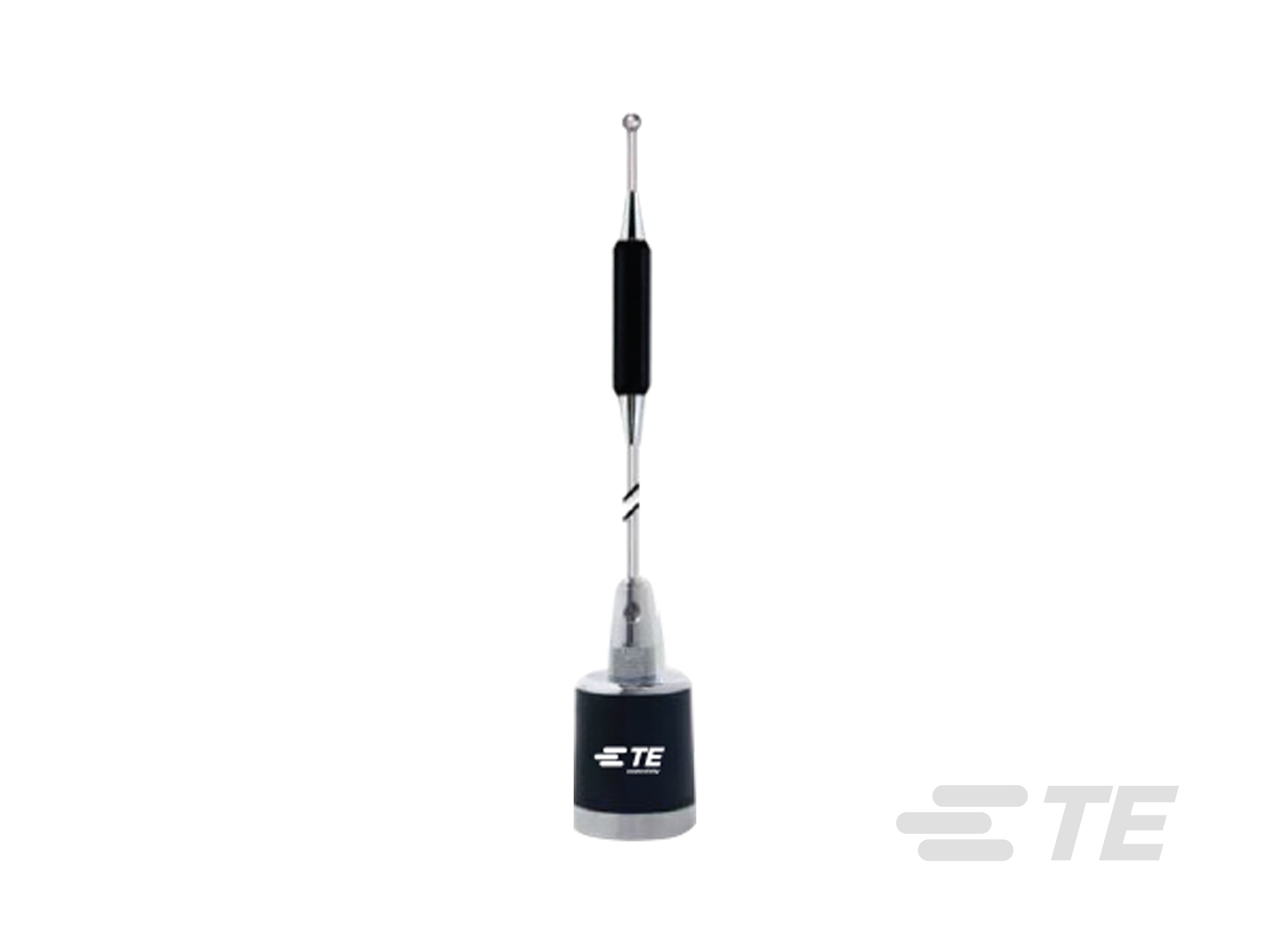

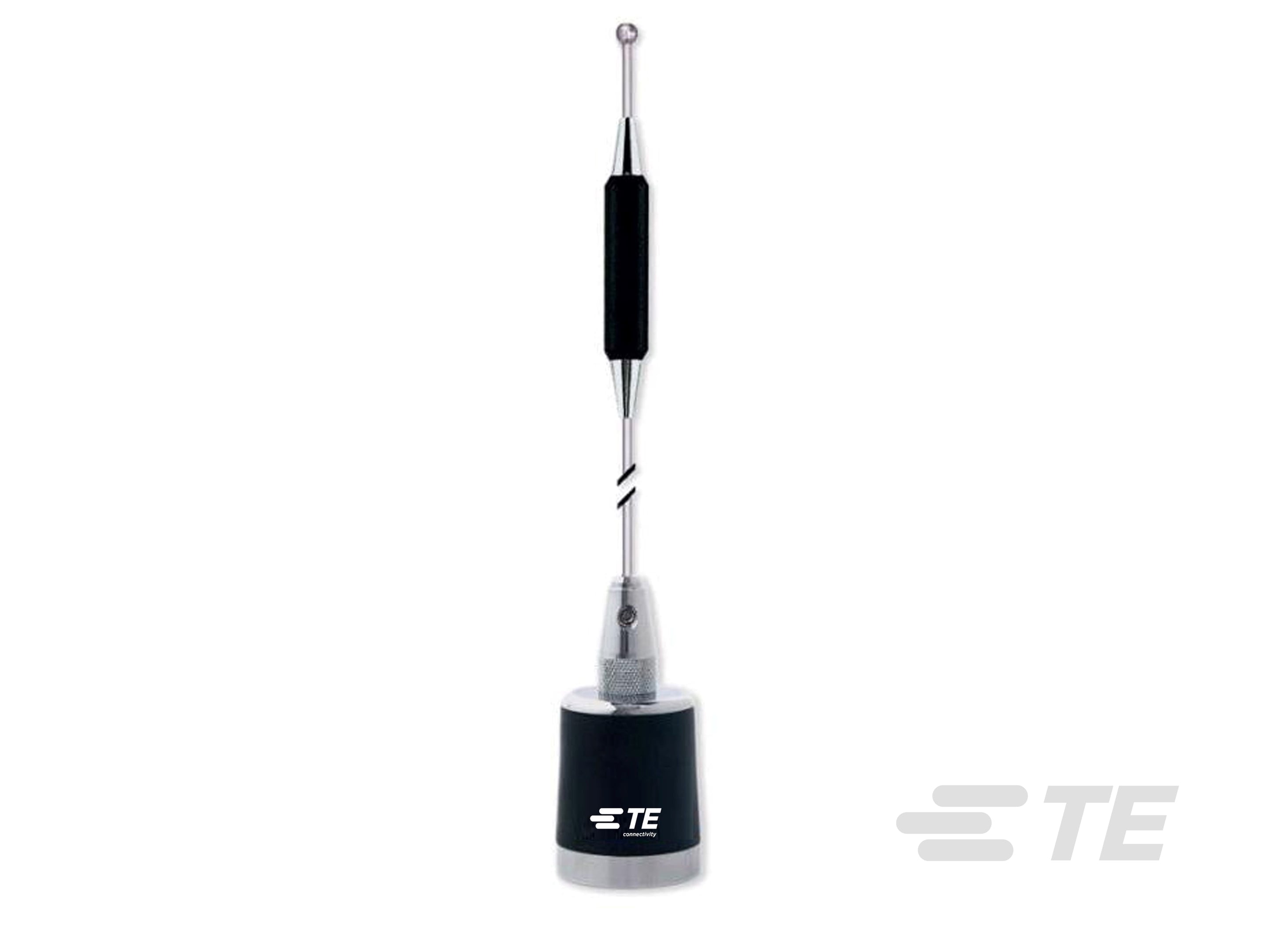

WHIP,MC,CC,806-866 MHZ TUN,5,CH,GP,

Part	Antenna Type	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Mounting Type	Number of Bands	Termination	Frequency (Center/Band)	Frequency Range [Min]	Frequency Range [Max]	Height (Max) [z]	Height (Max) [Max] [z]	VSWR	Gain	Power - Max [Max]	Height (Max) [Max] [z]	Ingress Protection
TE Connectivity AMP Connectors B8065C	Whip Straight	1 GHz	UHF	300 MHz	Base Mount	1	NMO	836 MHz	806 MHz	866 MHz	406.4 mm	16 in	2	5 dBi
TE Connectivity AMP Connectors B8065CNS	Whip Straight	1 GHz	UHF	300 MHz	Base Mount	1	NMO	836 MHz	806 MHz	866 MHz		18 in	2	5 dBi	200 W	457.2 mm
TE Connectivity AMP Connectors B8065CNS	Whip Straight	1 GHz	UHF	300 MHz	Base Mount	1	NMO	836 MHz	806 MHz	866 MHz		18 in	2	5 dBi	200 W	457.2 mm
TE Connectivity AMP Connectors B8065CR	Whip Straight	1 GHz	UHF	300 MHz	Base Mount	1	NMO	836 MHz	806 MHz	866 MHz	406.4 mm	16 in		5 dBi			IP67
TE Connectivity AMP Connectors B8065C	Whip Straight	1 GHz	UHF	300 MHz	Base Mount	1	NMO	836 MHz	806 MHz	866 MHz	406.4 mm	16 in	2	5 dBi
TE Connectivity AMP Connectors B8065CN	Whip Straight	1 GHz	UHF	300 MHz	Base Mount	1	NMO	836 MHz	806 MHz	866 MHz		18 in	2	5 dBi	200 W	457.2 mm
TE Connectivity AMP Connectors B8065CN	Whip Straight	1 GHz	UHF	300 MHz	Base Mount	1	NMO	836 MHz	806 MHz	866 MHz		18 in	2	5 dBi	200 W	457.2 mm
TE Connectivity AMP Connectors B8065CNR	Whip Straight	1 GHz	UHF	300 MHz	Base Mount	1	NMO	836 MHz	806 MHz	866 MHz		18 in	2	5 dBi	200 W	457.2 mm
TE Connectivity AMP Connectors B8065CR	Whip Straight	1 GHz	UHF	300 MHz	Base Mount	1	NMO	836 MHz	806 MHz	866 MHz	406.4 mm	16 in		5 dBi			IP67
TE Connectivity AMP Connectors B8065CNR	Whip Straight	1 GHz	UHF	300 MHz	Base Mount	1	NMO	836 MHz	806 MHz	866 MHz		18 in	2	5 dBi	200 W	457.2 mm
