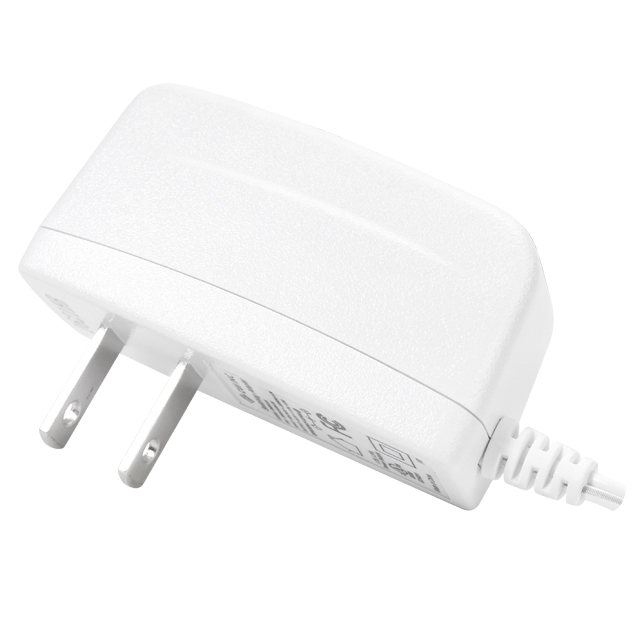

Wall Mount AC Adapters ac-dc, 5 Vdc, 1.2 A, SW, wall-plug, NA, P6 center pos plug, level VI, white
Wall Mount AC Adapters ac-dc, 5 Vdc, 1.2 A, SW, wall-plug, NA, P6 center pos plug, level VI, white
Wall Mount AC Adapters ac-dc, 5 Vdc, 1.2 A, SW, wall-plug, NA, P6 center pos plug, level VI, white
| Part | Polarization | Current - Output (Max) [Max] | Form | Voltage - Output | Input Type | Voltage - Input [Max] | Voltage - Input [Min] | Input Connector | Cord Length | Cord Length | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Standard Number | Approval Agency | Output Connector [diameter] | Output Connector [x] | Output Connector | Region Utilized | No Load Power Consumption | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Applications | Power (Watts) | Output Connector [custom] | Output Connector [custom] | Output Connector [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Positive Center | 1.2 A | Wall Mount | 5 V | Fixed Blade | 264 VAC | 90 VAC | NEMA 1-15P | 1.5 m | 59 in | 40 °C | 0 °C | Level VI | 62368-1 | cUL cULus FCC PSE | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | North America | 75 mW | 2.62 " | 2.02 " | 1 " | 66.5 mm | 25.4 mm | 51.3 mm | ITE (Commercial) | 6 W | |||
CUI Inc. | Positive Center | 1.2 A | Wall Mount | 5 V | Fixed Blade | 264 VAC | 90 VAC | NEMA 1-15P | 1.5 m | 59 in | 40 °C | 0 °C | Level VI | 62368-1 | cUL cULus FCC PSE | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | North America | 75 mW | 2.62 " | 2.02 " | 1 " | 66.5 mm | 25.4 mm | 51.3 mm | ITE (Commercial) | 6 W | |||
CUI Inc. | Positive Center | 500 mA | Wall Mount | 12 V | Fixed Blade | 264 VAC | 90 VAC | NEMA 1-15P | 1.5 m | 59 in | 40 °C | 0 °C | Level VI | 62368-1 | cUL cULus FCC PSE | Barrel Plug R/A | North America | 75 mW | 2.62 " | 2.02 " | 1 " | 66.5 mm | 25.4 mm | 51.3 mm | ITE (Commercial) | 6 W | 9.5 mm | 5.5 mm | 2.1 mm | ||
CUI Inc. | Positive Center | 1 A | Wall Mount | 5 V | Fixed Blade | 264 VAC | 90 VAC | NEMA 1-15P | 1.5 m | 59 in | 40 °C | 0 °C | Level VI | 62368-1 | cUL cULus FCC PSE | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | North America | 75 mW | 2.62 " | 2.02 " | 1 " | 66.5 mm | 25.4 mm | 51.3 mm | ITE (Commercial) | 5 W |
