725-013 Series
Manufacturer: EDAC Inc.
Beta
⌘K

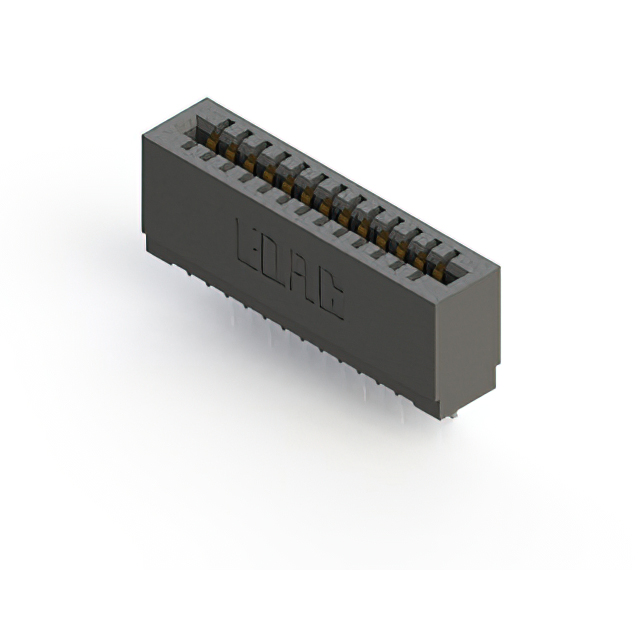

CONN EDGE SINGLE FML 13POS 0.100
| Part | Material - Insulation | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Termination | Mounting Type | Gender | Number of Rows | Color | Contact Type | Number of Positions | Contact Material | Contact Finish | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | -40 C | 105 ░C | Non Specified - Single Edge | 30 Áin | 0.76 Ám | Single | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit Wire Wrap | Through Hole | Female | 1 | Black | Cantilever | 13 | Copper Alloy | Gold | 13 |
