1761184 Series

Catalog

16 SDL FLAT PLUG ASSY

Part	Shield Material	Cable Type	Wire Gauge	Current Rating (Amps)	Connector Type	Color	Number of Positions/Contacts	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Housing Material	Voltage Rating	Features	Length [x]	Length [x]	Shielding	Termination
TE Connectivity Raychem Cable Protection 5-1761184-6	Brass	Ribbon	24 AWG	1.5 A	Plug SDL	Clear Gray	16 Positions	Copper Alloy	50 µin	1.27 µm	Gold	Polycarbonate (PC)	30 VDC	Keyed	22.61 mm	0.89 in	Shielded	Crimp

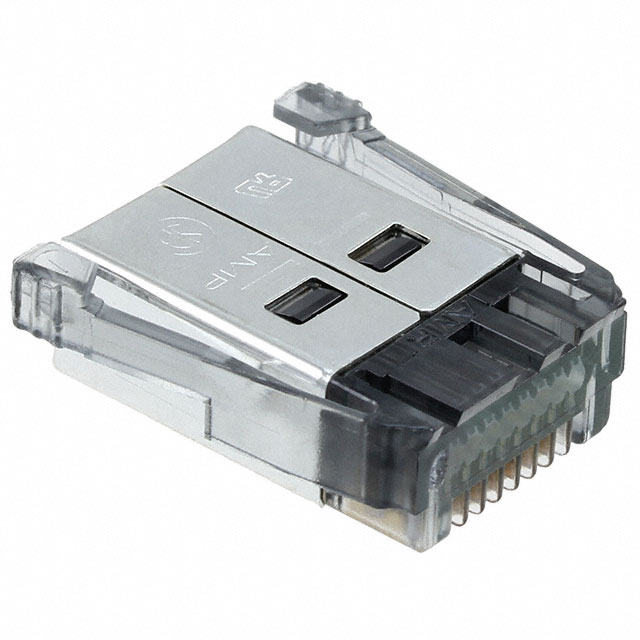

TE Connectivity Raychem Cable Protection 5-1761184-3	Brass	Ribbon	24 AWG	1.5 A	Plug SDL	Clear Gray	8 Positions	Copper Alloy	50 µin	1.27 µm	Gold	Polycarbonate (PC)	30 VDC	Keyed	22.61 mm	0.89 in	Shielded	Crimp

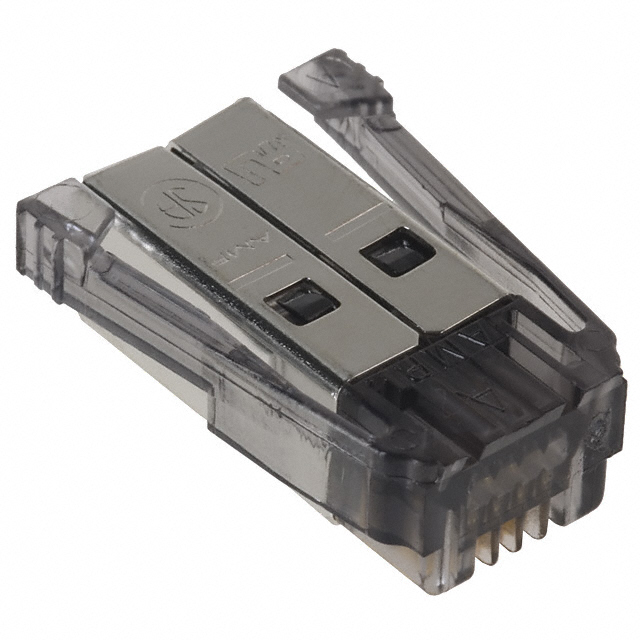

TE Connectivity Raychem Cable Protection 5-1761184-1	Brass	Ribbon	24 AWG	1.5 A	Plug SDL	Clear Gray	4 Contacts	Copper Alloy	50 µin	1.27 µm	Gold	Polycarbonate (PC)	30 VDC	Keyed	22.61 mm	0.89 in	Shielded	Crimp

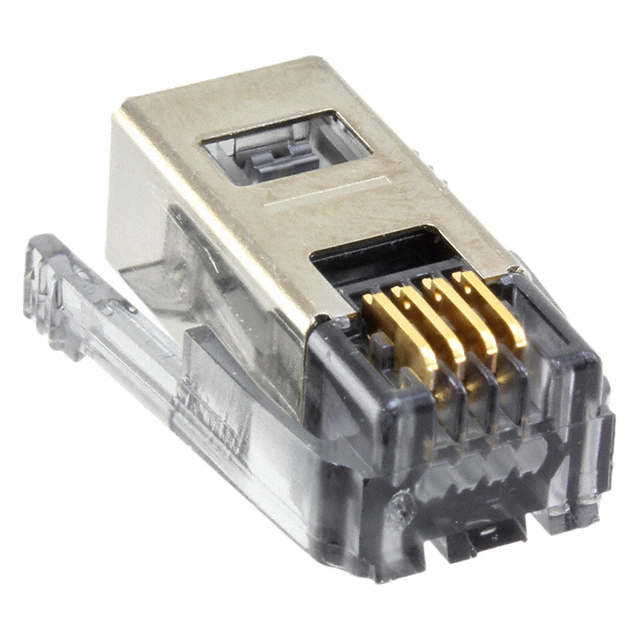

TE Connectivity Raychem Cable Protection 4-1761184-1	Brass	Ribbon	24 AWG	1.5 A	Plug SDL	Clear Gray	4 Contacts	Copper Alloy	50 µin	1.27 µm	Gold	Polycarbonate (PC)	30 VDC	Keyed	22.61 mm	0.89 in	Shielded	Crimp

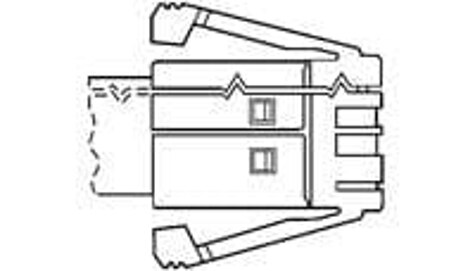

TE Connectivity Raychem Cable Protection 5-1761184-2	Brass	Ribbon	24 AWG	1.5 A	Plug SDL	Clear Gray	6 Contacts	Copper Alloy	50 µin	1.27 µm	Gold	Polycarbonate (PC)	30 VDC	Keyed	22.61 mm	0.89 in	Shielded	Crimp
