Trenchstop IGBT4 - E4 Series
Manufacturer: INFINEON
Beta
⌘K

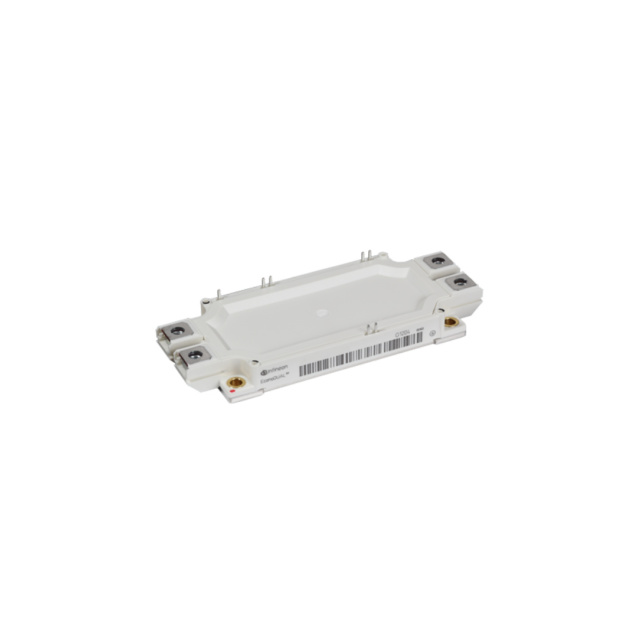

THE FF225R12ME4P_B11 IS A DUAL IGBT4 - E4 MODULE IN A ECONODUAL™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 225 A.
| Part | Input Capacitance (Cies) @ Vce | IGBT Type | Package / Case | Current - Collector Cutoff (Max) [Max] | Mounting Type | Input | Operating Temperature [Min] | Operating Temperature [Max] | NTC Thermistor | Vce(on) (Max) @ Vge, Ic | Current - Collector (Ic) (Max) [Max] | Supplier Device Package | Voltage - Collector Emitter Breakdown (Max) [Max] | Configuration | Power - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 13 nF | Trench Field Stop | Module | 3 mA | Chassis Mount | Standard | -40 C | 150 °C | 2.15 V | 450 A | Module | 1200 V | Half Bridge | 20 mW |
