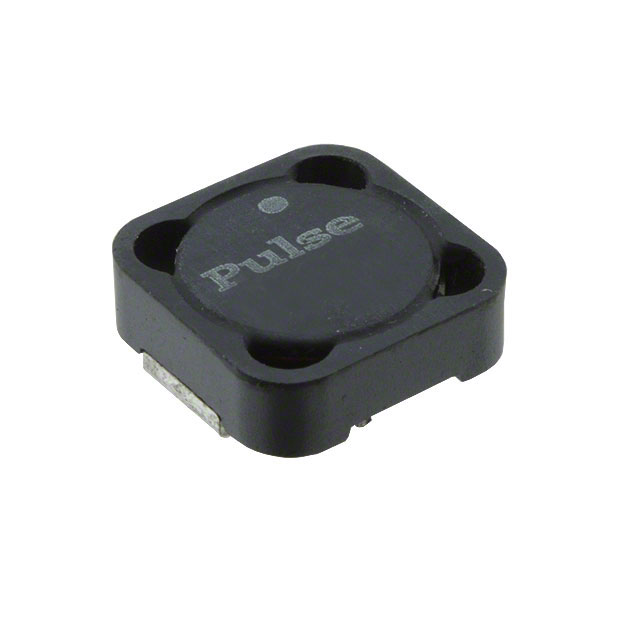

P1168 Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD SHD DRUM CORE IND
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Shielding | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Frequency - Self Resonant | Tolerance | Inductance Frequency - Test | Mounting Type | Type | Inductance | DC Resistance (DCR) [Max] | Current - Saturation (Isat) | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 12.24 mm | 12.24 mm | 0.482 in | 0.482 " | Shielded | 4.5 mm | 0.177 in | 2.2 MHz | 20 % | 100 kHz | Surface Mount | Wirewound | 560 µH | 1.623 Ohm | 530 mA | 0.53 A | 130 °C | -40 C | Nonstandard |
